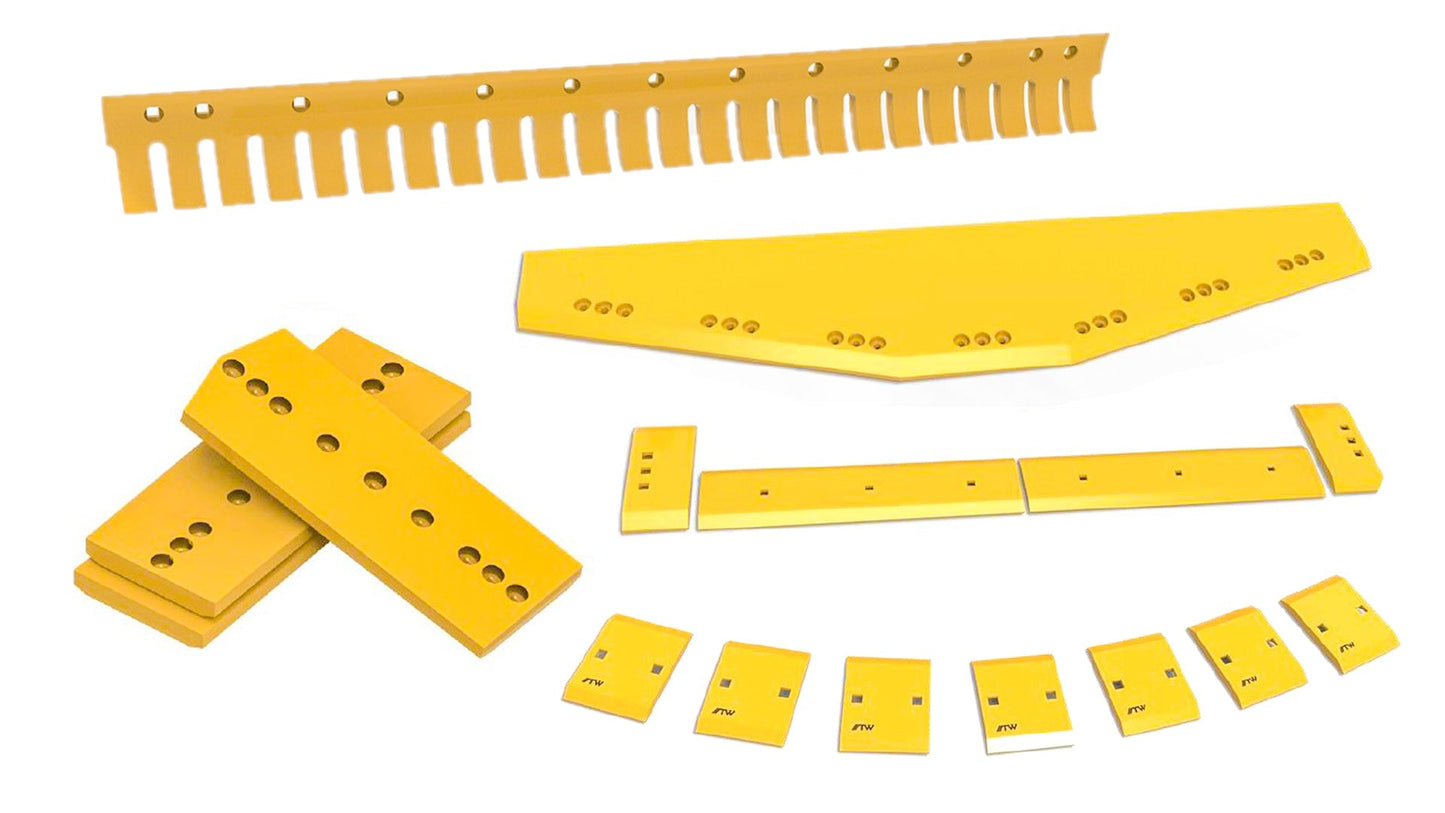

CUTTING EDGE, CURVED - L=2134mm

Wide range of available as Japanese high quality products

Equipment : Motor Grader
KMVL P/N :
01) GD-ALL-BLXL1315-5/8-CE
　Thickness : 13mm
　Width : 152mm
　Length : 2134mm
　Bolt Size : 5/8-in Plow bolt
　Bolt Hole : 15H
　*Boron steel - HB500
02) GD-ALL-BLXL1615-3/4-CE
　Thickness : 16mm
　Width : 152mm
　Length : 2134mm
　Bolt Size : 3/4-in Plow bolt
　Bolt Hole : 15H
　*Boron steel - HB500
03)GD-ALL-BLXL1615-5/8-CE
　Thickness : 16mm
　Width : 152mm
　Length : 2134mm
　Bolt Size : 5/8-in Plow bolt
　Bolt Hole : 15H
　*Boron steel - HB500
04)GD-ALL-BLXL1615W-5/8-CE
　Thickness : 16mm
　Width : 203mm
　Length : 2134mm
　Bolt Size : 5/8-in Plow bolt
　Bolt Hole : 15H
　*Boron steel - HB500
05)GD-ALL-BLXL1915W-3/4-CE
　Thickness : 19mm
　Width : 203mm
　Length : 2134mm
　Bolt Size : 3/4-in Plow bolt
　Bolt Hole : 15H
　*Boron steel - HB500
Model :
・GD-ALL-BLXL1315-5/8-CE
[KOMATSU]
GD40HT / GD605 / GD655 / GD675 / GD705 / GD755
[CAT/MITSUBISHI]
MG500
・GD-ALL-BLXL1615-3/4-CE
[CAT/MITSUBISHI]
12M / 14M
・GD-ALL-BLXL1615-5/8-CE
[KOMATSU]
GD40HT / GD605 / GD655 / GD675 / GD705 / GD755
[CAT/MITSUBISHI]
MG500
・GD-ALL-BLXL1615W-5/8-CE
[KOMATSU]
GD40HT / GD605 / GD655 / GD675 / GD705 / GD755
[CAT/MITSUBISHI]
MG500
・GD-ALL-BLXL1915W-3/4-CE
[CAT/MITSUBISHI]
120 / 140
Parts number :
・GD-ALL-BLXL1315-5/8-CE
[KOMATSU]
234-70-12192-15H[CAT/MITSUBISHI]
60681-08700 / 8D2787 (7T1645-9H)
・GD-ALL-BLXL1615-3/4-CE
[KOMATSU]
[CAT/MITSUBISHI]
9J3658 (7T1626-9H)
・GD-ALL-BLXL1615-5/8-CE
[KOMATSU]
234-70-12193-15H[CAT/MITSUBISHI]
60681-00300 / 62681-04500 / 5D9554
・GD-ALL-BLXL1615W-5/8-CE
[KOMATSU]
234-70-12193W-15H[CAT/MITSUBISHI]
5D9561 (7T1643-9H)
・GD-ALL-BLXL1915W-3/4-CE
[KOMATSU]
234-70-12670[CAT/MITSUBISHI]
7D1577
Weight :
・GD-ALL-BLXL1315-5/8-CE : 29 KGS
・GD-ALL-BLXL1615-3/4-CE : 34.2 KGS
・GD-ALL-BLXL1615-5/8-CE : 34 KGS
・GD-ALL-BLXL1615W-5/8-CE : 49 KGS
・GD-ALL-BLXL1915W-3/4-CE : 59 KGS

Remarks :

We will propose and provide the best way for the machine. Also, we are possible to provide our products as OEM, ODM and private brand.
