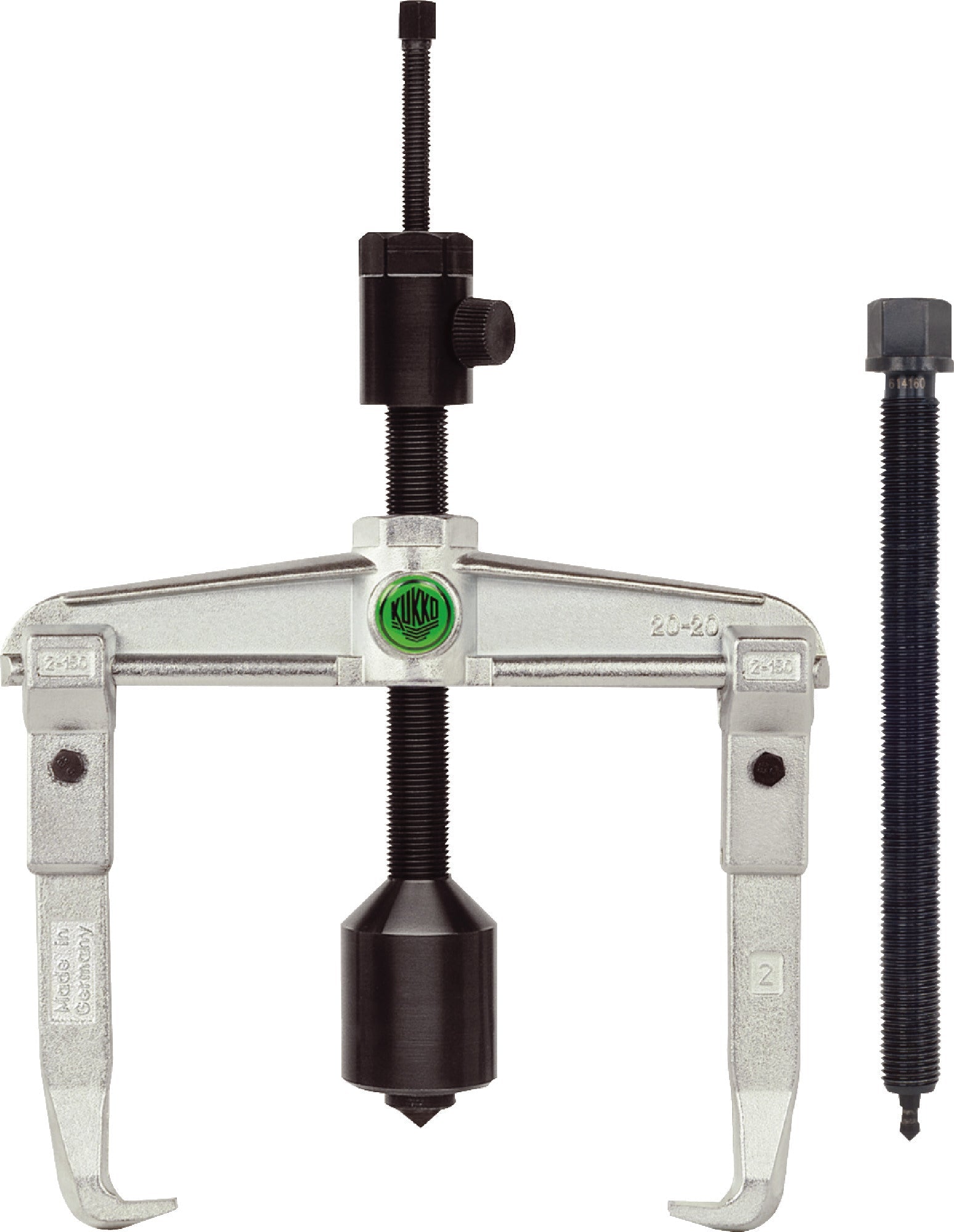

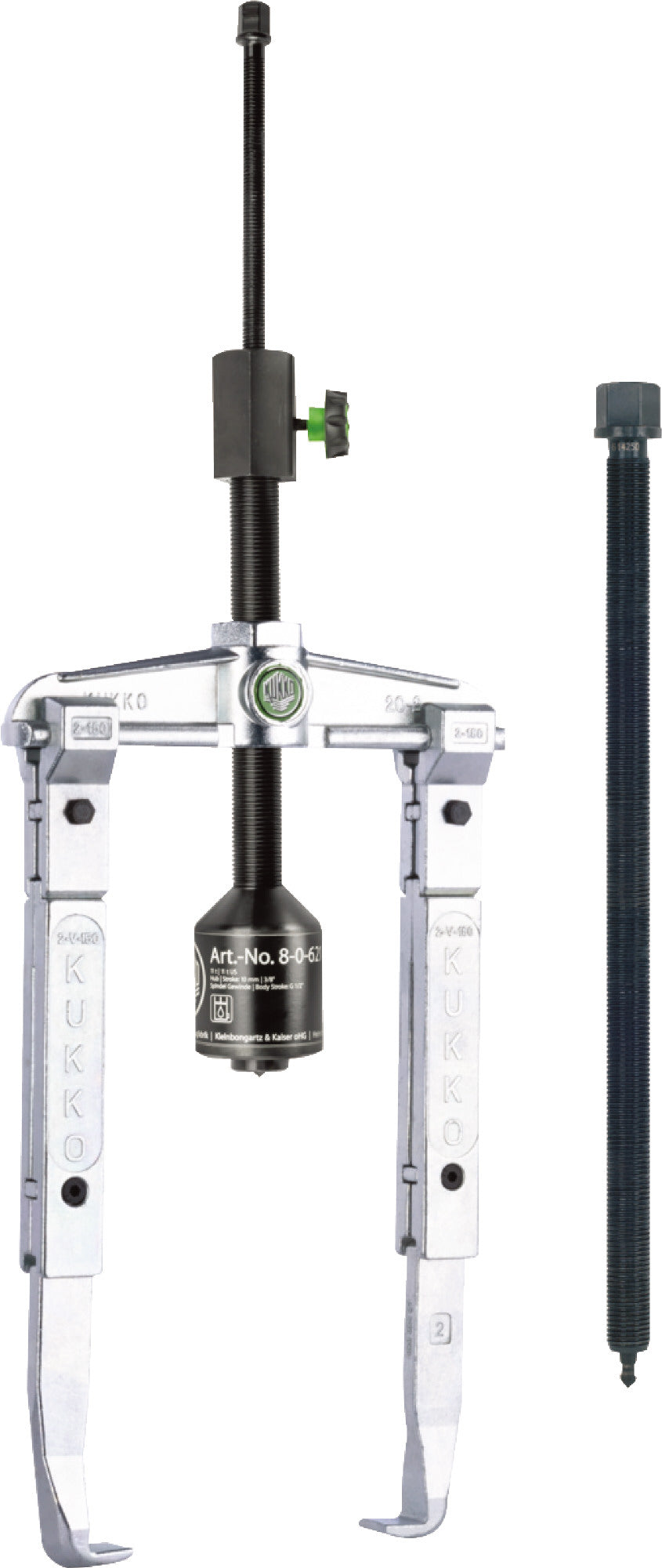

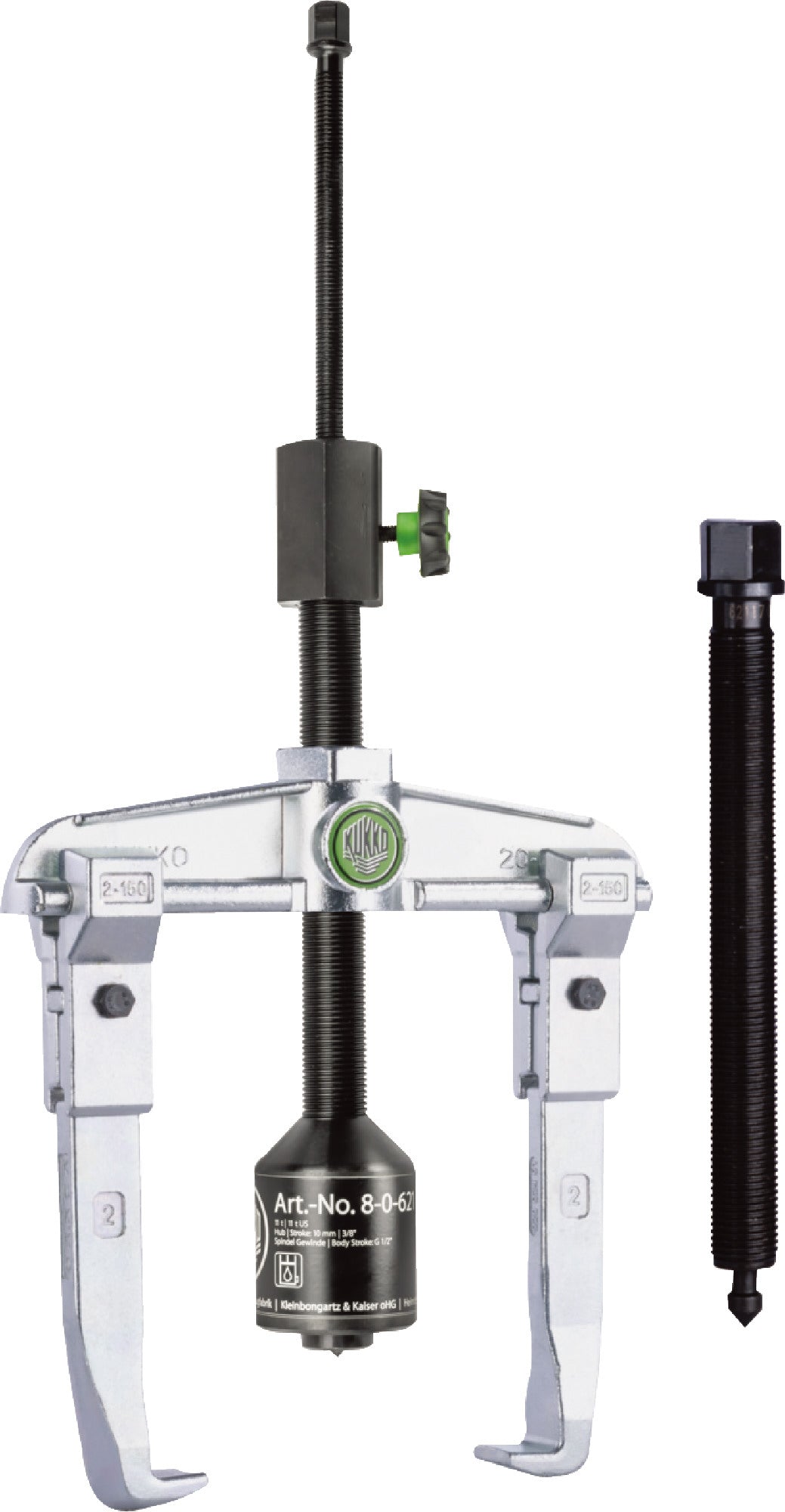

KUKKO - 2-jaw Pullers with Long Hydraulic Spindle

Wide range of available as Japanese high quality products

Equipment : KUKKO - 2-jaw Pullers with Long Hydraulic Spindle
KMVL P/N & Description : Below

Parts number	External Pulling Capacity (mm)	Arm Length (mm)	Maximum Load (t)	Spindle Parts Number
20-2-B	40-160	150	7	8-01
20-20-B	40-200	200	7	8-01
20-3-B	65-250	200	10	8-02
20-30-B	65-350	200	10	8-02
20-4-B	80-520	300	15	8-1-B
20-40-B	80-650	200	15	8-1-B

Description :
• For removing bearings, gears, discs, etc
• Grease hydraulics.
• Standard pulling hook.
• Parallel pulling hooks in every position, even with full load.
• Pulling hooks with infinitely variable adjustment on the cross-beam.
• Hydraulic and mechanical pressure screw.

Advantage :
• Easy and even pulling for particularly tight parts.
• Variable reach thanks to jaw extensions, available up to a puller size of -30.
• Optional conversion to various jaw types for mechanical use.
• Turning the pulling hooks enables them to be used both internally and externally.
• Suitable for pulling asymmetric workpieces.
