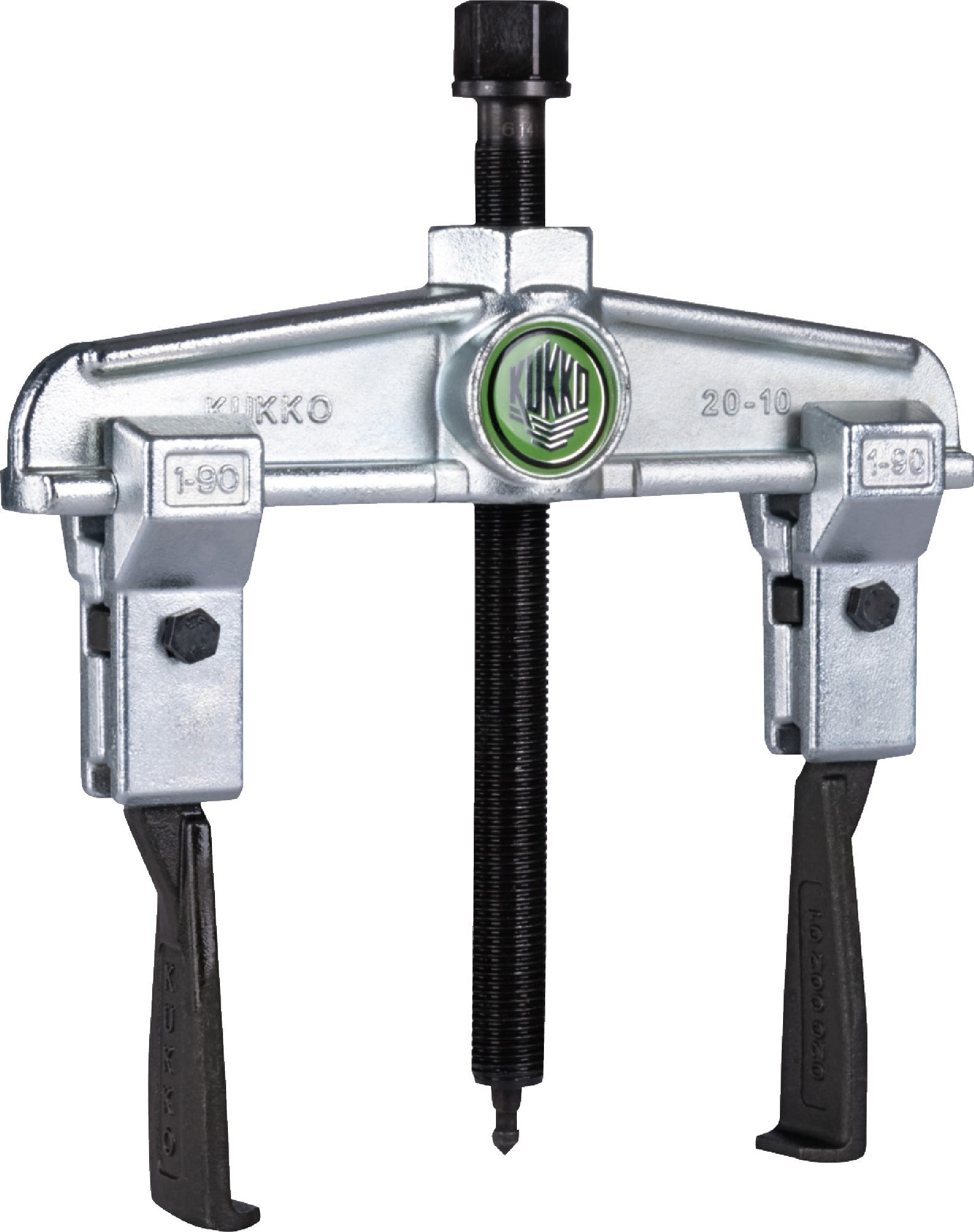

KUKKO - 2-jaw Pullers with Extremely Narrow Jaws

Wide range of available as Japanese high quality products

Equipment : KUKKO - 2-jaw Pullers with Extremely Narrow Jaws
KMVL P/N & Description : Below

Parts number	External Pulling Capacity (mm)	Arm Length (mm)	Maximum Load (t)	Spindle Parts Number
20-1-S-T	30-90	100	20	614160
20-10-S-T	30-120	100	15	614160

Description :
• For removing gears, bearings, sprockets, synchronizer bodies, etc

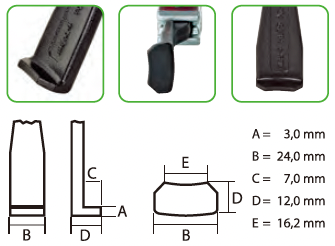

• Extra-thin trapezoidal pulling hooks.
• Parallel pulling hooks in every position, even with full load.
• Pulling hooks with infinitely variable adjustment on the cross-beam.
• Optimal adjustment of the spindle to the shaft with 2-sided spindle tip.
• Mechanical pressure screw.

Advantage :
• The narrow, trapezoidal pulling jaws are suitable for extremely narrow, difficult to access places.
• Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
• Turning the pulling hooks enables them to be used both internally and externally.
• Suitable for pulling asymmetric workpieces.
• Spindle head band prevents the wrench from slipping off.
