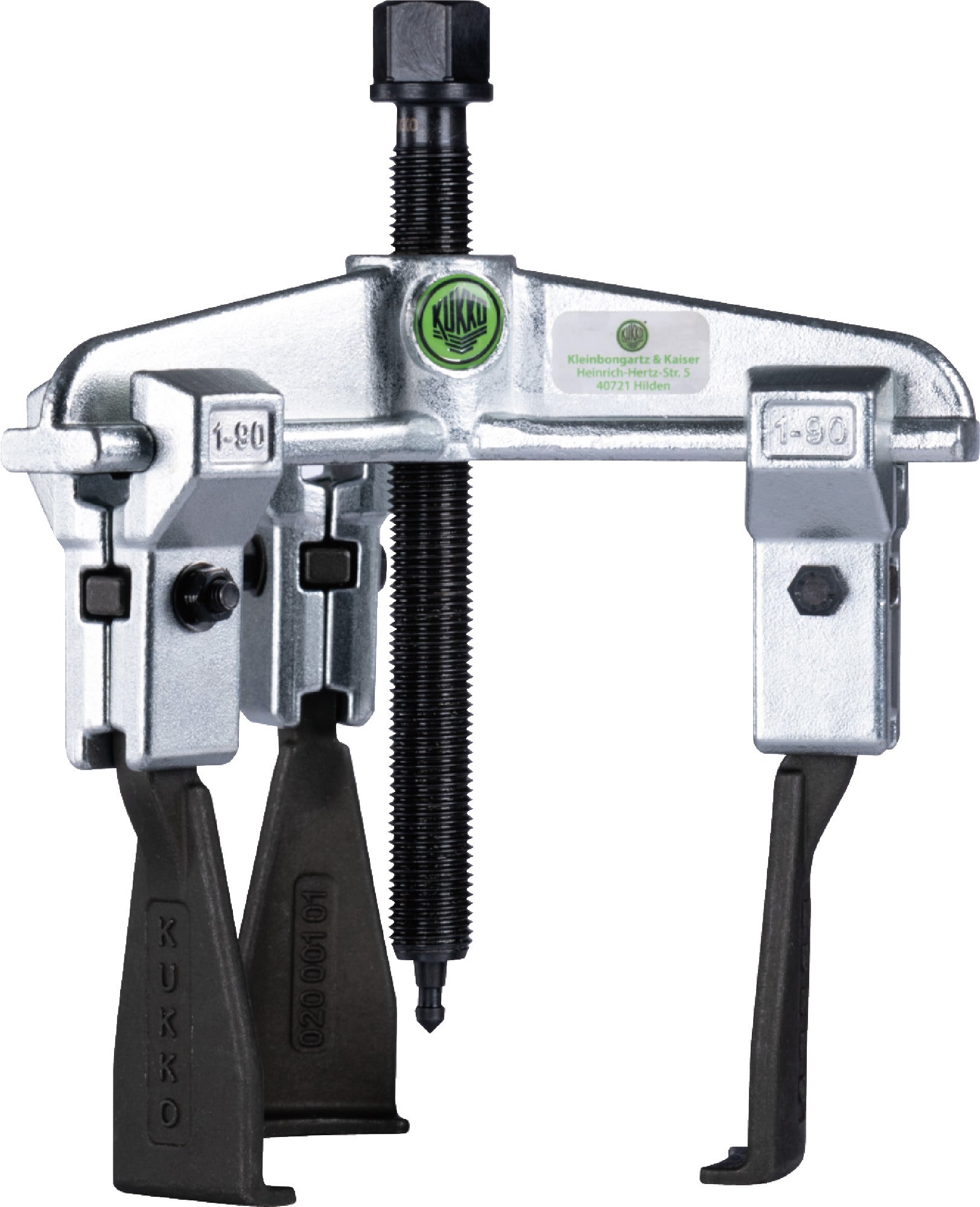

KUKKO - 3-jaw Pullers with Narrow Jaws

Wide range of available as Japanese high quality products

Equipment : KUKKO - 3-jaw Pullers with Narrow Jaws
KMVL P/N & Description : Below

Parts number	External Pulling Capacity (mm)	Arm Length (mm)	Maximum Load (t)	Spindle Parts Number
30-1-S	27-90	100	3	614135
30-10-S	27-130	100	3	614135
30-2-S	35-160	150	5	621220
30-20-S	35-200	150	5	621220
30-3-S	46-250	200	7	626300

Description :
• For removing bearings, gears, discs, etc
• Thin pulling hooks.
• Parallel pulling hooks in every position, even with full load.
• Pulling hooks with infinitely variable adjustment on the cross-beam.
• Optimal adjustment of the spindle to the shaft with 2-sided spindle tip.
• Mechanical pressure screw.

Advantage :
• The thin pulling hooks are suitable for narrow, difficult-to-access locations.
• Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
• Turning the pulling hooks enables them to be used both internally and externally.
• Suitable for pulling asymmetric workpieces.
• Spindle head band prevents the wrench from slipping off.
