PINACO / Dong Nai CMF Battery - B24

Dong Nai CMF (Calcium Maintenance Free) Battery

The Dong Nai maintenance-free battery requires no maintenance throughout its service life.
It utilizes continuous casting technology, ensuring high-quality and uniform lead plates.
Its lead alloy composition and special additives make it highly suitable for engine starting applications.

 □ Battery parts number and Outstanding Features

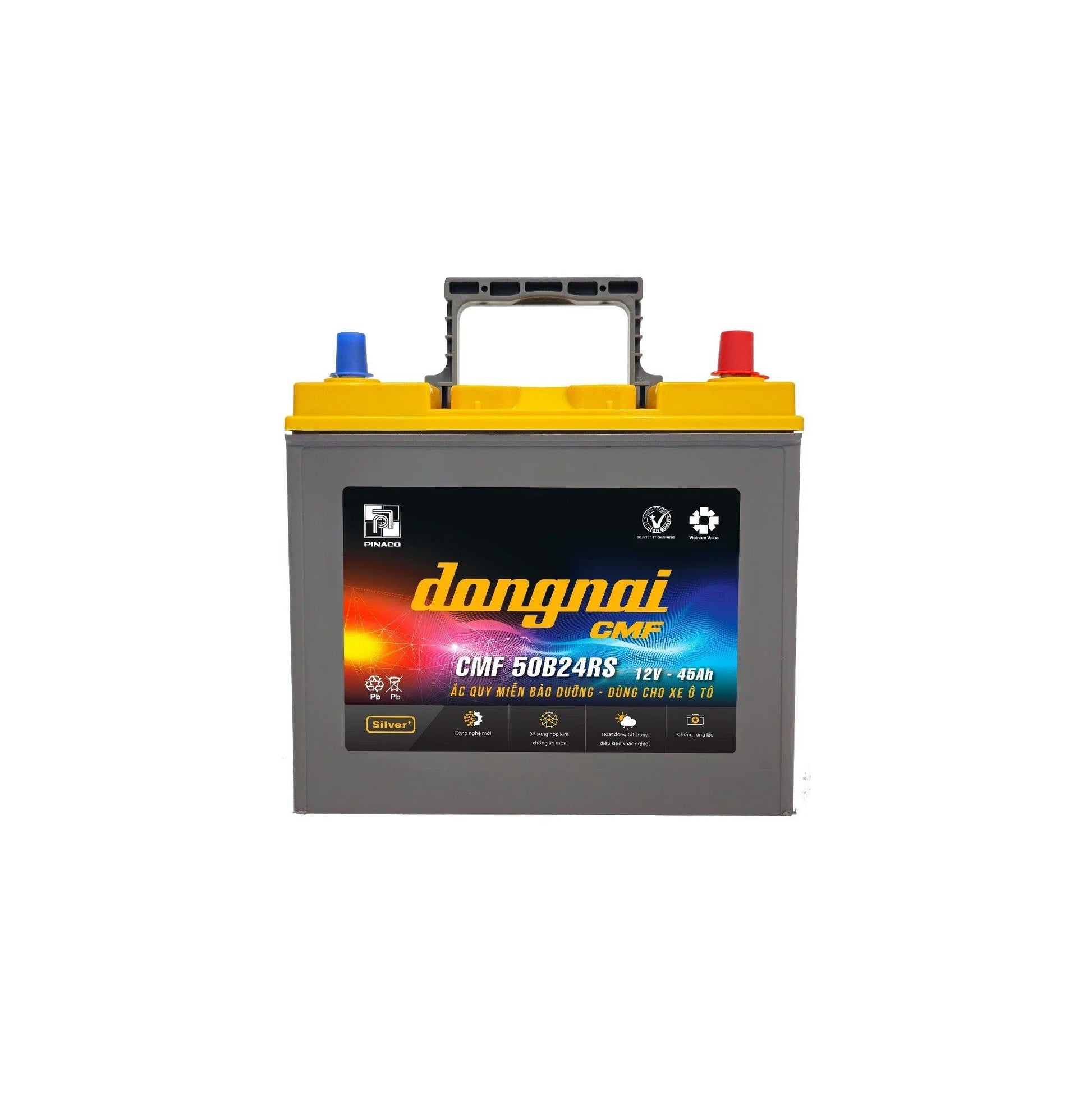

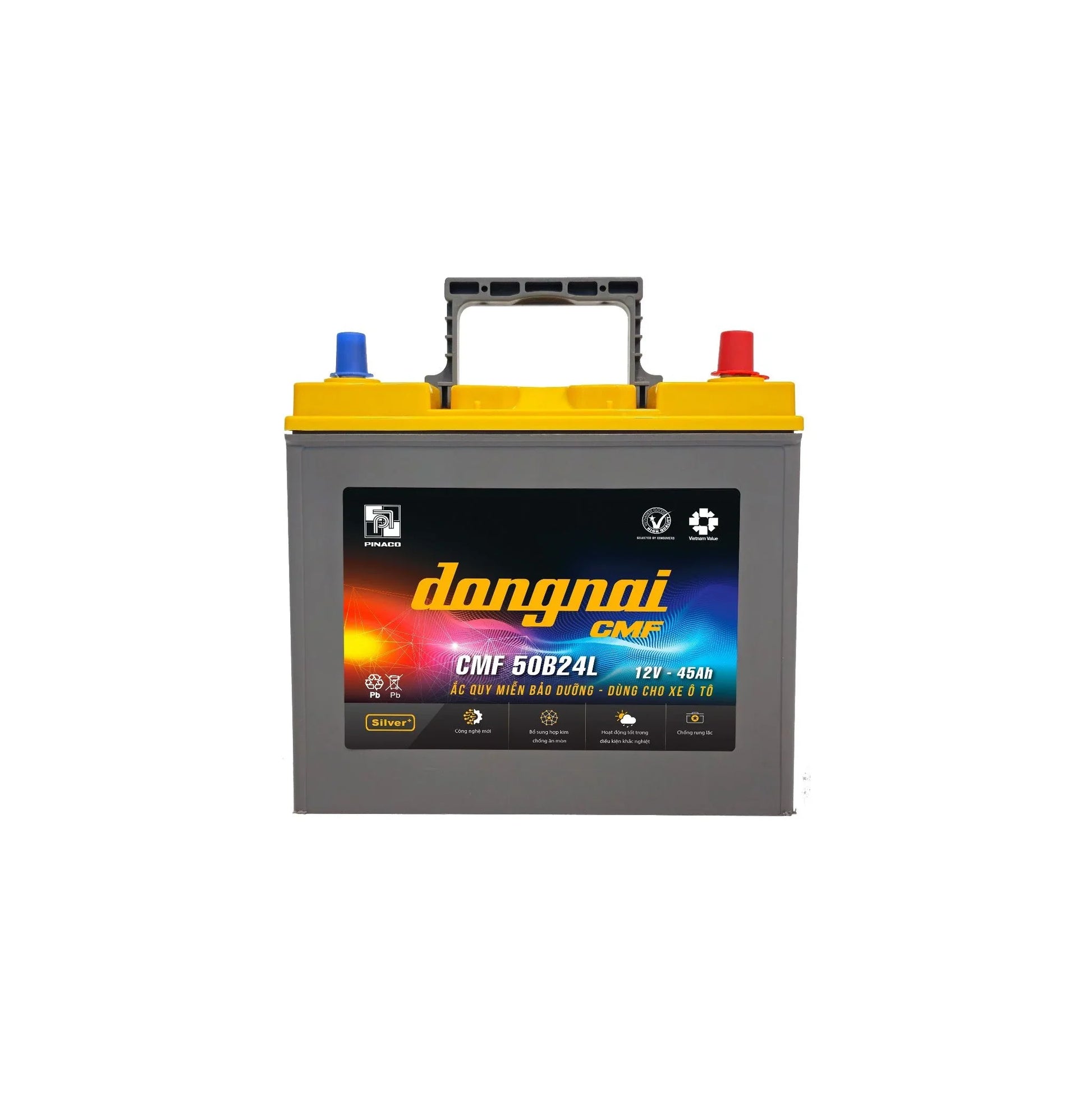

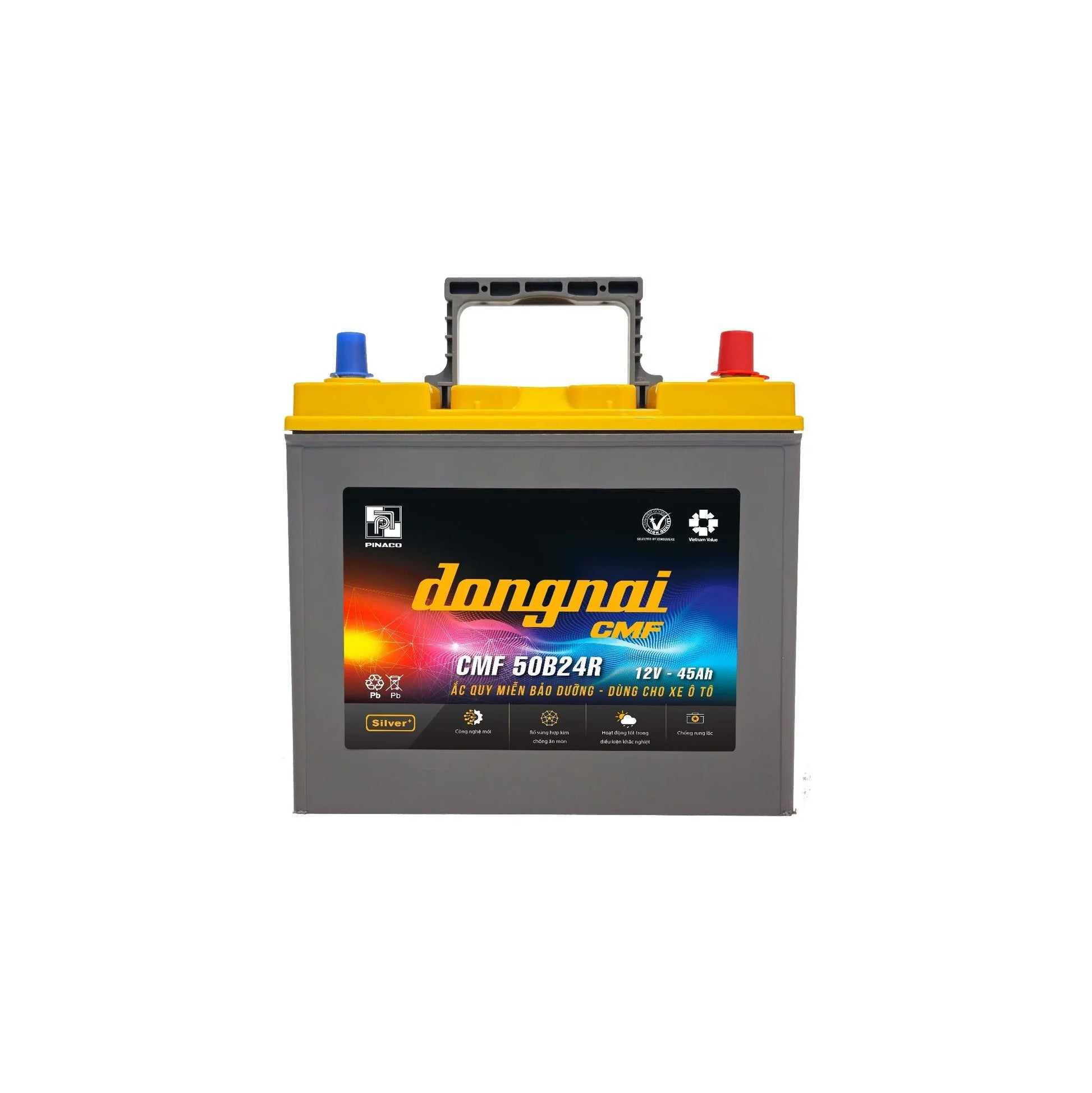

・Battery parts number : CMF 50B24 / 12V-45Ah(20Hr)

KMVL code	Parts number
BTB24L-50MF-DN	CMF 50B24L
BTB24LS-50MF-DN	CMF 50B24LS
BTB24R-50MF-DN	CMF 50B24R
BTB24RS-50MF-DN	CMF 50B24RS

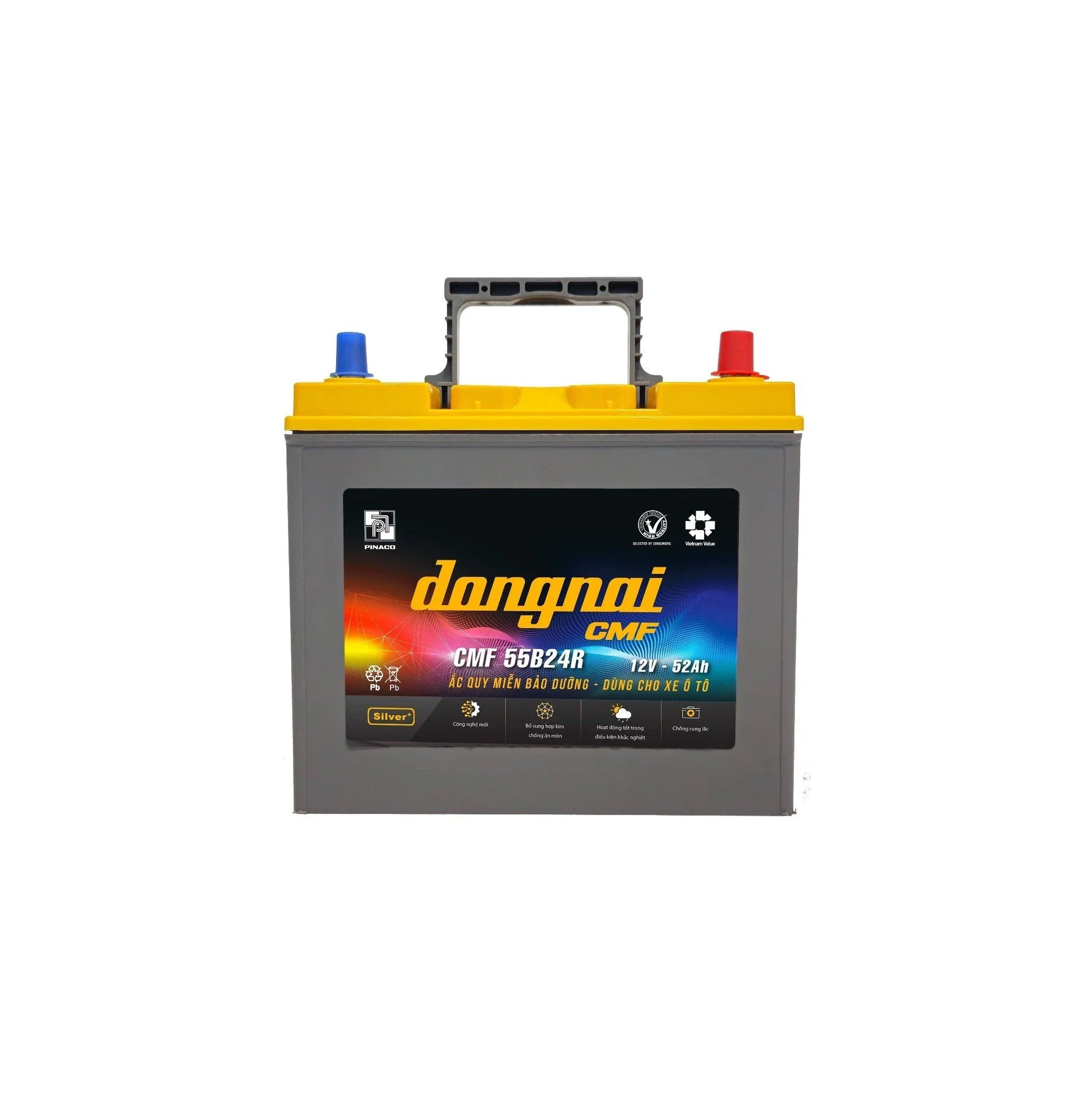

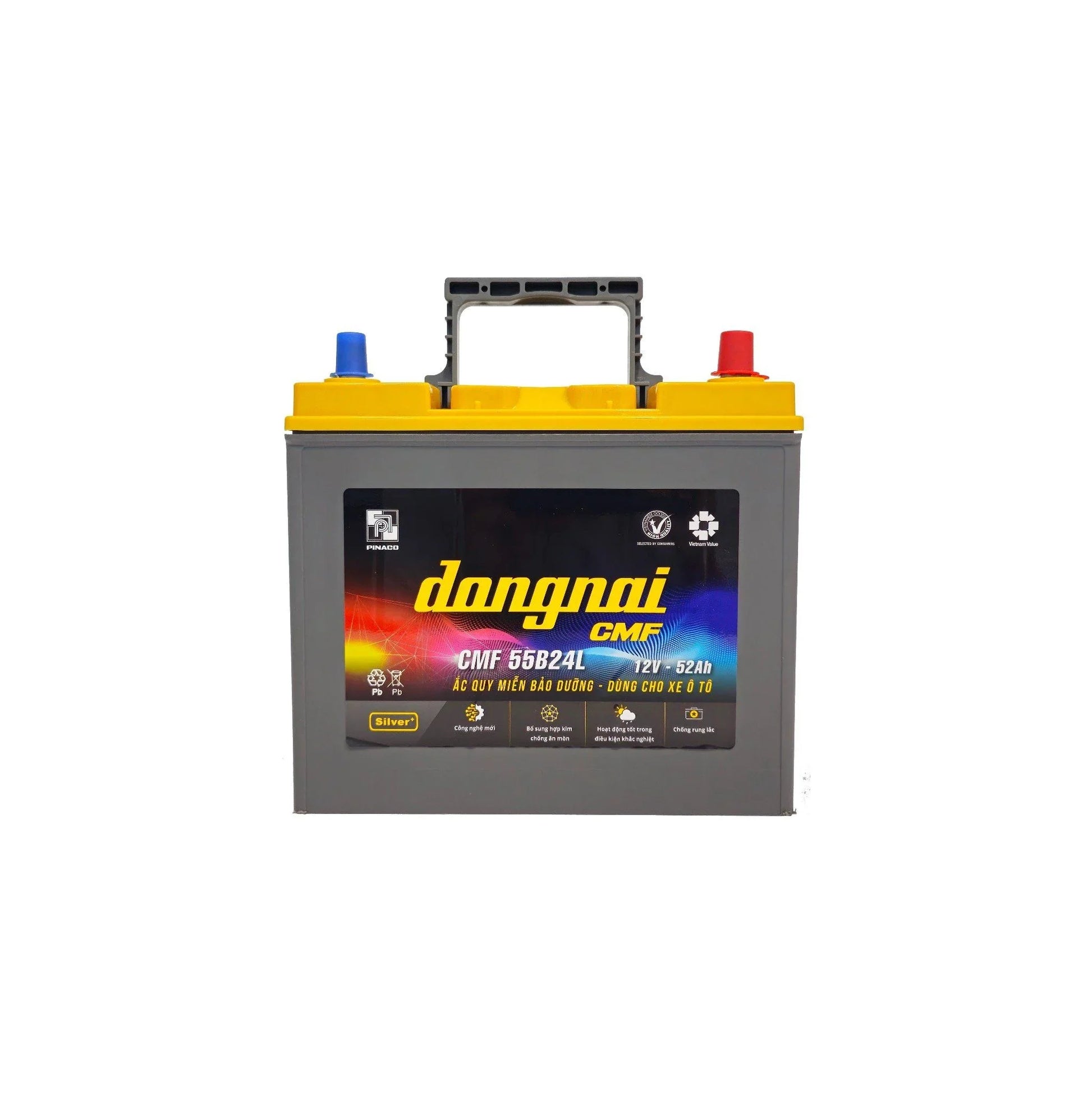

・Battery parts number : CMF 55B24 / 12V-52Ah(20Hr)

KMVL code	Parts number
BTB24L-55MF-DN	CMF 55B24L
BTB24LS-55MF-DN	CMF 55B24LS
BTB24R-55MF-DN	CMF 55B24R

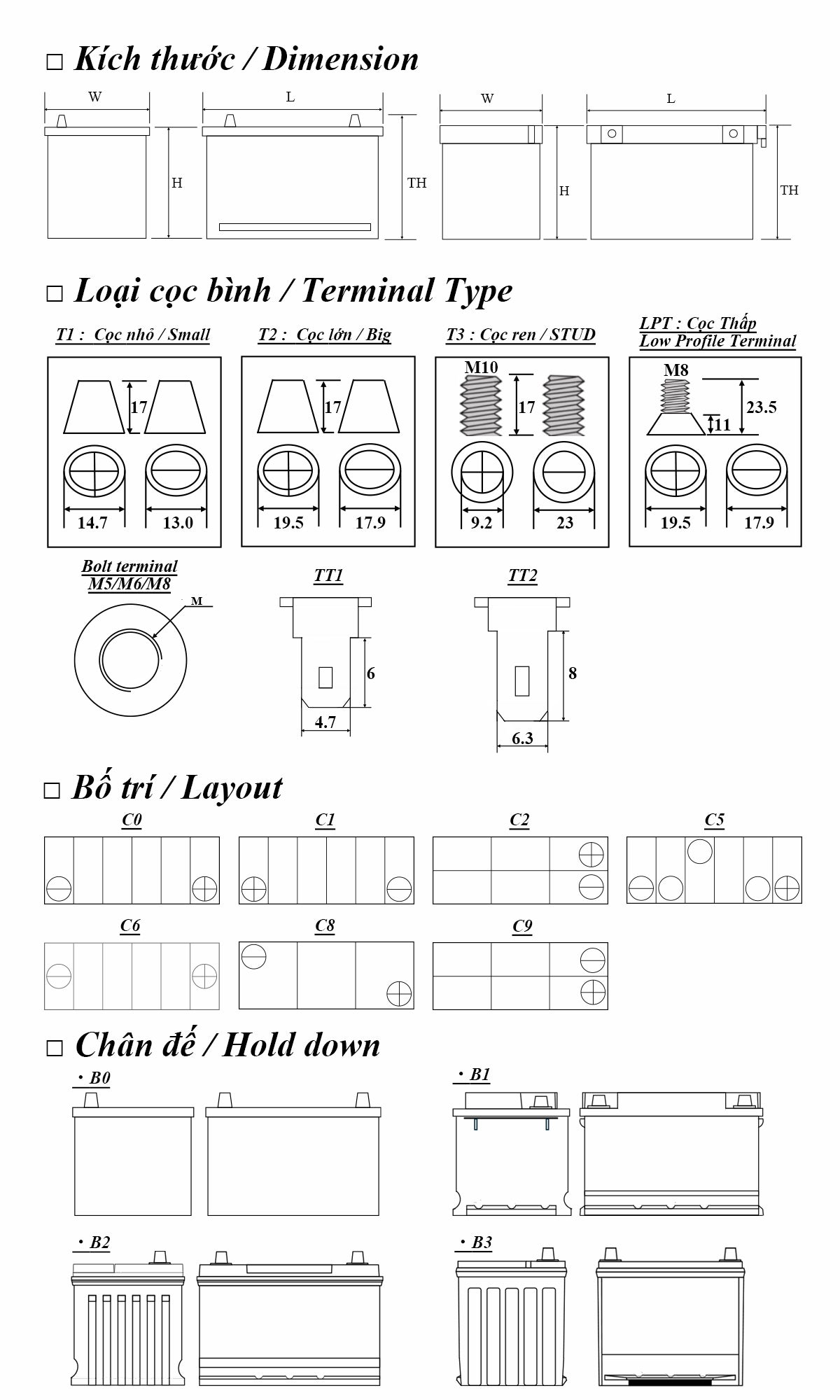

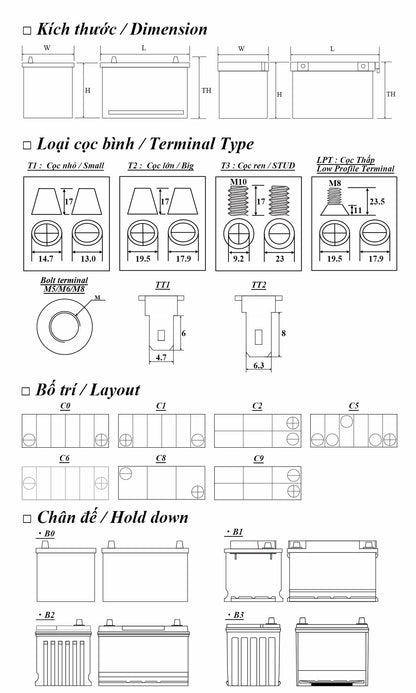

・Terminal & Layout Guide

Parts number	Terminal type	Layout	Hold Down
CMF 50B24L	T1	C0	B0
CMF 50B24LS	T2	C0	B0
CMF 50B24R	T1	C1	B0
CMF 50B24RS	T2	C1	B0
CMF 55B24L	T1	C0	B0
CMF 55B24LS	T2	C0	B0
CMF 55B24R	T1	C1	B0

・SIZE(L x W x H x TH) : 236 x 129 x 200 x 223mm
・Warranty : 9month

Calcium-lead alloy – Eliminates water loss and minimizes self-discharge.
Double-layer battery cover – Built-in vent tubes effectively reduce water evaporation.
Indicator (Hydrometer) – Allows easy monitoring of battery status.
Vibration-resistant design – Engineered to withstand Vietnam’s road conditions.

If it is difficult to choose, please refer to here.
