PINACO / Dong Nai CMF Battery - DIN80

Dong Nai CMF (Calcium Maintenance Free) Battery

The Dong Nai maintenance-free battery requires no maintenance throughout its service life.
It utilizes continuous casting technology, ensuring high-quality and uniform lead plates.
Its lead alloy composition and special additives make it highly suitable for engine starting applications.

 □ Battery parts number and Outstanding Features
・Battery parts number : CMF DIN80 [LN4] [LBN4] / 12V-80Ah(20Hr)

KMVL code	Parts number
BTDIN80-LN4MF-DN	CMF DIN80 [LN4]
BTDIN80-LBN4MF-DN	CMF DIN80 [LBN4]

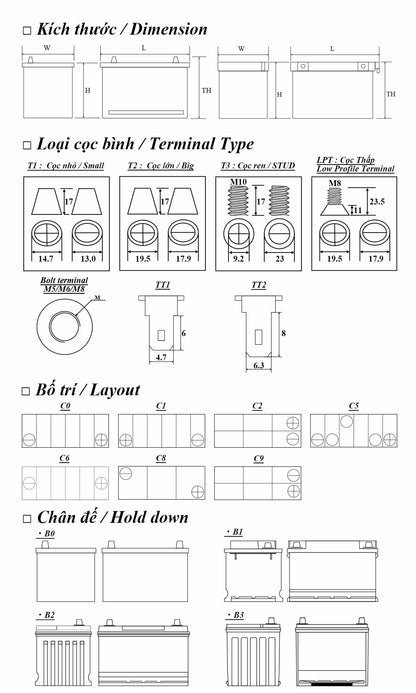

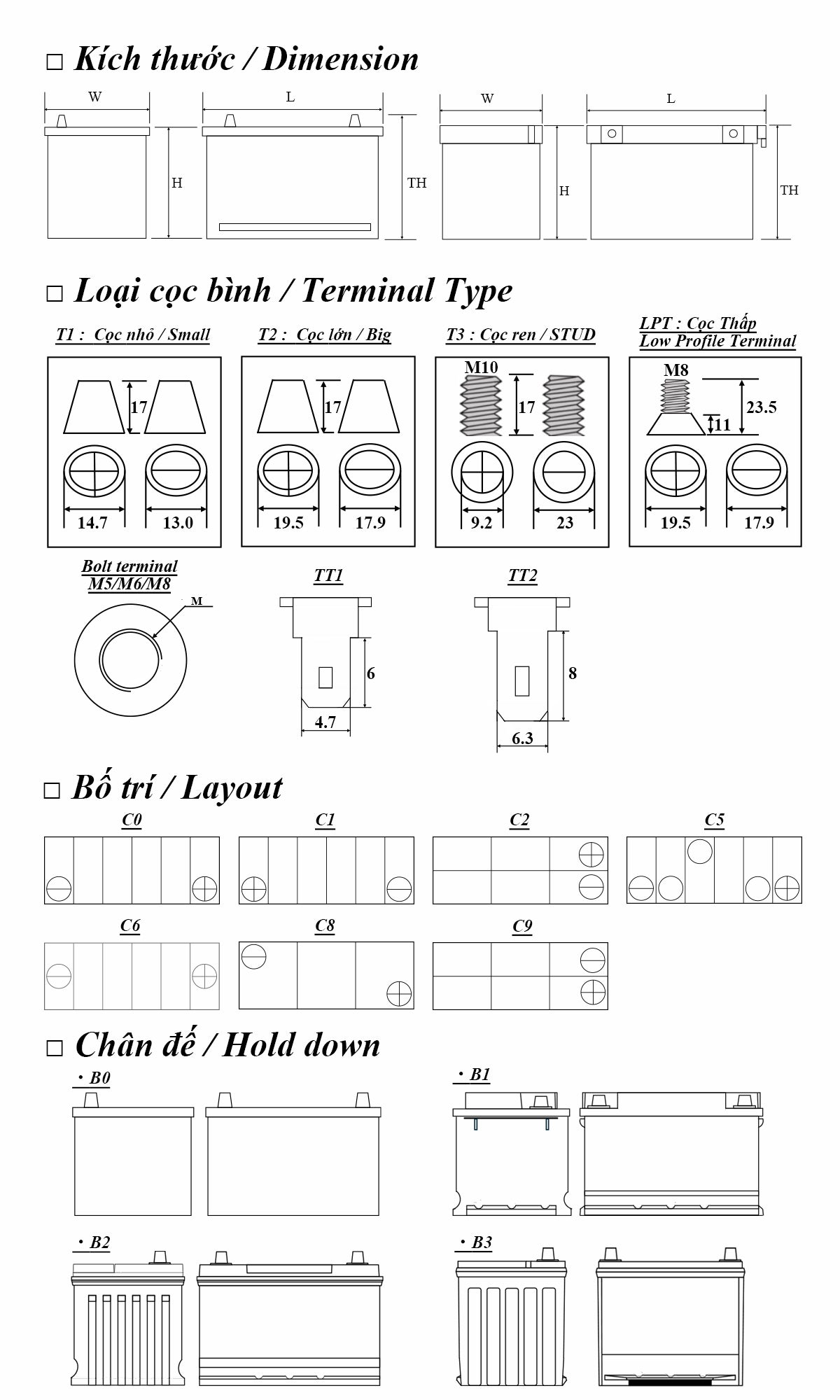

・Terminal & Layout Guide

Parts number	Terminal type	Layout	Hold Down
CMF DIN80 [LN4]	T2	C0	B1
CMF DIN80 [LBN4]	T2	C0	B1

・SIZE(L x W x H x TH) : 313 x 174 x 190 x 190mm
・Warranty : 9month

Calcium-lead alloy – Eliminates water loss and minimizes self-discharge.
Double-layer battery cover – Built-in vent tubes effectively reduce water evaporation.

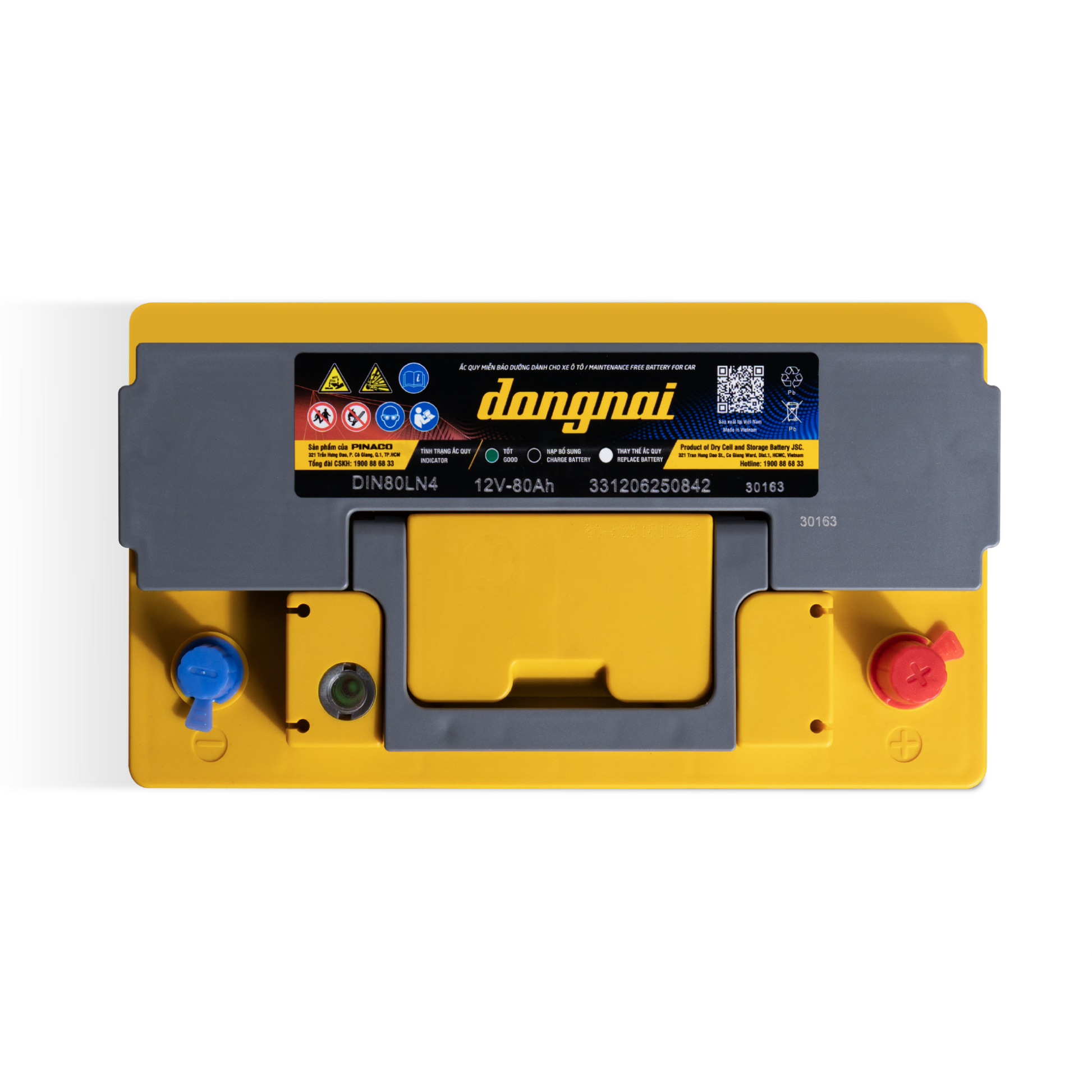

Indicator (Hydrometer) – Allows easy monitoring of battery status.
Vibration-resistant design – Engineered to withstand Vietnam’s road conditions.
