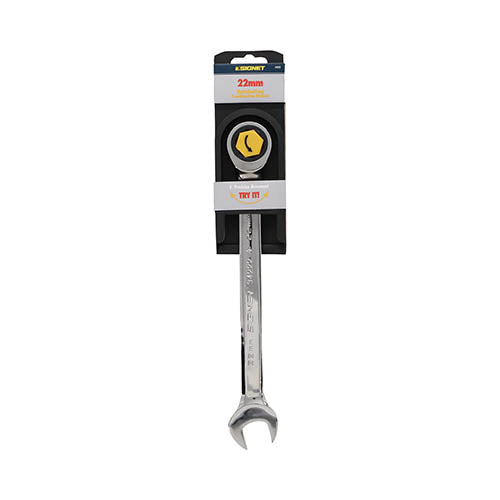

SIGNET - 60~75 Gear SIGNET wrench (mm)
SIGNET - 60~75 Gear SIGNET wrench (mm)
Không thể tải khả năng nhận hàng tại cửa hàng
Wide range of available as Japanese high quality products
Equipment : 60~75 Gear SIGNET wrench (mm)
KMVL P/N : Below
| Parts number |
SIZE (mm) |
Gear number |
Overall Length (mm) |
Wrench Width / Thickness (mm) |
Ring end Width / Thickness (mm) |
| 34205 | 5.5 | 60 | 125 | 15.2 / 5.3 | 17.6 / 6.7 |
| 34206 | 6 | 60 | 125 | 15.2 / 5.8 | 17.6 / 6.7 |
| 34207 | 7 | 60 | 133 | 17.1 / 6.3 | 18.2 / 6.7 |
| 34208 | 8 | 60 | 140 | 20.3 / 6.3 | 18.6 / 7.1 |
| 34209 | 9 | 60 | 149 | 20.3 / 6.6 | 19.8 / 7.1 |
| 34210 | 10 | 72 | 159 | 22.7 / 6.9 | 25.0 / 7.1 |
| 34211 | 11 | 72 | 165 | 25.0 / 7.1 | 24.0 / 8.4 |
| 34212 | 12 | 72 | 172 | 27.4 / 8.0 | 25.3 / 8.8 |
| 34213 | 13 | 72 | 178 | 29.9 / 8.9 | 27.4 / 8.8 |
| 34214 | 14 | 72 | 191 | 32.0 / 8.9 | 28.0 / 9.6 |
| 34215 | 15 | 72 | 200 | 34.5 / 8.9 | 31.8 / 10.1 |
| 34216 | 16 | 72 | 208 | 35.3 / 9.6 | 33.3 / 10.5 |
| 34217 | 17 | 72 | 226 | 38.7 / 9.8 | 35.1 / 10.9 |
| 34218 | 18 | 72 | 237 | 41.0 / 10.0 | 36.0 / 11.4 |
| 34219 | 19 | 75 | 248 | 42.1 / 10.3 | 36.8 / 11.4 |
| 34221 | 21 | 72 | 292 | 46.8 / 10.4 | 43.1 / 13.2 |
| 34222 | 22 | 72 | 292 | 46.8 / 10.4 | 43.1 / 13.2 |
| 34224 | 24 | 72 | 333 | 53.0 / 11.2 | 50.1 / 14.7 |
| 34227 | 27 | 72 | 359 | 57.2 / 11.8 | 54.2 / 15.7 |
| 34228 | 30 | 72 | 402 | 63.5 / 12.8 | 60.2 / 17.2 |
| 34229 | 32 | 72 | 425 | 67.6 / 13.2 | 63.6 / 17.7 |
| 38736 | 36 | 60 | 500 | 79.9 / 17.0 | 70.6 / 20.7 |
| 38741 | 41 | 60 | 575 | 87.4 / 18.6 | 74.8 / 22.2 |
| 38746 | 46 | 60 | 645 | 98.6 / 21.8 | 83.4 / 25.2 |
Remarks :
- Beautiful mirror-chrome finish
- Combination wrench with patented ratchet gear mechanism in the ring end
- Excellent durability — smooth operation without slipping thanks to the 60-tooth gear design
- Capable of Final Tightening — Despite having a ratchet mechanism, the SIGNET wrench is built strong enough to meet the standard torque requirements of conventional ring wrenches, allowing for full (final) tightening just like a standard wrench.
The wide variety of SIGNET wrenches makes them one of the brand’s most representative products.
In fact, SIGNET was the first company to introduce and popularize this type of wrench in Japan.
Although equipped with a ratchet mechanism, SIGNET wrenches are built strong enough to meet the standard torque requirements of regular ring wrenches, allowing for full tightening just like conventional tools.
As modern vehicles are increasingly designed with limited engine space to maximize cabin room, mechanics often struggle with tight working areas.
In such situations, SIGNET wrenches make the job much easier and faster — their ultra-fine 120-tooth ratchet mechanism ensures smooth and efficient operation even in confined spaces.
What is a SIGNET wrench?
A SIGNET wrench is a ring-end wrench equipped with a ratchet mechanism inside the ring.
