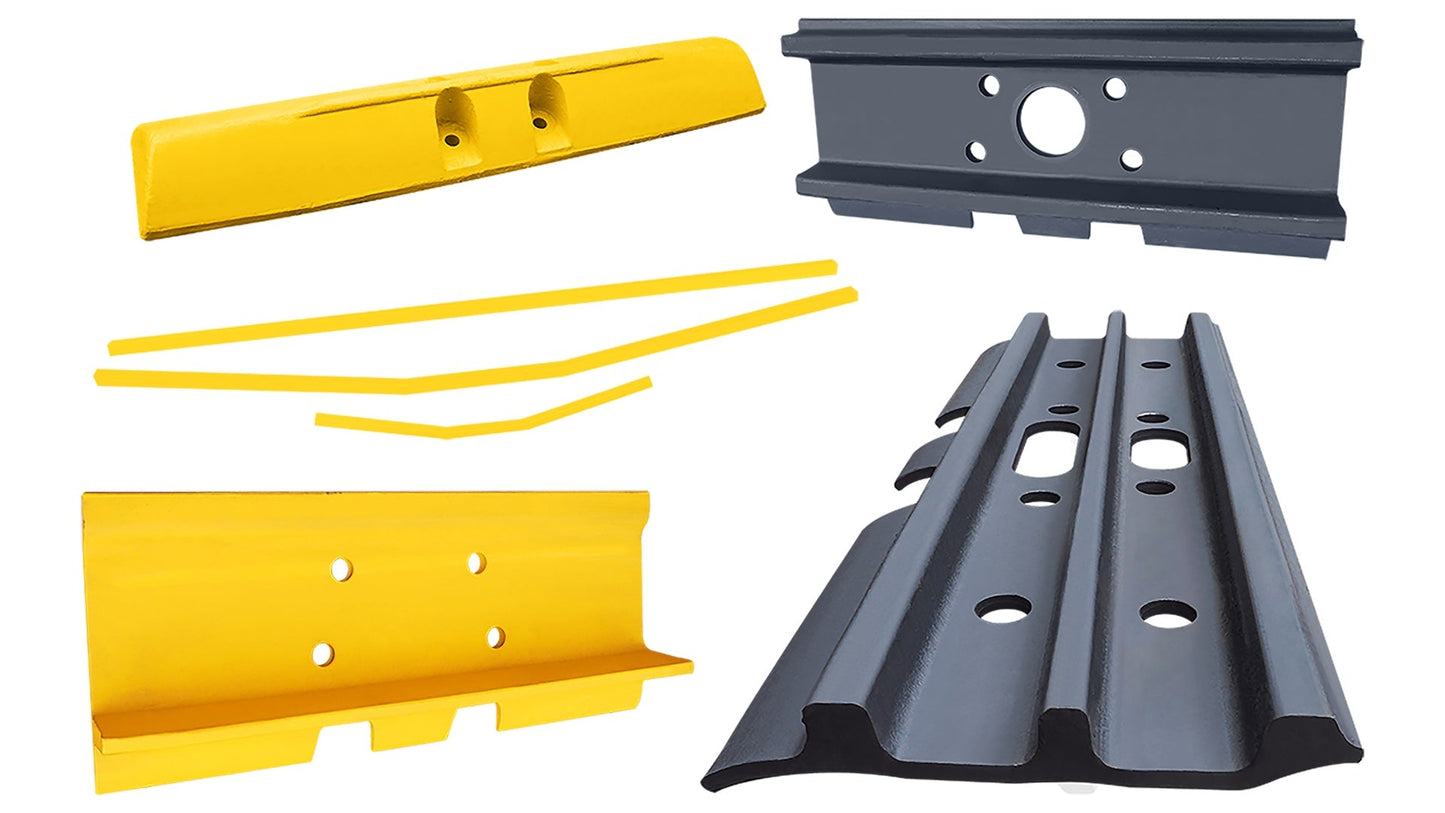

TRACK SHOE, TRIPLE - KOBELCO EX-XL 30.0 ton~ / P215.9

Wide range of available as Japanese high quality products

Equipment : Excavator
KMVL P/N :
600mm : EX-KOB-TS216/041-600T
700mm : EX-KOB-TS216/041-700T
800mm : EX-KOB-TS216/041-800T
900mm : EX-KOB-TS216/041-900T
Manufacturer : Kobelco
Model : SK320-6/SK330-8.9/SK350D-8.9
Parts number :
600mm : 2424N222
700mm : LC60D00018P1
800mm : 2424N223
900mm : 6Y8180/238-8592
Weight :
600mm : 25.11 KGS
700mm : 29.3 KGS
800mm : 33.92 KGS
900mm : 37.665 KGS

Remarks :
Length : 600mm / 700mm / 800mm / 900mm
LINK PITCH : 215.9mm
Thickness : 13mm
MUD hole : YES
Bolt hole : φ23.0
Pad hole : NO
Berco :
600mm : CR5929/600
700mm : CR5929/700
800mm : CR5929/800
900mm : CR5929/900
USCO :
ITM :
600mm : Z16303A0N0600V
700mm : Z16303A0N0700V
800mm : Z16303A0N0800V
900mm : Z16303A0N0900V

We will propose and provide the best way for the machine. Also, we are possible to provide our products as OEM, ODM and private brand.
If you have any questions, please do not hesitate to contact us!
