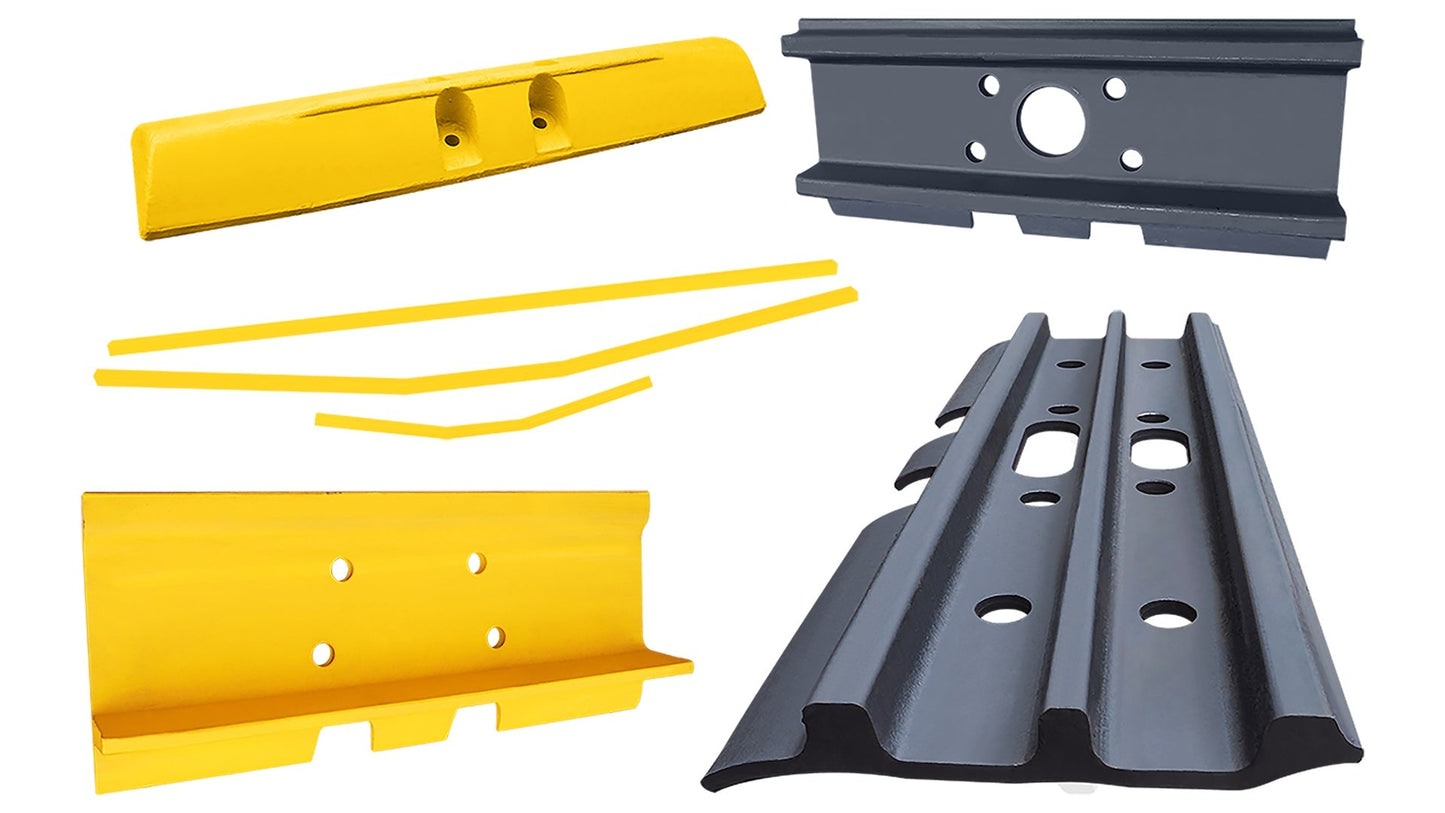

TRACK SHOE, TRIPLE [OS] - YANMAR EX-MINI 4.0 tons ~ / P135

Wide range of available as Japanese high quality products

Equipment : Excavator
KMVL P/N :
350mm/LEFT-OS : EX-YAM-TS135/012-350T-OSL
350mm/RIGHT-OS : EX-YAM-TS135/012-350T-OSR
400mm/LEFT-OS : EX-YAM-TS135/012-400T-OSL
400mm/RIGHT-OS : EX-YAM-TS135/012-400T-OSR
Manufacturer : Yanmar
Model :
350mm : B4-6/Vio40-3.5
400mm : B6-3.5.6/Vio50-2.3.5
Parts number :
350mm/LEFT-OS : 172460-38410
350mm/RIGHT-OS : 172460-38430
400mm/LEFT-OS : 172425-38110
400mm/RIGHT-OS : 172425-38140
Weight :
350mm : 3.62 KGS
400mm : 4.17 KGS

Remarks :
Length : 350mm / 400mm
LINK PITCH : 135mm
Thickness : 6mm
MUD hole : YES
Bolt hole : φ13.2
Pad hole : YES
Berco :
USCO :
ITM :

We will propose and provide the best way for the machine. Also, we are possible to provide our products as OEM, ODM and private brand.
If you have any questions, please do not hesitate to contact us!
