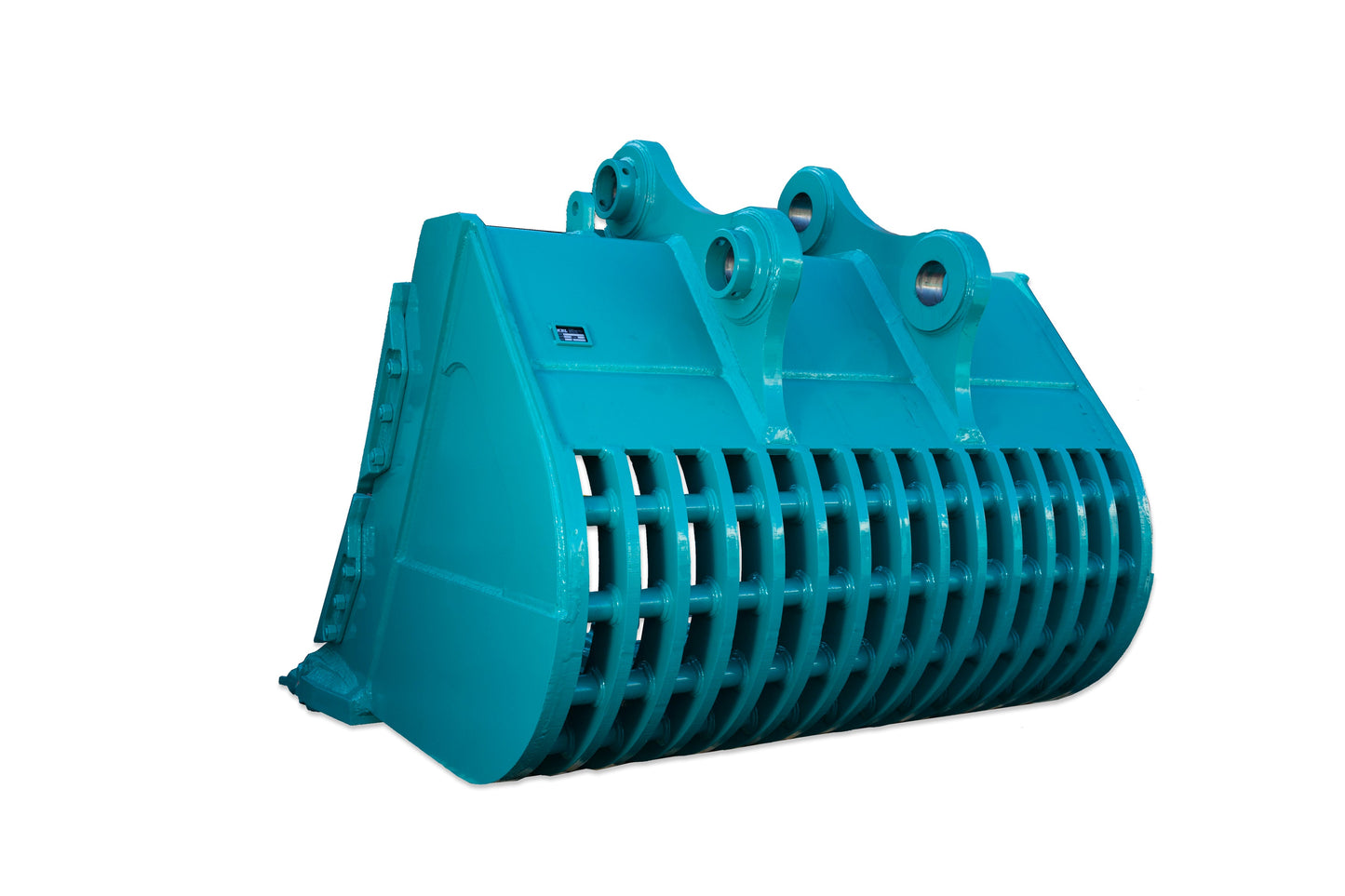

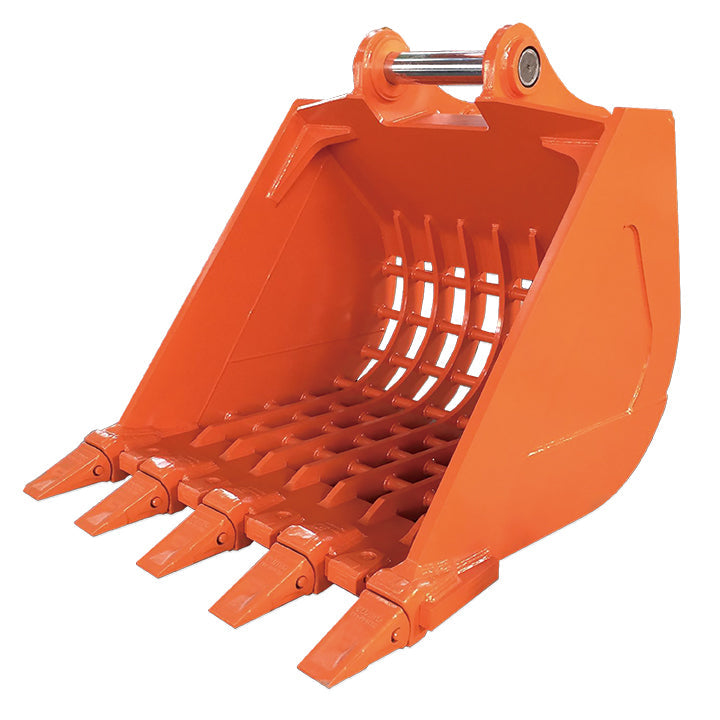

SKELETON BUCKET - 4.0~5.5ton

Wide range of available as Japanese high quality products

Equipment : Excavator
KMVL P/N :
Wide : 632mm / Grid : 50 x 50mm
> AT-SKB-040-01
Wide : 748mm / Grid : 80 x 80mm
> AT-SKB-040-03
Wide : 656mm / Grid : 80 x 100mm
> AT-SKB-040-04
Wide : 684mm / Grid : 100 x 100mm
> AT-SKB-040-05
Wide : 572mm / Grid : 100 x 150mm
> AT-SKB-040-00
Manufacturer : ALL
Model :
[Komatsu] PC40/PC40MR/PC45MR/PC50MR/PC50UU/PC55MR/PC58UU
[Caterpillar] 304CCR/305CCR/MM45/MM55/MM57
[Hitachi] EX40/EX45/EX50/EX55/ZX40U/ZX50U/ZX55UR
[Kobelco] SK040/SK40SR/SK40UR/SK045/SK45SR/SK50SK/SK50UR/SK55SR
[Yanmar] B4/B5/B6/Vio40/Vio45/Vio50/Vio55/B50
[Kubota] K040/K045/U40/U45/U50/U55/RX503/RX505/KX040/KX045
[KATO/IHI] IS40/IS45/IS50
Weight :
AT-SKB-040-01 : 143 KGS
AT-SKB-040-03 : 135 KGS
AT-SKB-040-04 : 126 KGS
AT-SKB-040-05 : 122 KGS
AT-SKB-040-00 : 111 KGS

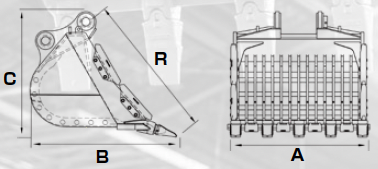

Remarks :
A[AT-SKB-040-01] : 632mm
A[AT-SKB-040-03] : 748mm
A[AT-SKB-040-04] : 656mm
A[AT-SKB-040-05] : 684mm
A[AT-SKB-040-00] : 572mm
B : 790mm
C : 660mm
D : ***mm
Mpa : ***
L1 : ***mm
L2 : ***mm
R : 830mm
P : ***mm
Tooth size : 18S
Please let us know about your machine model in advance.
We will check and confirm the product whether you can use it with your machine.

We will propose and provide the best way for the machine. Also, we are possible to provide our products as OEM, ODM and private brand.
If you have any questions, please do not hesitate to contact us!
