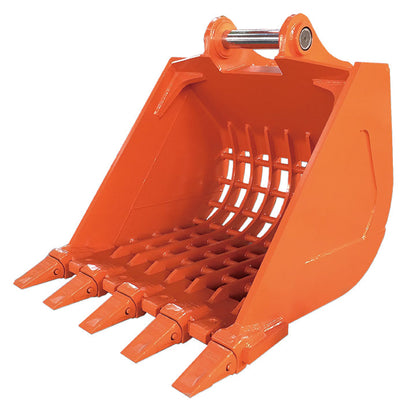

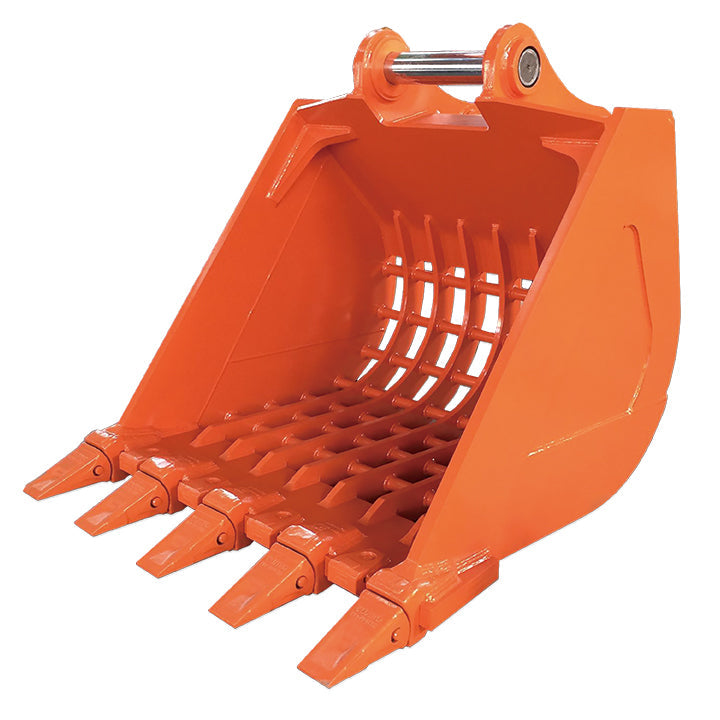

SKELETON BUCKET - 20.0ton

Wide range of available as Japanese high quality products

Equipment : Excavator
KMVL P/N :
Wide : 1108mm / Grid : 50 x 50mm
> AT-SKB-200-01
Wide : 1252mm / Grid : 80 x 80mm
> AT-SKB-200-03
Wide : 1248mm / Grid : 100 x 100mm
> AT-SKB-200-05
Wide : 1138mm / Grid : 200 X 200
> AT-SKB-200-10
Wide : 1248mm / Grid : 100 x 150mm
> AT-SKB-200-00
Manufacturer : ALL
Model :
[Komatsu] PC200/PC210/PC220/PC228US/PC230
[Caterpillar] 320/321/322
[Hitachi] EX200/EX225US/ZX200/ZX225US
[Kobelco] SK200/SK235SR
[KATO/IHI] HS820/HD823
*Products are depending on the model and Brand.
Weight :
AT-SKB-200-01 : 920 KGS
AT-SKB-200-03 : 830 KGS
AT-SKB-200-05 : 780 KGS
AT-SKB-200-10 : 665 KGS
AT-SKB-200-00 : 760 KGS

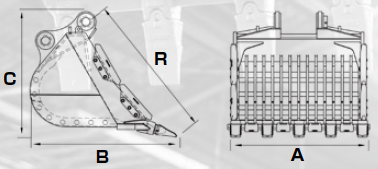

Remarks :
A[AT-SKB-200-01] : 1108mm
A[AT-SKB-200-03] : 1252mm
A[AT-SKB-200-05/00] : 1248mm
A[AT-SKB-200-10] : 1138mm
B : 1320mm
C : 1150mm
D : ***mm
Mpa : ***
L1 : ***mm
L2 : ***mm
R : 1530mm
P : ***mm
Tooth size : Komatsu-Side pin
Please let us know about your machine model in advance.
We will check and confirm the product whether you can use it with your machine.

We will propose and provide the best way for the machine. Also, we are possible to provide our products as OEM, ODM and private brand.
If you have any questions, please do not hesitate to contact us!
