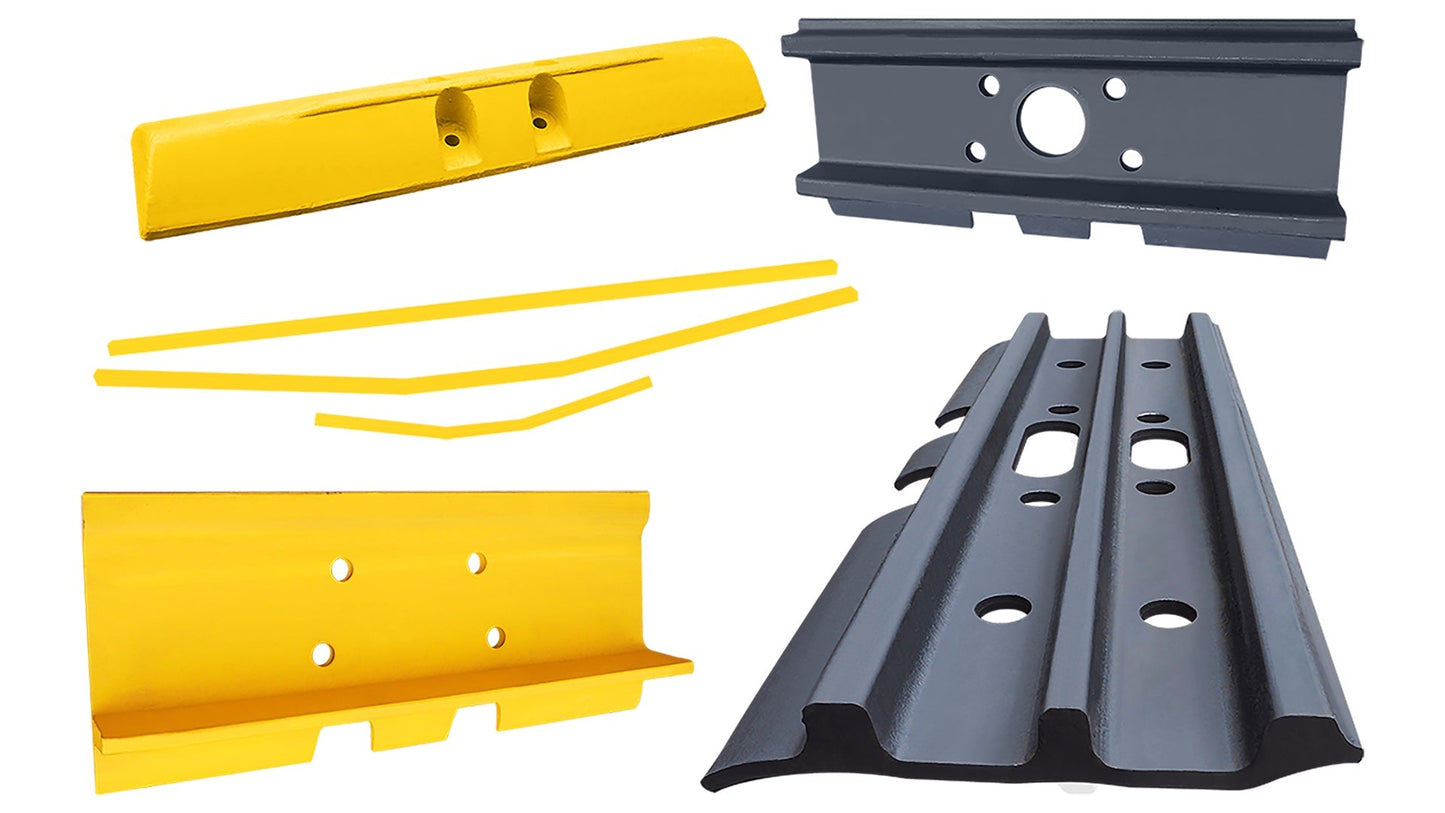

TRACK SHOE, TRIPLE - HITACHI EX-MD 10.0 tons ~ / P171.45

Wide range of available as Japanese high quality products

Equipment : Excavator
KMVL P/N :
500mm : EX-HIT-TS171/041-500T
600mm : EX-HIT-TS171/041-600T
700mm : EX-HIT-TS171/041-700T
Manufacturer : HITACHI
Model :
[Excavator]
EX100-1.2.3.5/EX120-1.2.3.5/EX135UR/EX135USR/ZX110/ZX120/ZX125US/ZX130/ZX135US/ZX135USR
[Others]
SR2000G-6/VR512-2/ZR130HC/ZR260HC/ZR900S-5/HR900SM/HR1250S-5
Parts number :
500mm : 2037093
600mm : 2024529
700mm : 2024425
Weight :
500mm : 8.84 KGS
600mm : 10.69 KGS
700mm : 12.6 KGS

Remarks :
Length : 500mm / 600mm / 700mm
LINK PITCH : 171.45mm
Thickness : 8mm
MUD hole : YES
Bolt hole : φ16.2
Pad hole : YES(500mm/600mm only)
Berco :
500mm : CR4835/500
600mm : CR4835/600
700mm : CR4835/700
USCO :
ITM :
500mm : Z15493A0N0500V
600mm : Z15493A0N0600V
700mm : Z15493A0N0700V
