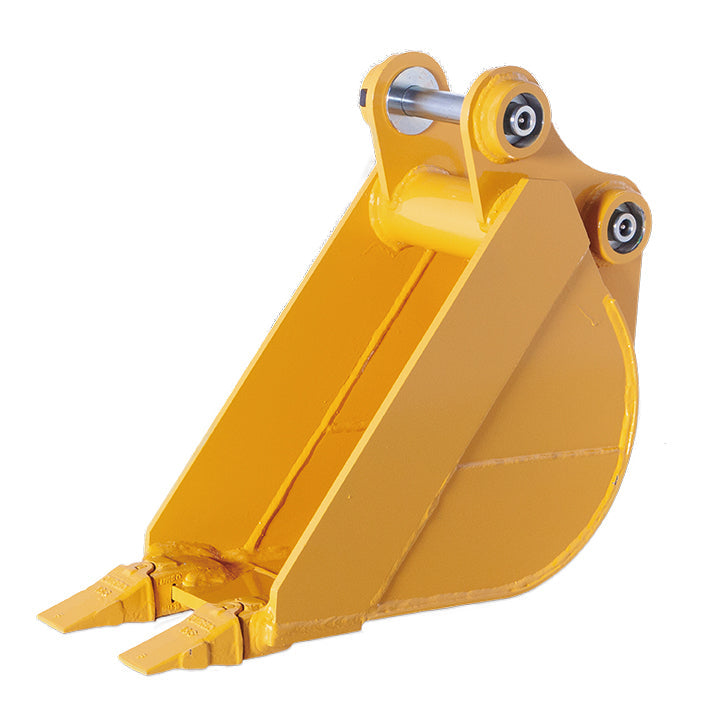

NARROW BUCKET - 3.0~3.8ton

Wide range of available as Japanese high quality products

Equipment : Excavator
KMVL P/N :
Wide : 250MM > AT-NRB-030-025
Wide : 300MM > AT-NRB-030-030
Wide : 350MM > AT-NRB-030-035
Wide : 400MM > AT-NRB-030-040
Manufacturer : ALL
Model :
[Komatsu] PC30UU/PC30MR/PC35MR/PC38UU
[Caterpillar] 303CCR/303.5CCR/MM30/MM35
[Hitachi] EX30/EX35/EX40UR/ZX30U/ZX35U/ZX40UR
[Kobelco] SK030/SK30SR/SK30UR/SK035/SK35SR/SK38UR
[Yanmar] B3/B27/B32/B37/Vio30/Vio35
[Kubota] K030/K035/U30/U35/RX303/RX305
[KATO/IHI] IS30/IS35/IS38
*Products are depending on the model and Brand.
Weight : AT-NRB-030-025 : 54 KGS
AT-NRB-030-030 : 62 KGS
AT-NRB-030-035 : 66 KGS
AT-NRB-030-040 : 69 KGS

Remarks :
[AT-NRB-030-025]
Capacity : 0.040M3
A : 250mm
B : 650mm
C : 610mm
P : 164mm
[AT-NRB-030-030]
Capacity : 0.055M3
A : 300mm
B : 650mm
C : 610mm
P : 107mm
[AT-NRB-030-035]
Capacity : 0.065M3
A : 350mm
B : 650mm
C : 610mm
P : 132mm
[AT-NRB-030-040]
Capacity : 0.080M3
A : 400mm
B : 650mm
C : 610mm
P : 157mm
Tooth size : 18S
Please let us know about your machine model in advance.
We will check and confirm the product whether you can use it with your machine.

We will propose and provide the best way for the machine. Also, we are possible to provide our products as OEM, ODM and private brand.
If you have any questions, please do not hesitate to contact us!
