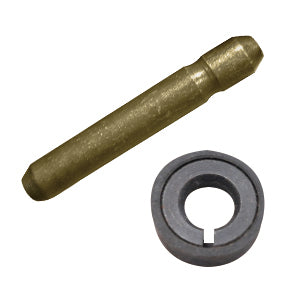

PIN, SIDE - RETAINER / RIPPER TEETH - CATERPILLAR

Wide range of available as Japanese high quality products

Equipment : Bull Dozer
KMVL P/N :
R450 : [PN] CATR450-PN-SI-P / [RETAINER] CATR450-PN-SI-R
R500 : [PN] CATR500-PN-SI-P / [RETAINER] CATR500-PN-SI-R
R550 : [PN] CATR550-PN-SI-P / [RETAINER] CATR550-PN-SI-R

Manufacturer : Caterpillar MITSUBISHI
Model :
R450 : [PN] / [RETAINER] D8T/D9N/D9R
R500 : [PN] / [RETAINER] D10N/D10R/D10T/D11R/D11T
R550 : [PN] / [RETAINER] D11N/D11R
Please check the actual machines for size and specifications of GET in advance.
The above models are for reference.
Parts number :
R450 : [PN] 6Y3394 / [RETAINER] 8E4743
R500 : [PN] 6Y3909 / [RETAINER] 4T4707
R550 : [PN] 8E2229 / [RETAINER] 8E2230
SIZE :
R450 : [PN] O.D25.4mm x L125mm / [RETAINER] O.D48mm
R500 : [PN] O.D32.0mm x L142mm / [RETAINER] O.D64mm
R550 : [PN] O.D35.0mm x L160mm / [RETAINER] O.D70mm
Weight :
R450 : [PN] 0.5 KGS / [RETAINER] 0.07 KGS
R500 : [PN] 0.86 KGS / [RETAINER] 0.17 KGS
R550 : [PN] 1 KGS / [RETAINER] 0.2 KGS

Remarks :


We will propose and provide the best way for the machine. Also, we are possible to provide our products as OEM, ODM and private brand.
