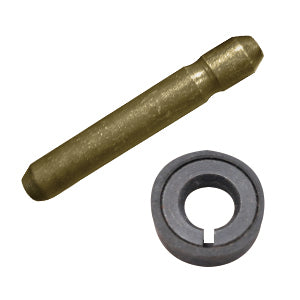

PIN, SIDE - RETAINER / TEETH - CATERPILLAR

Wide range of available as Japanese high quality products

Equipment : Wheel Loader
KMVL P/N :
J200 : [PN] CATJ200-PN-SI-P / [RETAINER] CATJ200-PN-SI-R
J225 : [PN] CATJ225-PN-SI-P / [RETAINER] CATJ250-PN-SI-R
J250 : [PN] CATJ250-PN-SI-P / [RETAINER] CATJ250-PN-SI-R
J300 : [PN] CATJ300-PN-SI-P / [RETAINER] CATJ250-PN-SI-R
J350 : [PN] CATJ350-PN-SI-P / [RETAINER] CATJ350-PN-SI-R
J400 : [PN] CATJ400-PN-SI-P / [RETAINER] CATJ400-PN-SI-R
J460 : [PN] CATJ460-PN-SI-P / [RETAINER] CATJ460-PN-SI-R
J550 : [PN] CATJ550-PN-SI-P / [RETAINER] CATJ550-PN-SI-R
J600 : [PN] CATJ600-PN-SI-P / [RETAINER] CATJ600-PN-SI-R
Manufacturer : Caterpillar MITSUBISHI
Model :
J200 : [PN] / [RETAINER] 910E/910F/914G/IT12/IT14/931/D4C
J225 : [PN] / [RETAINER] E70B/307/308
J250 : [PN] / [RETAINER] E110B/E120B/311/312/313/314
J300 : [PN] / [RETAINER] E200B/320/321/322/324
J350 : [PN] / [RETAINER] E200B/320/321/322/324
J400 : [PN] / [RETAINER] 322/324/325/329/330/336
J460 : [PN] / [RETAINER] 330/336/345/349/350
J550 : [PN] / [RETAINER] 350/375
J600 : [PN] / [RETAINER] 375
Please check the actual machines for size and specifications of GET in advance.
The above models are for reference.
Parts number :
J200 : [PN] 8E6208 / [RETAINER] 8E6209
J225 : [PN] 6Y3228 / [RETAINER] 8E6259
J250 : [PN] 9J2258/8E6258 / [RETAINER] 8E6259
J300 : [PN] 9J2308 / [RETAINER] 8E6259
J350 : [PN] 8E6358 / [RETAINER] 8E6359
J400 : [PN] 7T3408 / [RETAINER] 8E8409
J460 : [PN] 8E0468 / [RETAINER] 8E8469
J550 : [PN] 6Y8558 / [RETAINER] 8E5559
J600 : [PN] 6I6608 / [RETAINER] 6I6609
SIZE :
J200 : [PN] O.D11.2mm x L55mm / [RETAINER] O.D21.5mm with Cap
J225 : [PN] O.D14.2mm x L64mm / [RETAINER] O.D30mm with CAP
J250 : [PN] O.D14.2mm x L76mm / [RETAINER] O.D30mm with CAP
J300 : [PN] O.D14.2mm x L92mm / [RETAINER] O.D30mm with CAP
J350 : [PN] O.D19.0mm x L105mm / [RETAINER] O.D39mm with CAP
J400 : [PN] O.D22.0mm x L118mm / [RETAINER] O.D42mm with CAP
J460 : [PN] O.D24.0mm x L132mm / [RETAINER] O.D43mm with CAP
J550 : [PN] O.D25.0mm x L162mm / [RETAINER] O.D53mm with CAP
J600 : [PN] O.D30.0mm x L192mm / [RETAINER] O.D58mm with CAP
Weight :
J200 : [PN] 0.21 KGS / [RETAINER] 0.01 KGS
J225 : [PN] 0.1 KGS / [RETAINER] 0.01 KGS
J250 : [PN] 0.1 KGS / [RETAINER] 0.01 KGS
J300 : [PN] 0.11 KGS / [RETAINER] 0.01 KGS
J350 : [PN] 0.23 KGS / [RETAINER] 0.02 KGS
J400 : [PN] 0.37 KGS / [RETAINER] 0.03 KGS
J460 : [PN] 0.45 KGS / [RETAINER] 0.07 KGS
J550 : [PN] 0.64 KGS / [RETAINER] 0.05 KGS
J600 : [PN] 1.1 KGS / [RETAINER] 0.2 KGS

Remarks :


We will propose and provide the best way for the machine. Also, we are possible to provide our products as OEM, ODM and private brand.
If you have any questions, please do not hesitate to contact us!
