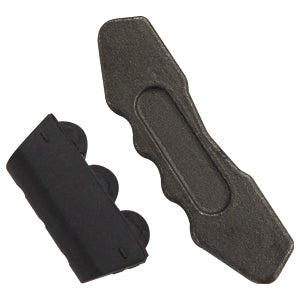

PIN, LOCK / CONICAL TEETH - ESCO

Wide range of available as Japanese high quality products

Equipment : Excavator
KMVL P/N :
13S : [PN] ESC13S-PN-VC-P / [LK] ESC13S-PN-VC-R
18S : [PN] ESC18S-PN-VC-P / [LK] ESC18S-PN-VC-R
22S : [PN] ESC22S-PN-VC-P / [LK] ESC22S-PN-VC-R
25S-30S : [PN] ESC25S/30S-PN-VC-P / [LK] ESC25S/30S-PN-VC-R
35S : [PN] ESC35S-PN-VC-P
40S : [PN] ESC40S-PN-VC-P
35S -40S : [LK] ESC35S/40S-PN-VC-R
45S : [PN] ESC45S-PN-VC-P / [LK] ESC45S-PN-VC-R
Manufacturer : ESCO
Model :
13S :
[Komatsu] PC08UU/PC10MR
[Hitachi] EX8U/ZX8U/EX10U/ZX10U
[CAT] FIGA008CR/010CR
[Kobelco] SK008/SK09SR/SK10SR
[Sumitomo] -
[Kato/IHI] -
[Kubota] U008/U10
[Yanmar] SV08/J09/Vio10
[Others] -
18S :
[Komatsu] PC20MR/PC30MR/PC40MR/PC45MR/PC50MR/PC55MR
[Hitachi] EX30/EX35/EX40/EX45/EX50/EX55UR/ZX30U/ZX35U/ZX40U/ZX50U/ZX55UR
[CAT] FIGA020CR/302/303/303.5/304/305/305.5
[Kobelco] SK20SR/SK30SR/SK35SR/SK40SR/SK45SR/SK50SR/SK55SR
[Sumitomo] -
[Kato/IHI] IS20/IS30/IS35/IS40/IS50
[Kubota] U20/U25/U30/U35/U40/U45/U50/U55/RX203/RX205/RX303/RX305/RX403/RX405/RX503/RX505/K030/K035
[Yanmar] Vio20/Vio30/Vio35/Vio40/Vio45/Vio50
[Others] -
22S :
[Komatsu] PC58UU-3
[Hitachi] ZX70/ZX75US/ZX75UR
[CAT] 307/308
[Kobelco] -
[Sumitomo] -
[Kato/IHI] -
[Kubota] -
[Yanmar] -
[Others] -
25S-30S :
[Komatsu] PC60/PC70/PC78US/PC78UU
[Hitachi] ZX120/ZX135
[CAT] 311/312/313/314
[Kobelco] SK70SR/SK75UR/SK115SR/SK120/SK130UR/SK135SR
[Sumitomo] SH60/SH75X/SH120/SH125X/SH135X
[Kato/IHI] IS70J/IS80/HD307/HD308/IS120J/HD512/HD513
[Kubota] -
[Yanmar] B7-5/Vio70-2.3
[Others] -
35S :
[Komatsu] PC120/PC138US/PC200/PC228US
[Hitachi] EX200/ZX225US/EX225UR/ZX200/ZX225US/ZX225UR
[CAT] 320/321/322/324
[Kobelco] SK200/SK235/SK230
[Sumitomo] SH200/SH225/SH235
[Kato/IHI] HD820/HD823
[Kubota] -
[Yanmar] -
[Others] -
40S :
[Komatsu] PC300/PC350
[Hitachi] EX300/EX350/ZX300/ZX330
[CAT] 325/329/330/336
[Kobelco] SK300/SK320/SK330/SK350
[Sumitomo] SH300/SH350
[Kato/IHI] -
[Kubota] -
[Yanmar] -
[Others] -
45S :
[Komatsu] PC400/PC450
[Hitachi] EX400/EX450/ZX450
[CAT] 345/349
[Kobelco] SK430/SK450/SK480
[Sumitomo] SH400/SH450
[Kato/IHI] -
[Kubota] -
[Yanmar] -
[Others] -
Please check the actual machines for size and specifications of GET in advance.
The above models are for reference.
Parts number :
13S : [PN] 13PN / [LK] 13LK
18S : [PN] 18-20PN / [LK] 18-20LK
22S : [PN] 22PN / [LK] 22LK
25S-30S : [PN] 25-30PN / [LK] 25-30LK
35S : [PN] 35PN / [LK] 35-40LK
40S : [PN] 40PN / [LK] 35-40LK
45S : [PN] 45PN / [LK] 45PN
Weight :
13S : [PN] 0.02 KGS / [LK] 0.02 KGS
18S : [PN] 0.03 KGS / [LK] 0.02 KGS
22S : [PN] 0.05 KGS / [LK] 0.03 KGS
25S-30S : [PN] 0.1 KGS / [LK] 0.03 KGS
35S : [PN] 0.13 KGS
40S : [PN] 0.2 KGS
35S -40S : [LK] 0.04 KGS
45S : [PN] 0.4 KGS / [LK] 0.3 KGS

Remarks :


We will propose and provide the best way for the machine. Also, we are possible to provide our products as OEM, ODM and private brand.
If you have any questions, please do not hesitate to contact us!
