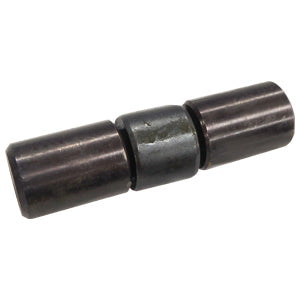

PIN, SIDE / TEETH - KOMATSU

Wide range of available as Japanese high quality products

Equipment : Excavator/Wheel Loader/Bull Dozer
KMVL P/N / SIZE :

KOM078-PN-SI-P-ST : O.D20.0mm x L71mm
KOM200-PN-SI-P-ST : O.D24.7mm x L96mm
KOM350-PN-SI-P-ST : O.D24.7mm x L117mm
KOM450-PN-SI-P-ST : O.D29.7mm x L136mm
KOM650-PN-SI-P-ST : O.D35.7mm x L163mm
KOM1250-PN-SI-P : O.D39.8mm x L176mm

KOMWA500-PN-SI-P : O.D29.7mm x L146mm
KOMWA800-PN-SI-P : O.D27.4mm x L167mm

KOMD155-PN-SI-P : O.D24.7mm x L113mm
KOMD375-PN-SI-P : O.D29.7mm x L115mm
KOMD475-PN-SI-P : O.D29.7mm x L152mm

KOM200-PN-SI-P-SHORT : O.D24.7mm x L89mm
KOM350-PN-SI-P-SHORT : O.D24.7mm x L70mm
KOM650-PN-SI-P-SHORT : O.D29.7mm x L96mm
Manufacturer : Komatsu
Model :
・KOM078-PN-SI-P-ST : PC60/PC78US/PC78UU
・KOM200-PN-SI-P-ST : PC120/PC138US/PC200/PC228US
・KOM350-PN-SI-P-ST : PC300/PC350
・KOM450-PN-SI-P-ST : PC400/PC450
・KOM650-PN-SI-P-ST : PC650/PC850
・KOM1250-PN-SI-P : PC1250
・KOMWA500-PN-SI-P : WA500 / WA600
・KOMWA800-PN-SI-P : WA700-1/WA800-1.1A
・KOMD155-PN-SI-P : D85/D155/D275/D355
・KOMD375-PN-SI-P : D375A-3.5.5E0.6
・KOMD475-PN-SI-P : D475A-1.2.3.5.5A
・KOM200-PN-SI-P-SHORT : PC120/PC138US/PC200/PC228US
・KOM350-PN-SI-P-SHORT : PC300/PC350
・KOM650-PN-SI-P-SHORT : PC650/PC850
Please check the actual machines for size and specifications of GET in advance.
The above models are for reference.
Parts number :
・KOM078-PN-SI-P-ST : 20X-70-00100
・KOM200-PN-SI-P-ST : 09244-02496
・KOM350-PN-SI-P-ST : 175-78-21810
・KOM450-PN-SI-P-ST : 09244-03036
・KOM650-PN-SI-P-ST : 209-70-54240
・KOM1250-PN-SI-P : 21N-72-14330
・KOMWA500-PN-SI-P : 426-847-1130
・KOMWA800-PN-SI-P : 427-70-13790
・KOMD155-PN-SI-P : 09244-02508
・KOMD375-PN-SI-P : 195-78-71360
・KOMD475-PN-SI-P : 198-78-21410
・KOM200-PN-SI-P-SHORT : 09244-02489
・KOM350-PN-SI-P-SHORT : 113-78-21170
・KOM650-PN-SI-P-SHORT : 21N-939-3330
Weight :
・KOM078-PN-SI-P-ST : 0.16 KGS
・KOM200-PN-SI-P-ST : 0.33 KGS
・KOM350-PN-SI-P-ST : 0.41 KGS
・KOM450-PN-SI-P-ST : 0.75 KGS
・KOM650-PN-SI-P-ST : 1.23 KGS
・KOM1250-PN-SI-P : 2.05 KGS
・KOMWA500-PN-SI-P : 0.79 KGS
・KOMWA800-PN-SI-P : 0.71 KGS
・KOMD155-PN-SI-P : 0.41 KGS
・KOMD375-PN-SI-P : 0.61 KGS
・KOMD475-PN-SI-P : 0.79 KGS
・KOM200-PN-SI-P-SHORT : 0.33 KGS
・KOM350-PN-SI-P-SHORT : 0.28 KGS
・KOM650-PN-SI-P-SHORT : 0.6 KGS

Remarks :


We will propose and provide the best way for the machine. Also, we are possible to provide our products as OEM, ODM and private brand.
