KUKKO - 2-jaw Pullers with Extremely Narrow & Quickly Adjustable Jaws

Wide range of available as Japanese high quality products

Equipment : KUKKO - 2-jaw Pullers with Extremely Narrow & Quickly Adjustable Jaws
KMVL P/N & Description : Below

Parts number	External Pulling Capacity (mm)	Internal Pulling Capacity (mm)	Arm Length (mm)	Maximum Load (t)
20-1+S-T	16-90	70-140	100	2.5
20-10+S-T	16-120	70-180	100	2.5

Description :

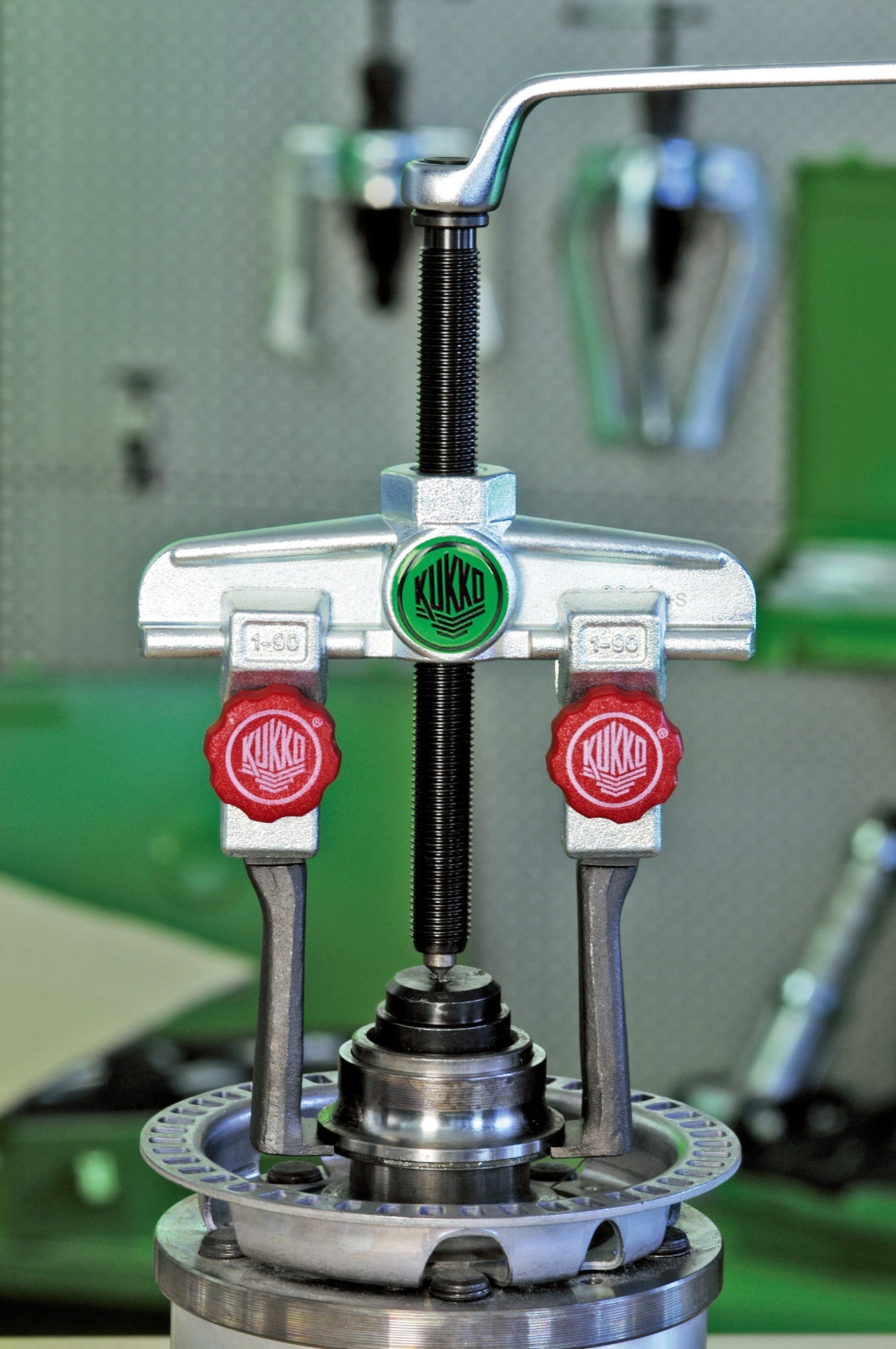

The 2-jaw universal puller with extremely narrow, quickly adjustable jaws and trapezoidal support surfaces on the claw is used for safely and userfriendly pulling of transmission gears, bearings, sprockets, synchronizer bodies, and similar components. This allows for the loosening of any component that sits on a shaft and is freely accessible from the outside. The trapezoidal support surfaces of the claw ensure that even very tight and hard-to-reach spaces are accessible.

Advantage :
• Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
• The extremely slim design of the jaws optimally engages in extremely tight and hard-to-reach spots.
• Simple manual release of the jaws with hand knob (Quick Adjust Technology)
• Application also for eccentric components through freely movable, sliding puller jaws on the crossbar.
• Hexagonal profile on the crossbar for secure counterholding.
• Quick-adjustable jaws guarantee immediate adjustment to any spread between 16 mm – 120 mm.
