KUKKO - 2-jaw Pullers with Narrow & Quickly Adjustable Jaws

Wide range of available as Japanese high quality products

Equipment : KUKKO - 2-jaw Pullers with Narrow & Quickly Adjustable Jaws
KMVL P/N & Description : Below

Parts number	External Pulling Capacity (mm)	Internal Pulling Capacity (mm)	Arm Length (mm)	Maximum Load (t)
20-1+S	4-90	70-140	100	2.5
20-10+S	4-120	70-180	100	2.5
20-2+S	16-160	100-220	150	5
20-20+S	16-200	100-260	150	5
20-3+S	21-250	180-340	200	9
20-30+S	21-350	180-440	200	9

Description :

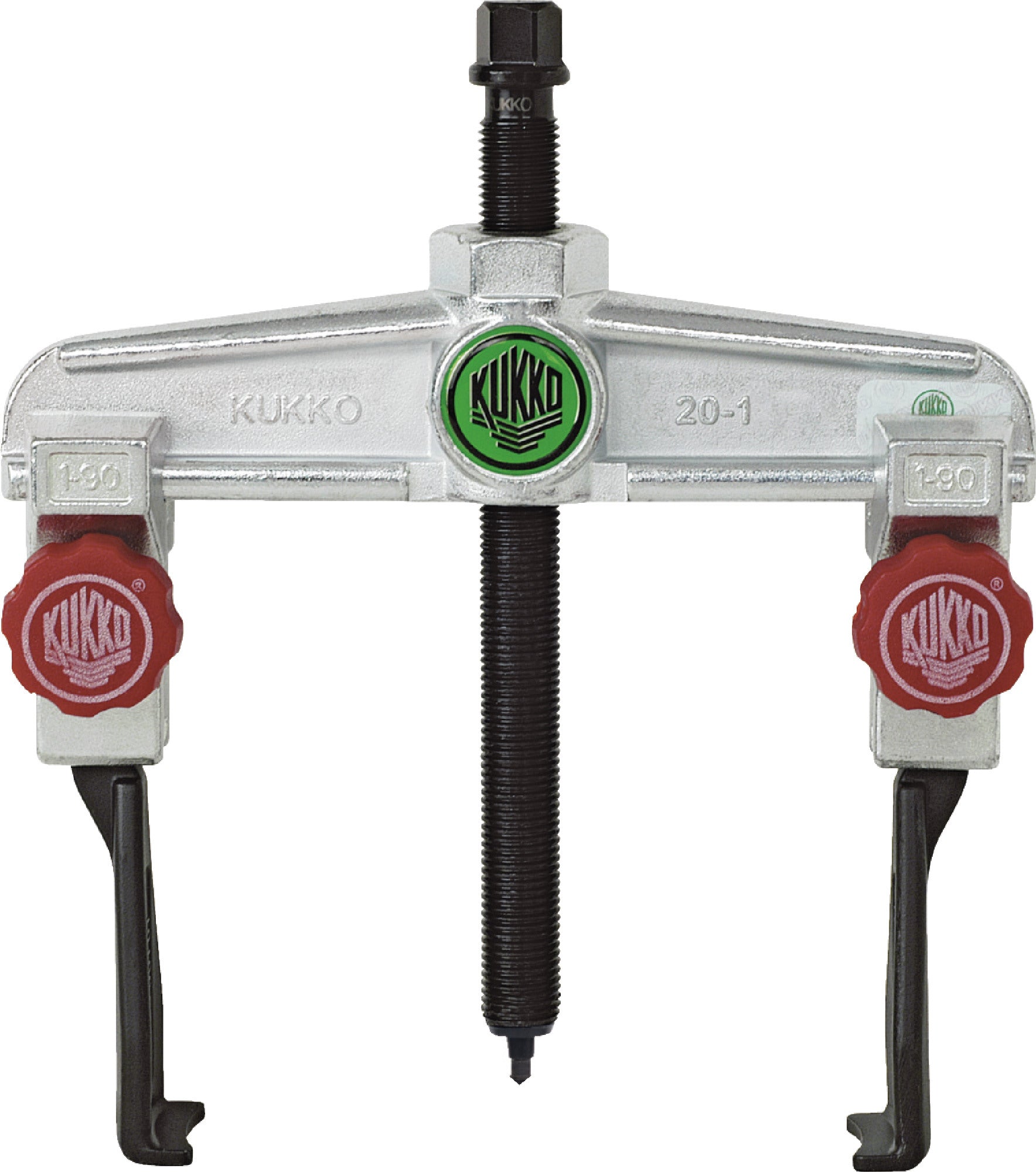

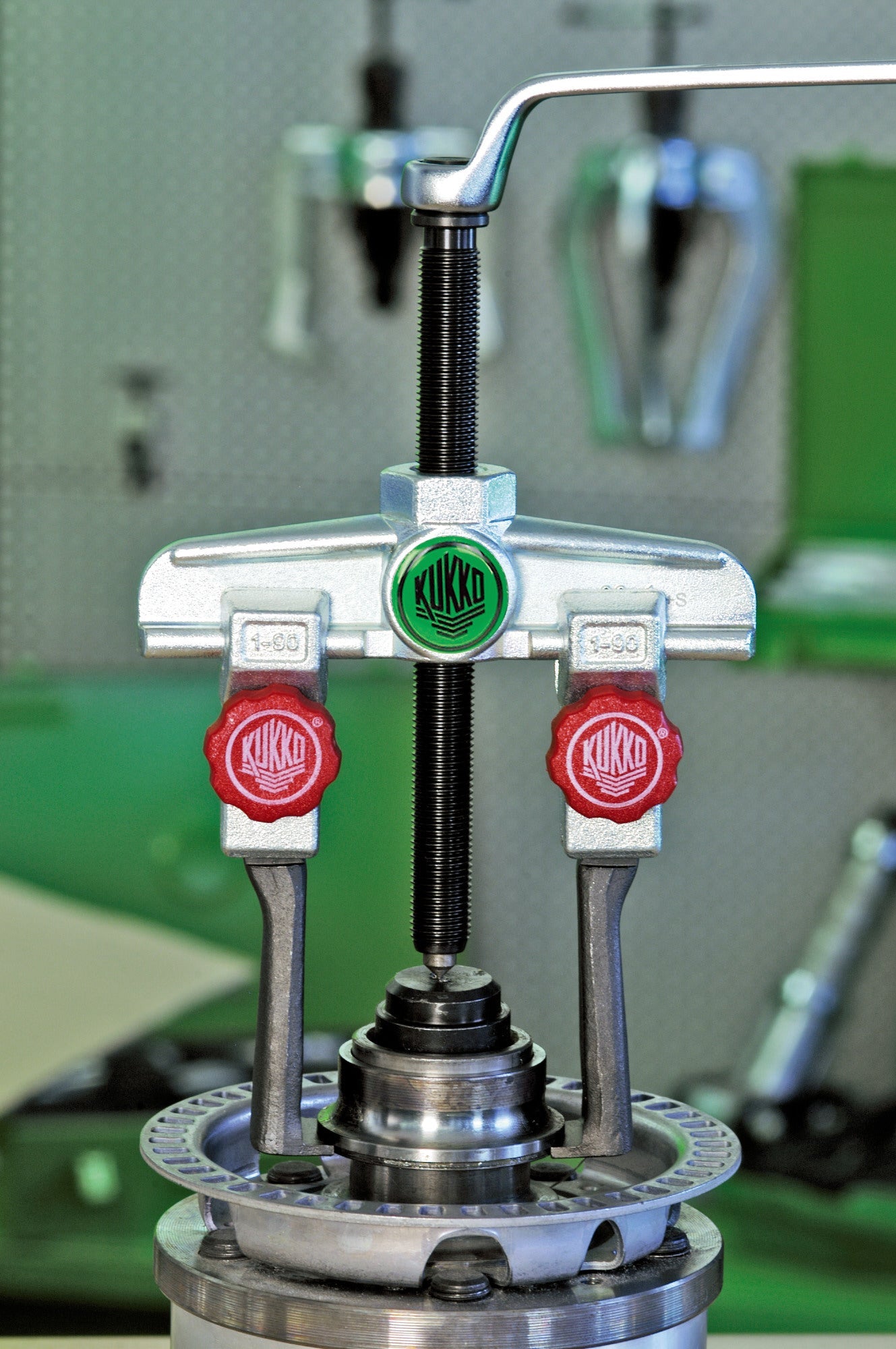

The 2-jaw universal puller with narrow, quickly adjustable jaws is used for the safe and user-friendly removal of bearings, gears, and discs in all common sizes for craft, workshop, and industry. This allows for the loosening of any component seated on a shaft and freely accessible from the outside. The narrow jaws ensure that even tight and hard-to-reach gaps can be accessed.

Advantage :
• Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
• Narrow jaws grip optimally in tight and hard-to-reach places.
• Simple manual release of the jaws with hand knob (Quick Adjust Technology)
• Application also for eccentric components through freely movable, sliding puller jaws on the crossbar.
• Hexagonal profile on the crossbar for secure counterholding.
• Quick-adjustable jaws guarantee immediate adjustment to any spread between 4 mm – 350 mm.

If you have any questions, please do not hesitate to contact us!
