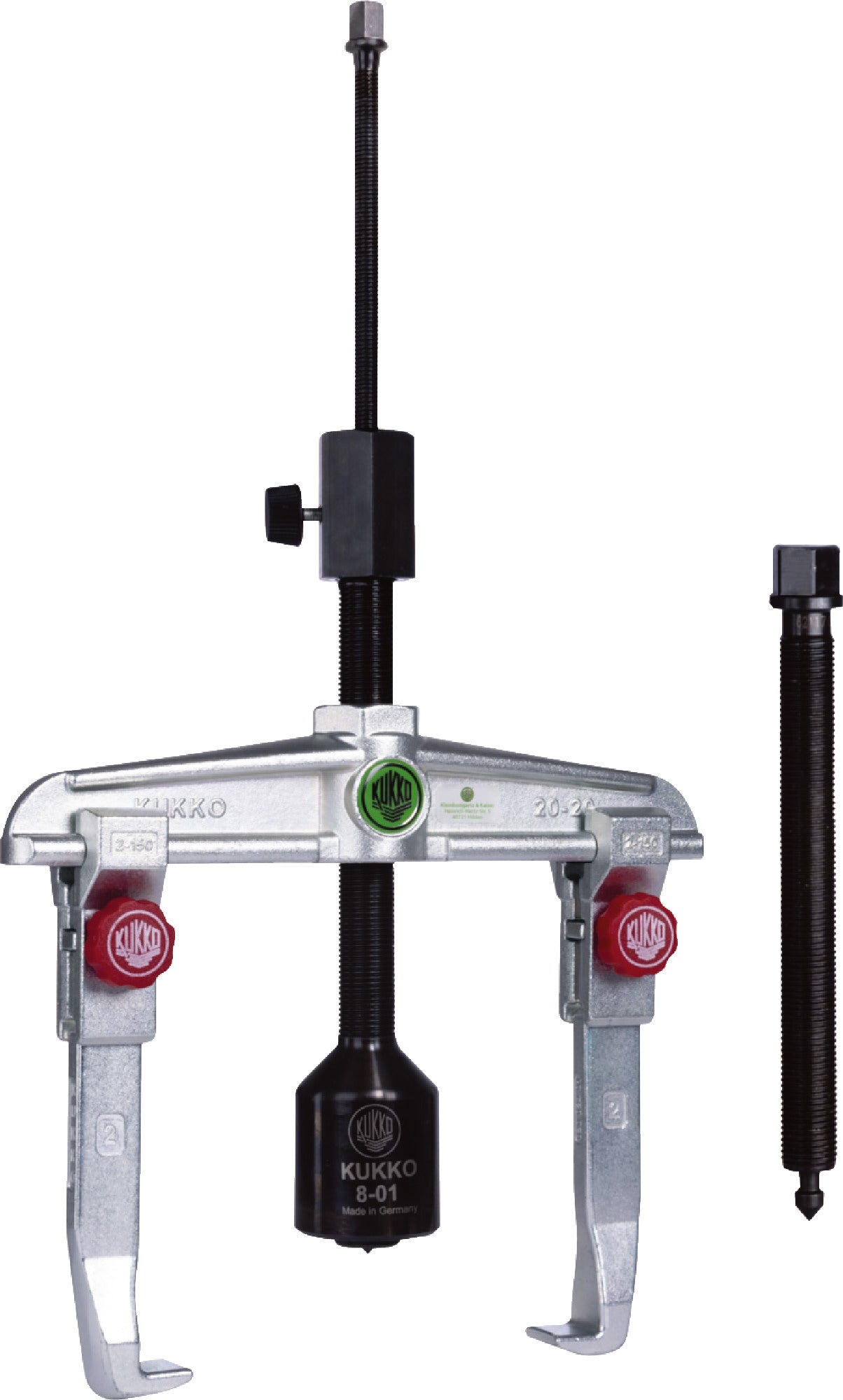

KUKKO - 2-jaw Pullers with Quickly Adjustable Jaws & Hydraulic Spindle

Wide range of available as Japanese high quality products

Equipment : KUKKO - 2-jaw Pullers with Quickly Adjustable Jaws & Hydraulic Spindle
KMVL P/N & Description : Below

Parts number	External Pulling Capacity (mm)	Internal Pulling Capacity (mm)	Arm Length (mm)	Maximum Load (t)
20-2+B	11-160	100-220	150	10
20-20+B	11-200	100-260	150	10
20-3+B	0-250	180-340	200	12
20-30+B	0-350	180-440	200	12

Description :
The 2-jaw universal puller with quickly adjustable jaws and hydraulic spindle is used for particularly safe and user-friendly extraction of extremely tight bearings, gears, and discs in all common sizes for craft, workshop, and industry. The hydraulic spindle achieves an average pulling force of a maximum of 12 t. This allows for the loosening of any component that sits on a shaft and is freely accessible from the outside. For extraction processes with a pulling force of up to 10 t and/or in confined spaces, the mechanical spindle can be used.

Advantage :
• Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
• Simple manual release of the puller jaws via hand knob (Quick Adjust Technology)
• The hydraulic spindle guarantees easy and controlled removal of particularly stubborn parts with minimal effort..
• In limited spatial conditions that require direct access to the component, the mechanical spindle can be used.
• The mechanical spindle has a rotating spindle tip for secure placement on smooth surfaces and during centering.
• Application also for eccentric components through freely movable, sliding puller jaws on the crossbar.

If you have any questions, please do not hesitate to contact us!
