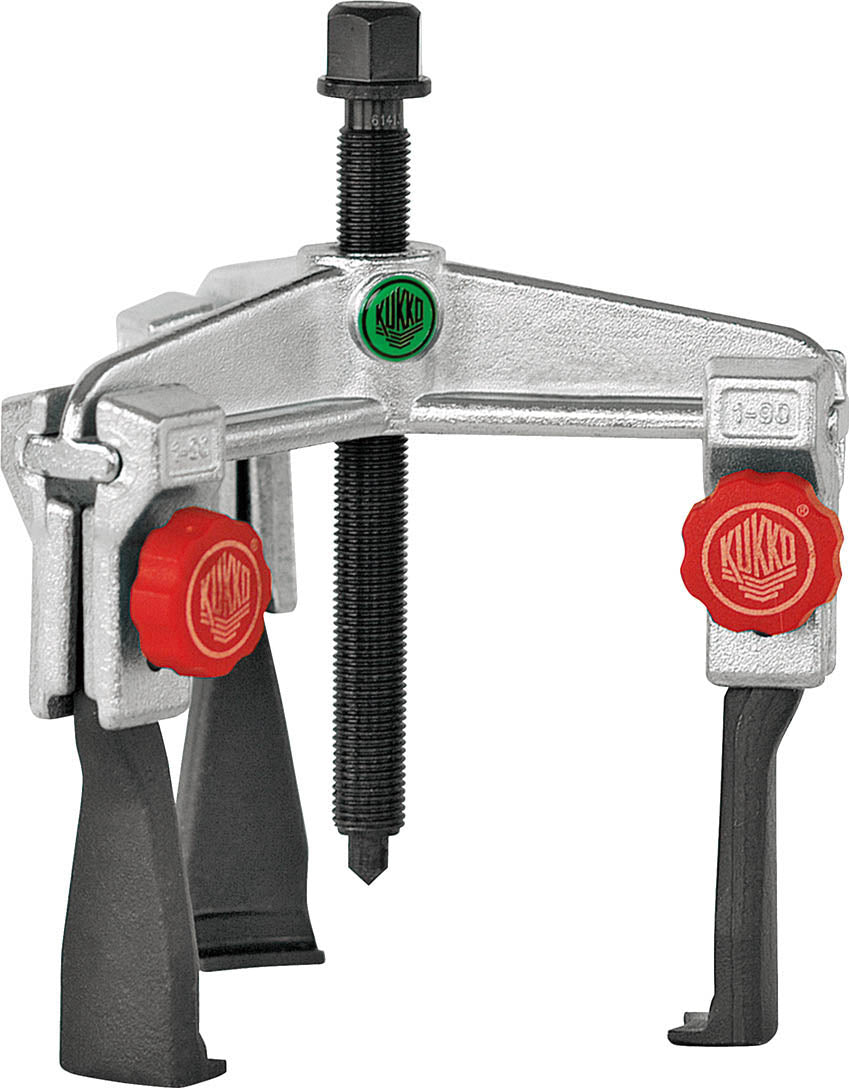

KUKKO - 3-jaw Pullers with Narrow & Quickly Adjustable Jaws

Wide range of available as Japanese high quality products

Equipment : KUKKO - 3-jaw Pullers with Narrow & Quickly Adjustable Jaws
KMVL P/N & Description : Below

Parts number	External Pulling Capacity (mm)	Internal Pulling Capacity (mm)	Arm Length (mm)	Maximum Load (t)
30-1+S	8-90	70-140	100	3
30-10+S	8-130	70-180	100	3
30-2+S	16-160	100-220	150	5
30-20+S	16-200	100-260	150	5
30-3+S	2-250	180-340	200	13.5

Description :
The 3-jaw universal puller with narrow, quick-adjustable jaws is used for the safe and user-friendly extraction of bearings, gears, and disks in all common sizes for crafts, workshops, and industry. It allows for the removal of any component that sits on a shaft and is freely accessible from the outside. The narrow jaws ensure that even tight and difficult-to-access spaces can be reached. The 3-jaw design guarantees even load distribution and thus a particularly secure grip on the part being removed.

Advantage :
• Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
• Narrow jaws grip optimally in tight and hard-to-reach places.
• 3-jaw ensures an even distribution of force and allows for greater pulling forces.
• Simple manual release of the jaws using hand knobs (Quick Adjust Technology).
• Hexagonal profile on the crossbar for secure counter-holding.
• Application also for eccentric components through freely movable, sliding puller jaws on the crossbar.

If you have any questions, please do not hesitate to contact us!
