KUKKO - Hydraulic Spindle

Wide range of available as Japanese high quality products

Equipment : KUKKO - Hydraulic Spindle
KMVL P/N & Description : Below

【STANDARD】

Parts number	Bolt size (mm)	Bolt Head (mm)	Max. Tensile force (kN)	Max. Tractive force (t)	Suitable for

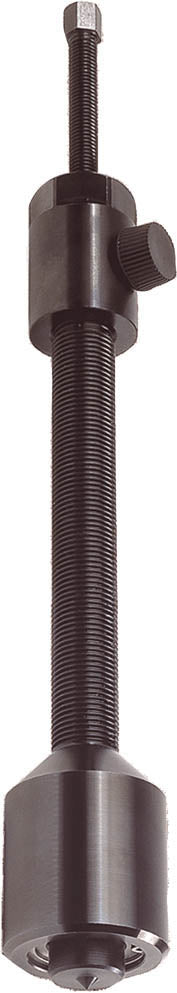

8-01	G1/2"	T-handle	100	10	12-4,12-5,18-2 20-2,20-20 20-20-3,30-2 30-2-3,30-20 41-5,42-5 205-02,206-02 207-02
8-02	G3/4"	T-handle	120	12	12-6,12-7 18-3,20-3 20-30,30-3 205-1,205-2 205-3,206-1 206-2,206-3 207-1,207-2 207-3

【LONG】

Parts number	Bolt size (mm)	Bolt Head (mm)	Max. Tensile force (kN)	Max. Tractive force (t)	Suitable for

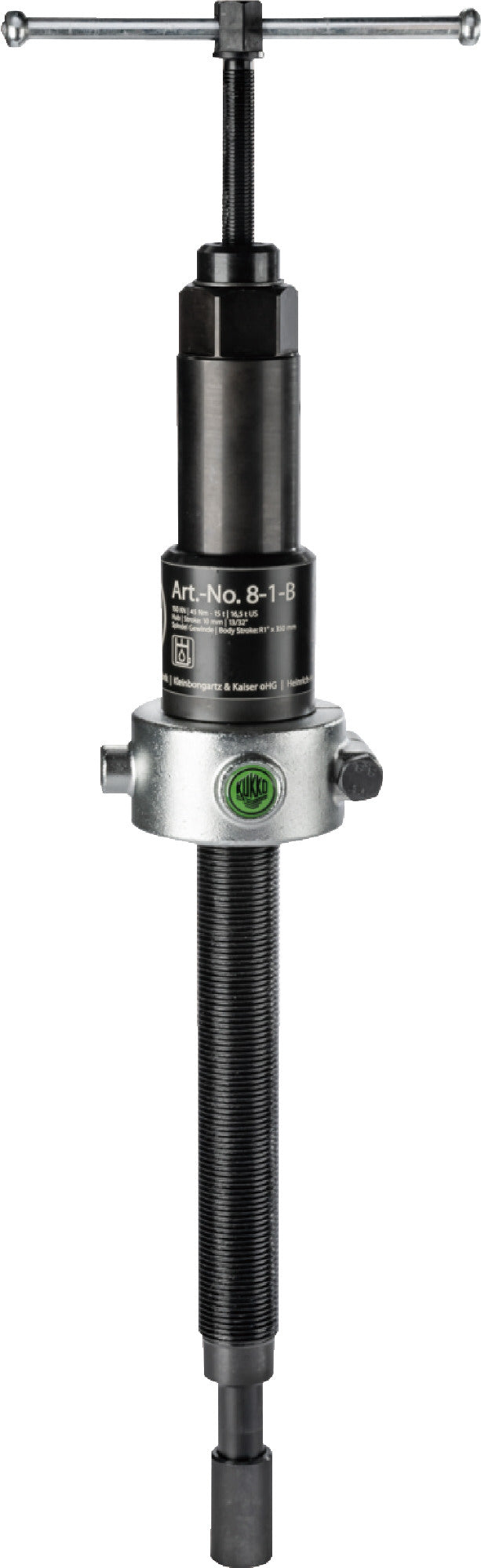

8-1-B	G1"	T-handle	150	15	11-0,18-4 20-4,20-40
8-1-F	G1"	T-handle	150	15	46-1,46-2 47-1,47-2
8-2-K	G1" 1/8	T-handle	200	20	11-1A,11-2A
8-2-M	G1" 1/8	T-handle	200	20	18-5,20-5

【SHORT】

Parts number	Bolt size (mm)	Bolt Head (mm)	Max. Tensile force (kN)	Max. Tractive force (t)	Suitable for

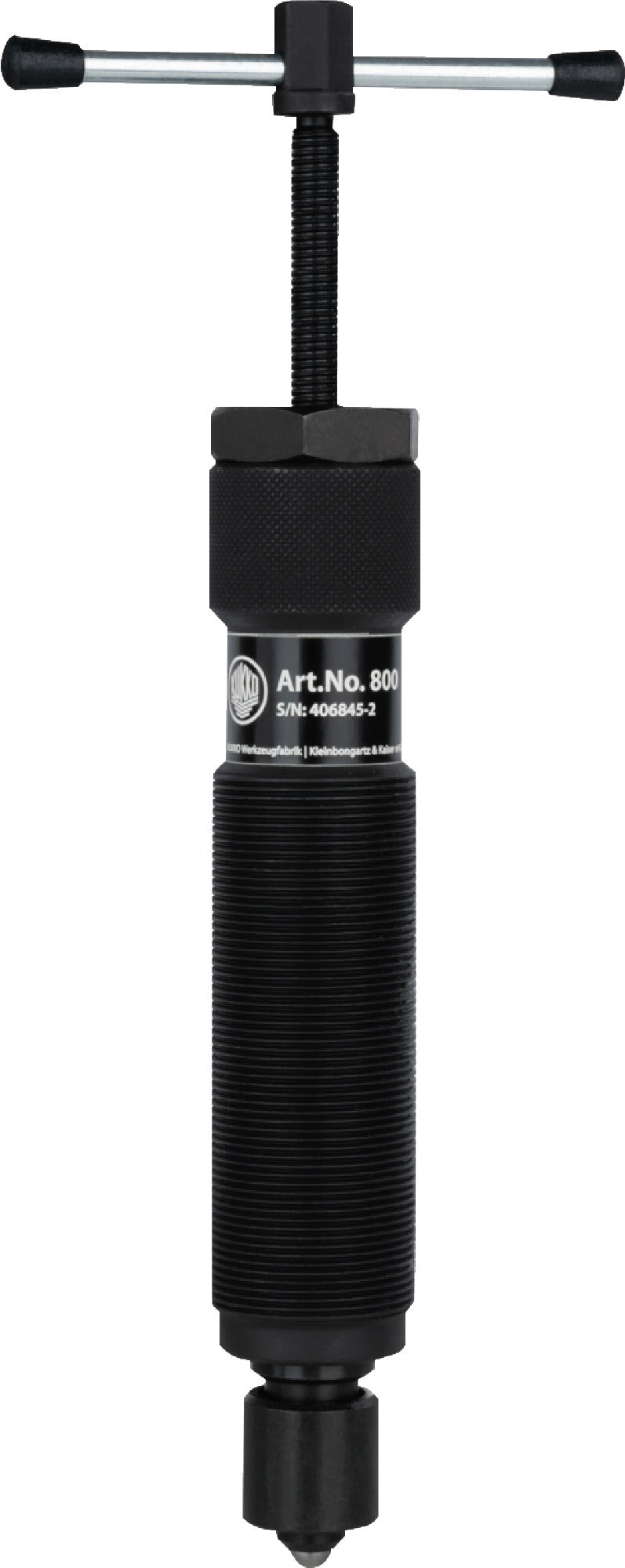

800	W1.1/2"-16	13	100	10
801	W1.1/2"-16	19	150	15
802	M40-1.5	19	200	20

Description :
The hydraulic spindle is the motor of the Puller and achieves a high tension force. The hydraulic spindle is suitable for pulling particularly stubborn bearings, gears, and discs that cannot be loosened with pure muscle power.

Advantage :
• The hydraulic spindle enables easy and controlled removal of particularly stubborn parts with minimal effort.
