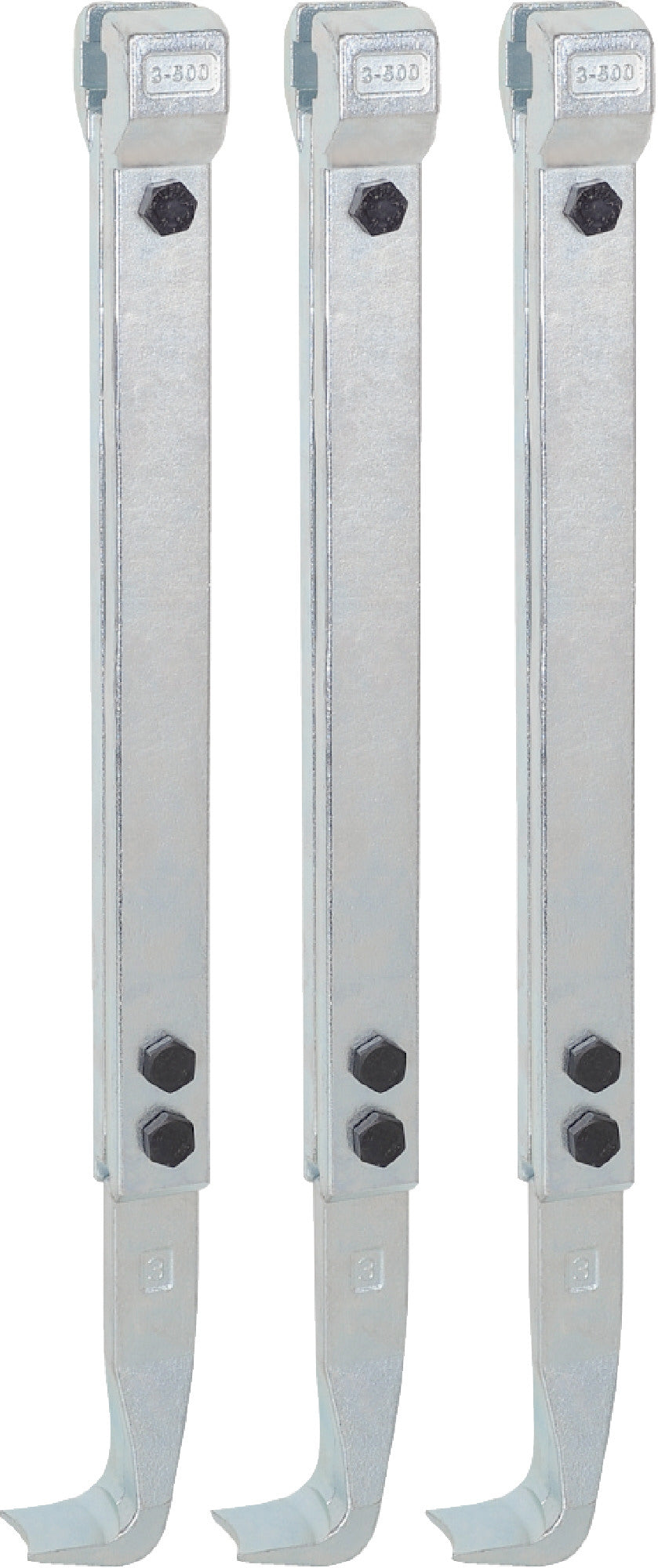

KUKKO - Standard Jaws for replacement

Wide range of available as Japanese high quality products

Equipment : KUKKO - Standard Jaws for replacement
KMVL P/N & Description : Below

Parts number	Jaw Length (mm)	Jaw Width (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Suitable for
0-75-P	75	76	1.5	15	13	16	5	201-0
1-90-P	100	132	3	20	15	31	10	20-1,20-10
1-190-P	200	232	3	20	15	31	10	20-1,20-10
1-250-P	250	282	3	20	15	31	10	20-1,20-10
1-400-P	400	432	3	20	15	31	10	20-1,20-10
2-150-P	150	193	4	24	18	40	9	20-2,20-20
2-300-P	300	343	4	24	18	40	9	20-2,20-20
3-200-P	200	255	4	35	37	67	20	20-3,20-30 20-4,20-40
3-250-P	250	300	4	35	37	67	20	20-3,20-30 20-4,20-40
3-300-P	300	350	4	35	37	67	20	20-3,20-30 20-4,20-40
3-400-P	400	450	4	35	37	67	20	20-3,20-30 20-4,20-40
3-500-P	500	550	4	35	37	67	20	20-3,20-30 20-4,20-40
0-75-S	75	76	1.5	15	13	16	5	201-0
1-90-S	100	132	3	20	15	31	10	30-1,30-10
1-190-S	200	232	3	20	15	31	10	30-1,30-10
1-250-S	250	282	3	20	15	31	10	30-1,30-10
1-400-S	400	432	3	20	15	31	10	30-1,30-10
2-150-S	150	193	4	24	18	40	9	30-2,30-20
2-300-S	300	343	4	24	18	40	9	30-2,30-20
3-200-S	200	255	4	35	37	67	20	11-0,11-1 11-2,30-3
3-250-S	250	300	4	35	37	67	20	11-0,11-1 11-2,30-3
3-300-S	300	350	4	35	37	67	20	11-0,11-1 11-2,30-3
3-400-S	400	450	4	35	37	67	20	11-0,11-1 11-2,30-3
3-500-S	500	550	4	35	37	67	20	11-0,11-1 11-2,30-3

* -P = For 2-jaws (2 jaws are included per 1pc)
* -S = For 3-jaws (3 jaws are included per 1pc)

Description :
The robust jaws guarantee a particularly secure removal of bearings, gears, and discs.

Advantage :
The movable, sliding jaws on the crossbar allow for the extraction of eccentric components.
