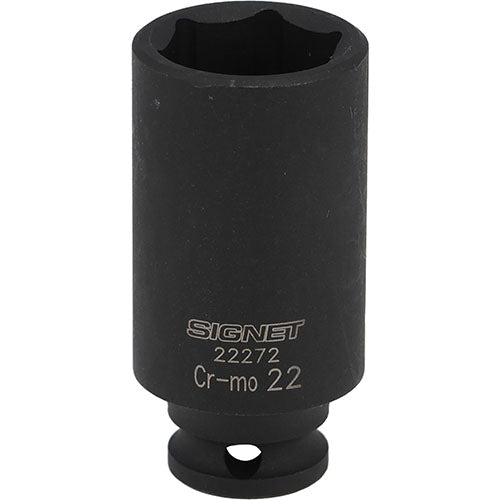

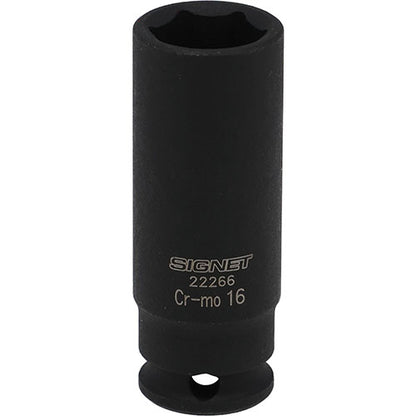

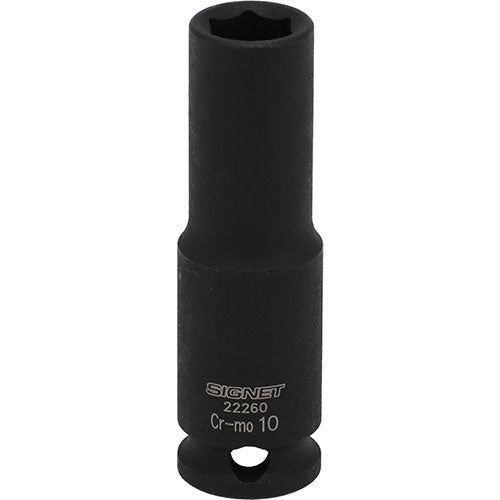

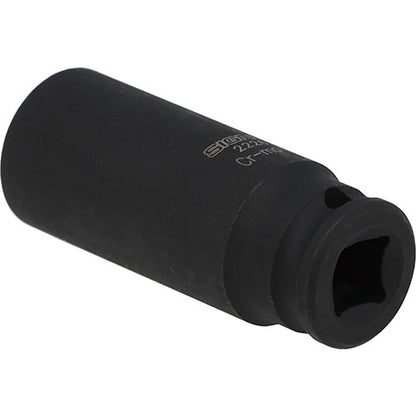

SIGNET - 9.5SQ-3/8DR Socket (mm) / For Impact

SIGNET - 9.5SQ-3/8DR Socket (mm) / For Impact

0₫
0₫
Sale Sold out
Tax included. Shipping calculated at checkout.

Wide range of available as Japanese high quality products

Equipment : SIGNET - 9.5SQ Socket (mm) / For Impact
KMVL P/N : Below

Parts
number		 Type SIZE
(mm)		 Tip
O.D (mm)		 Drive End
O.D (mm)		 Overall Length
(mm)

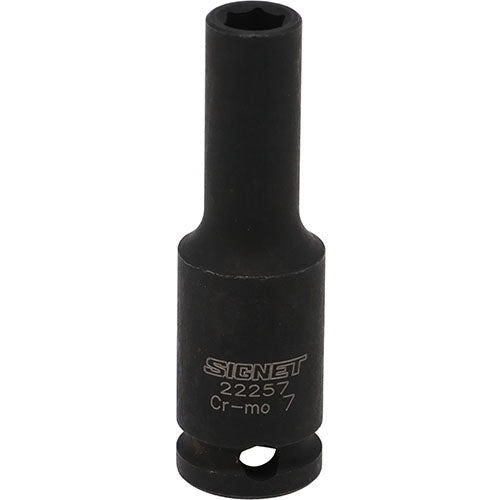

22257 Deep Impact 7 12.5 20.0 63.0

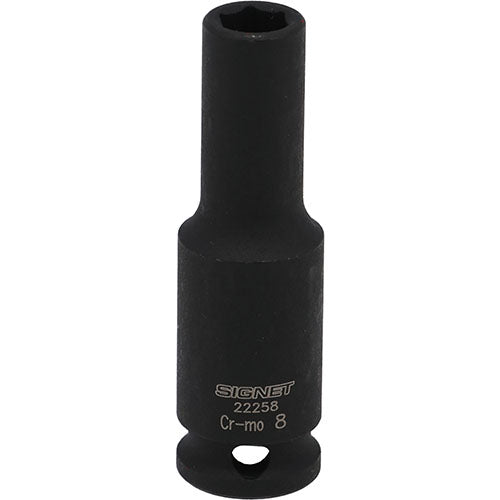

22258 Deep Impact 8 13.5 20.0 63.5

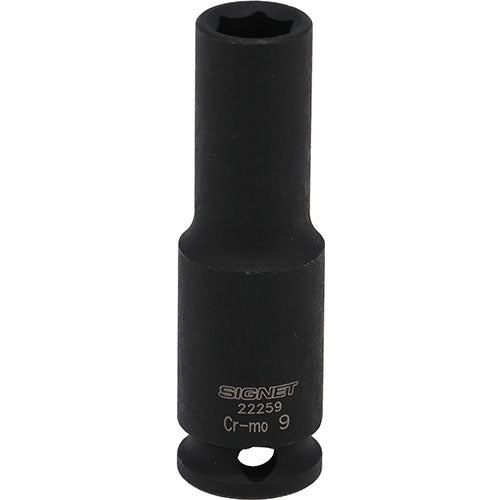

22259 Deep Impact 9 15.0 20.0 63.0
22260 Deep Impact 10 16.0 20.0 63.5

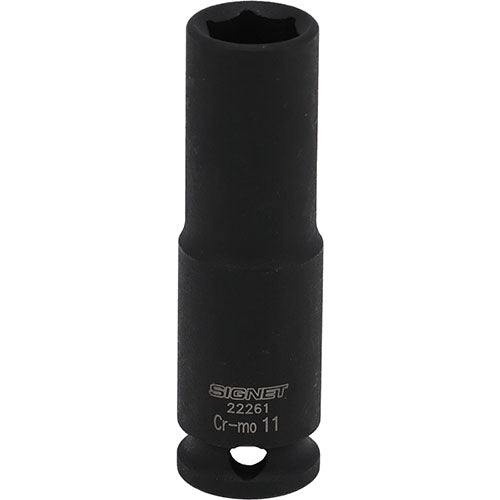

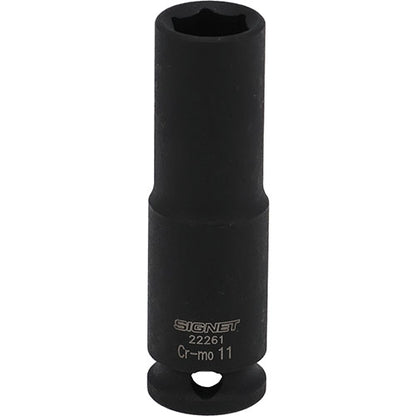

22261 Deep Impact 11 17.0 20.0 63.5

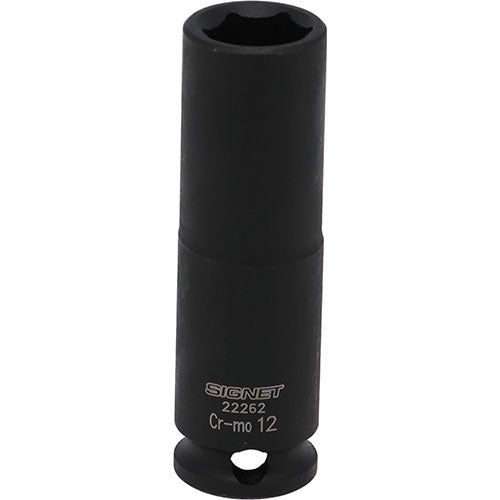

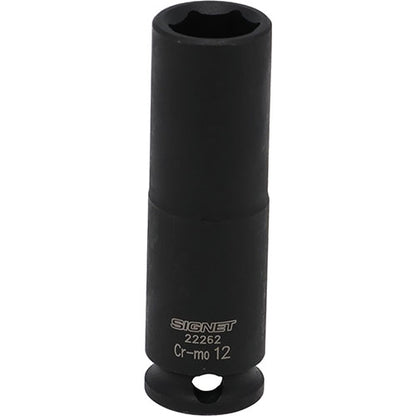

22262 Deep Impact 12 18.5 20.0 63.5

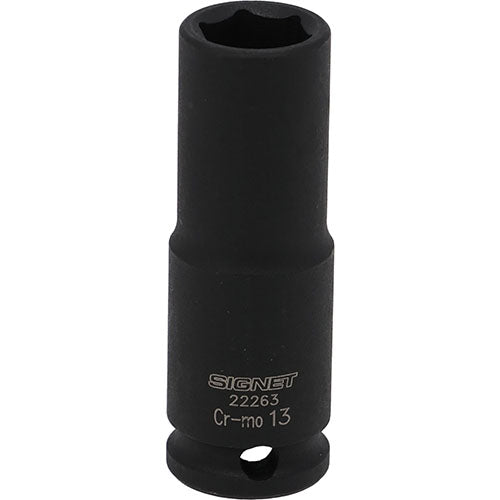

22263 Deep Impact 13 20.0 22.0 63.5

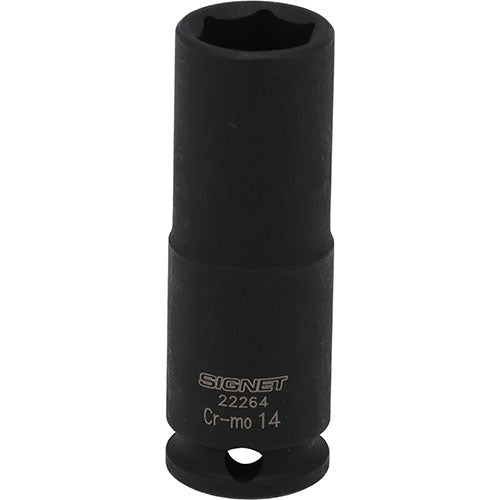

22264 Deep Impact 14 21.0 22.0 63.5

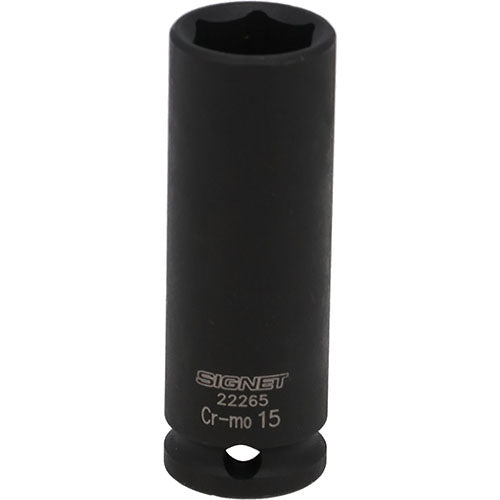

22265 Deep Impact 15 22.0 22.0 63.5

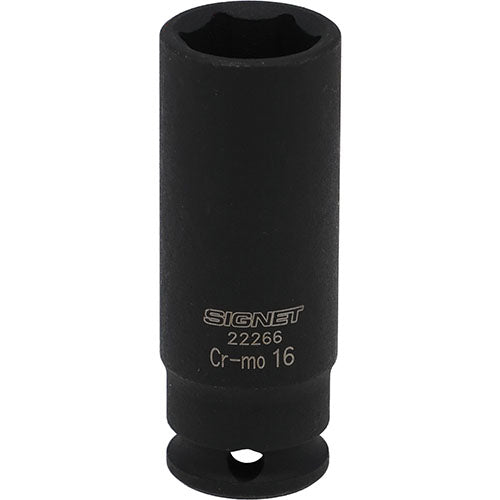

22266 Deep Impact 16 24.0 22.0 63.5

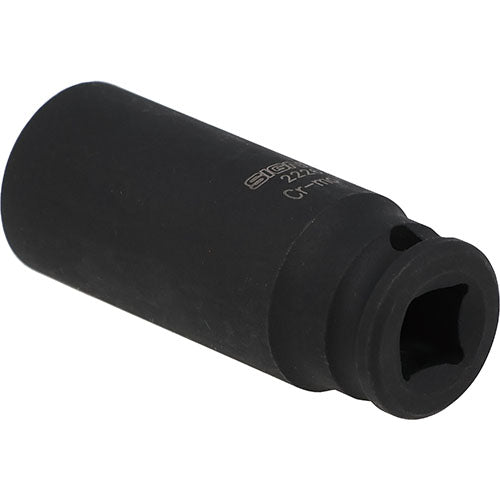

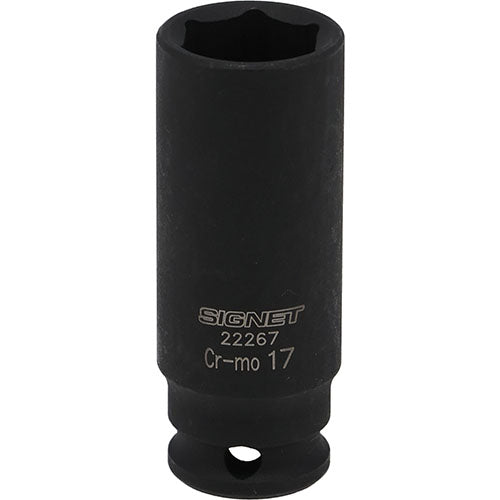

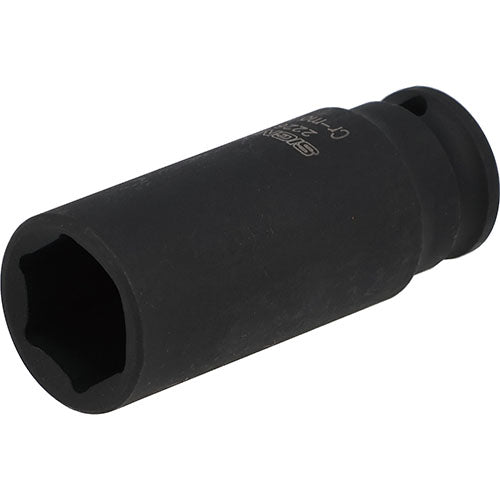

22267 Deep Impact 17 26.0 22.0 63.0

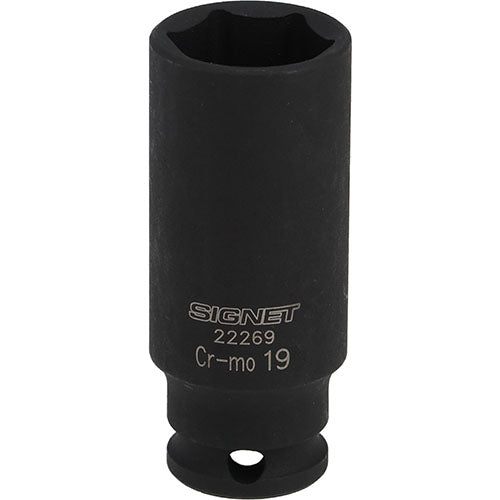

22269 Deep Impact 19 28.0 22.0 63.0

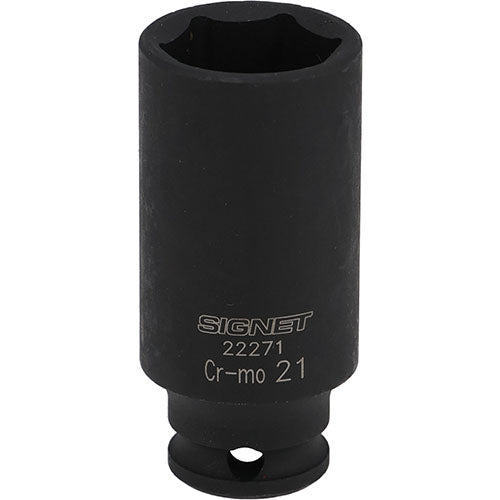

22271 Deep Impact 21 30.0 22.0 63.0
22272 Deep Impact 22 32.0 22.0 63.0


Parts
number		 Product Socket
SIZE
(mm)		 Socket
Parts
Number		 QTY
Bag
22552 O-ring for Impact socket 7
8
9
10
11
12		 22257
22258
22259
22260
22261
22262		 5pcs
22554 O-ring for Impact socket 13
14
15
16
17
19
21
22		 22263
22264
22265
22266
22267
22269
22271
22272		 5pcs
22572 Pin for Impact socket 7
8
9
10
11
12		 22257
22258
22259
22260
22261
22262		 5pcs
22574 Pin for Impact socket 13
14
15
16
17
19
21
22		 22263
22264
22265
22266
22267
22269
22271
22272		 5pcs

Remarks :
- The price for PINs and O-rings is per bag (5 pieces).

Important Notice :
Pins and O-rings are not included with the socket.
For safe operation, please make sure to use the appropriate pin and ring set when using impact sockets.
Failure to do so may result in socket damage or personal injury.
