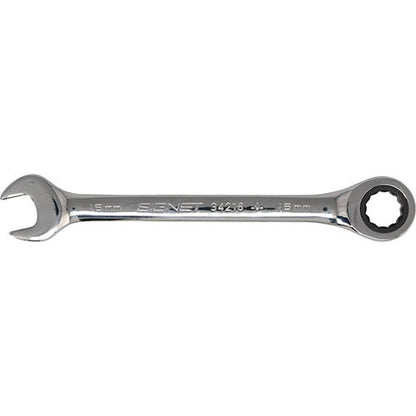

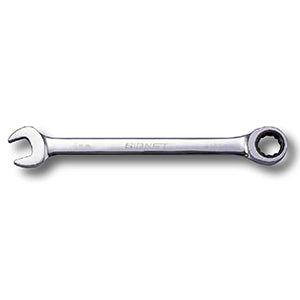

SIGNET - 60~75 Gear SIGNET wrench (mm)

SIGNET - 60~75 Gear SIGNET wrench (mm)

Regular price 0₫
Regular price Sale price 0₫
Sale Sold out
Tax included. Shipping calculated at checkout.

Wide range of available as Japanese high quality products

Equipment : 60~75 Gear SIGNET wrench (mm)
KMVL P/N : Below

Parts
number
SIZE
(mm)
Gear
number
Overall Length
(mm)
Wrench
Width / Thickness
(mm)
Ring end
Width / Thickness
(mm)

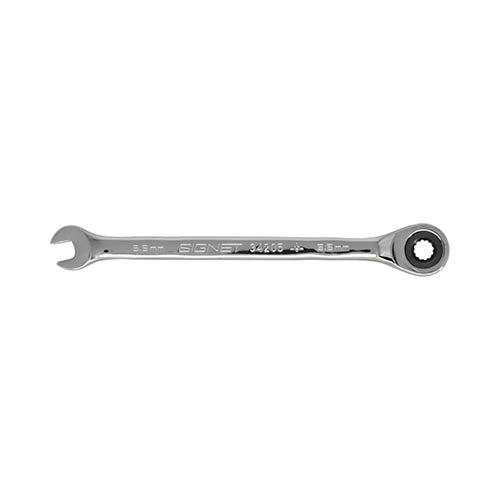

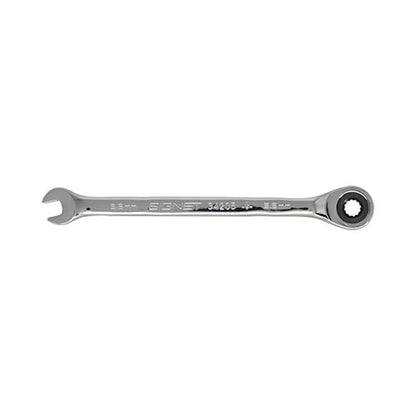

34205 5.5 60 125 15.2 / 5.3 17.6 / 6.7
34206 6 60 125 15.2 / 5.8 17.6 / 6.7

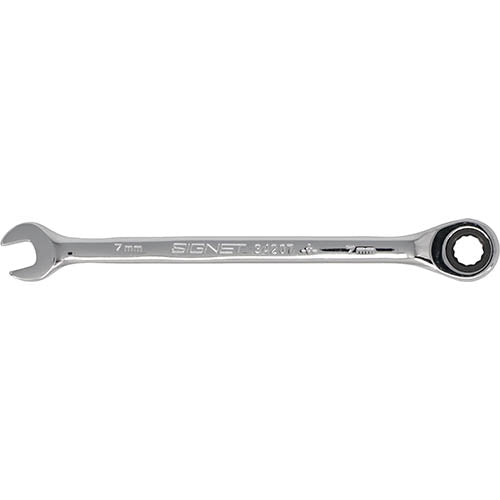

34207 7 60 133 17.1 / 6.3 18.2 / 6.7
34208 8 60 140 20.3 / 6.3 18.6 / 7.1

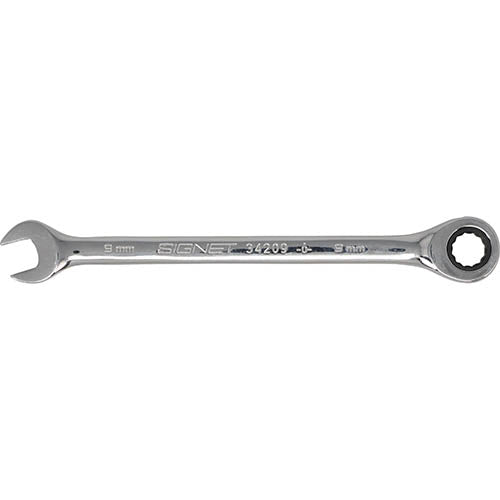

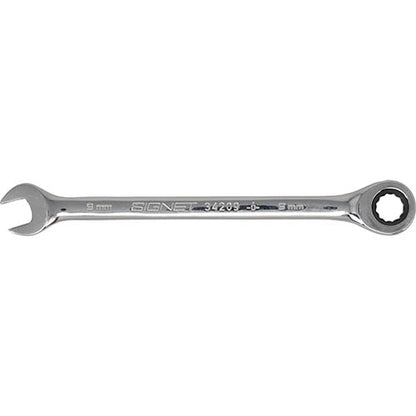

34209 9 60 149 20.3 / 6.6 19.8 / 7.1

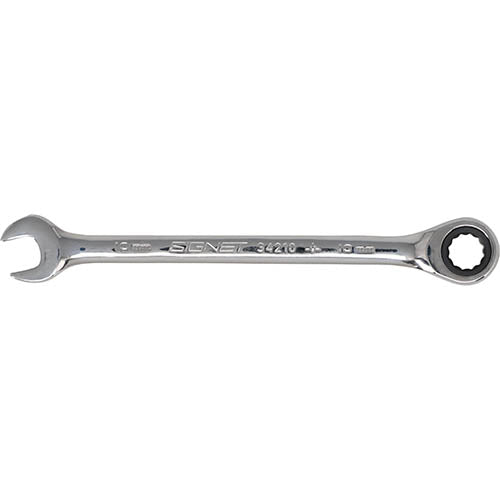

34210 10 72 159 22.7 / 6.9 25.0 / 7.1

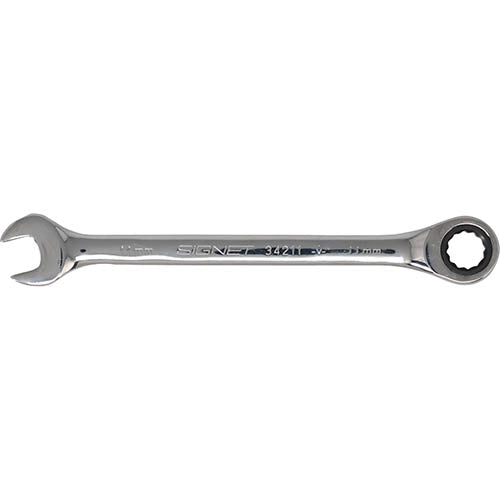

34211 11 72 165 25.0 / 7.1 24.0 / 8.4

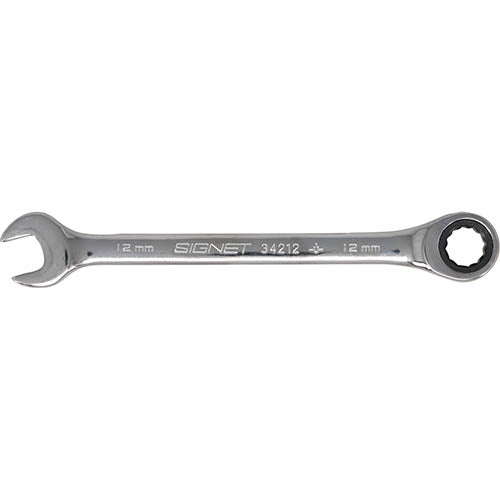

34212 12 72 172 27.4 / 8.0 25.3 / 8.8

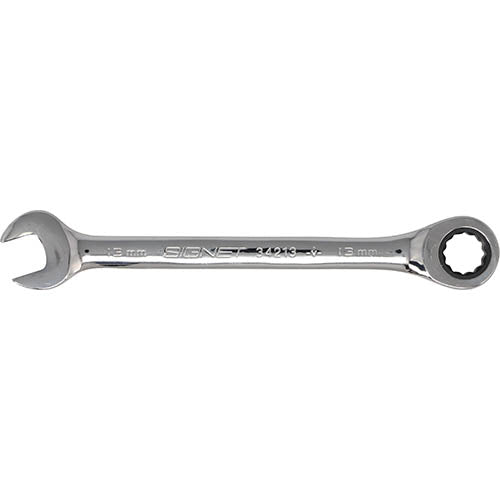

34213 13 72 178 29.9 / 8.9 27.4 / 8.8

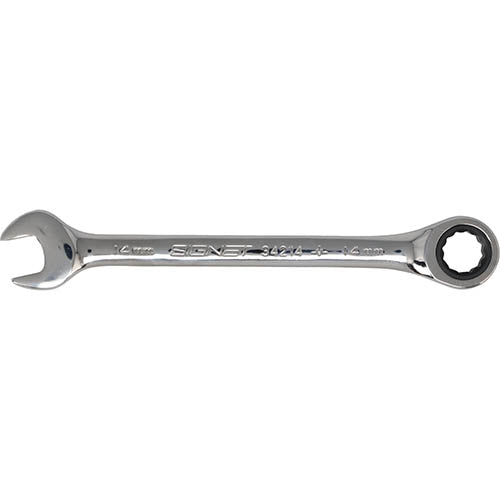

34214 14 72 191 32.0 / 8.9 28.0 / 9.6

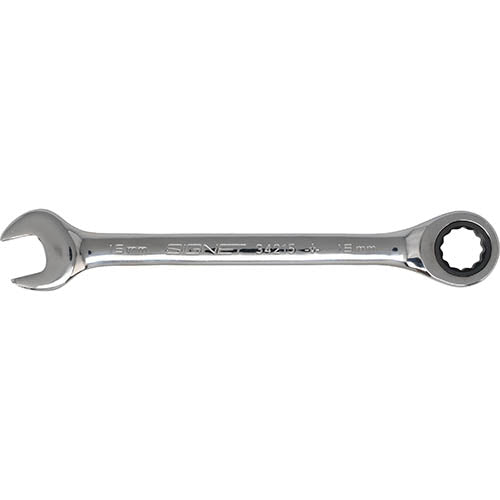

34215 15 72 200 34.5 / 8.9 31.8 / 10.1

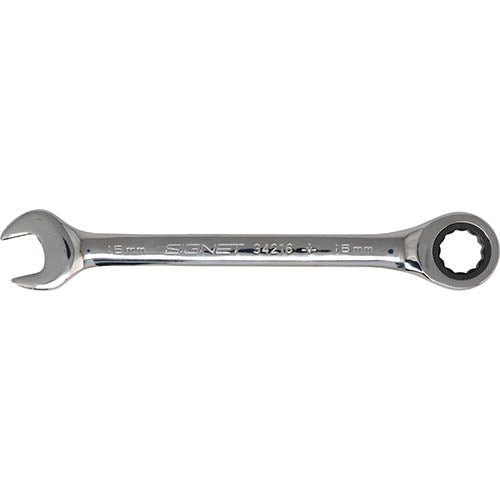

34216 16 72 208 35.3 / 9.6 33.3 / 10.5

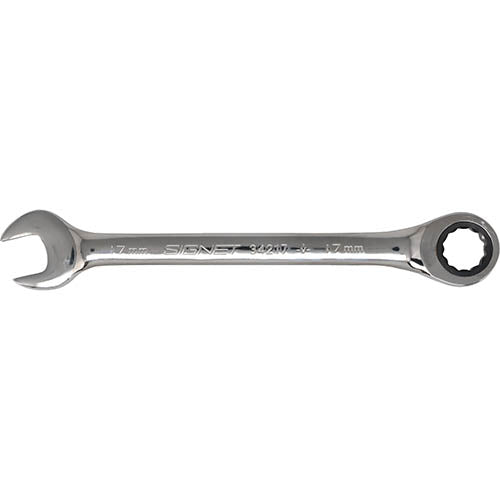

34217 17 72 226 38.7 / 9.8 35.1 / 10.9

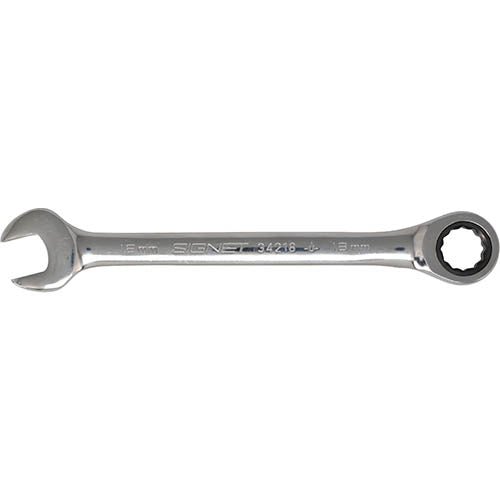

34218 18 72 237 41.0 / 10.0 36.0 / 11.4

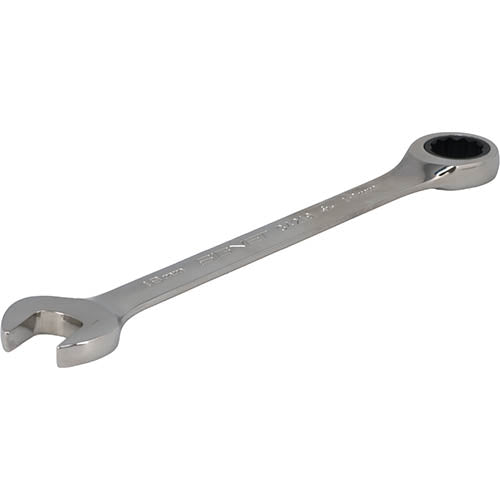

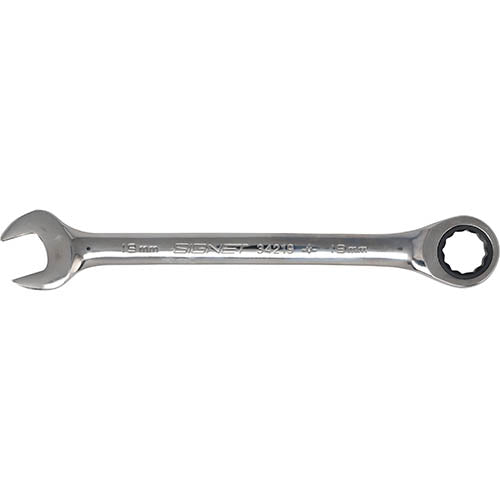

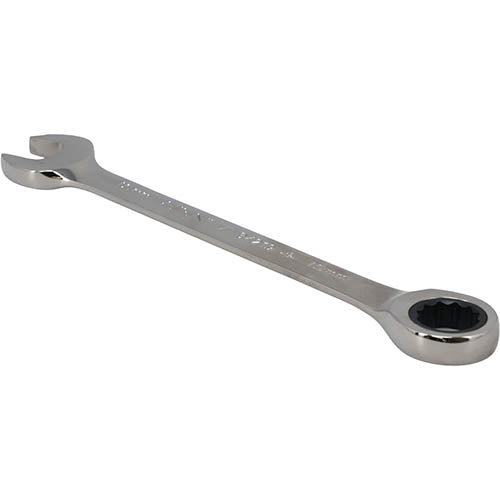

34219 19 75 248 42.1 / 10.3 36.8 / 11.4

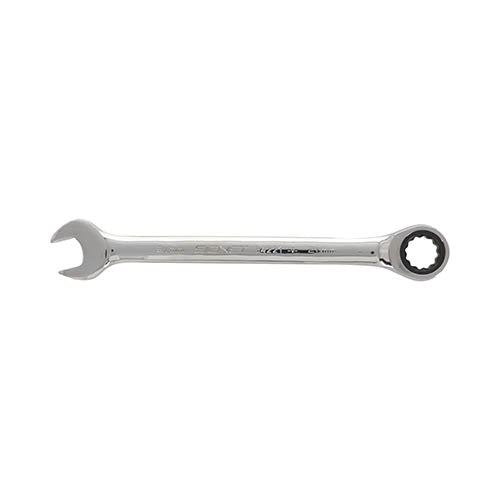

34221 21 72 292 46.8 / 10.4 43.1 / 13.2

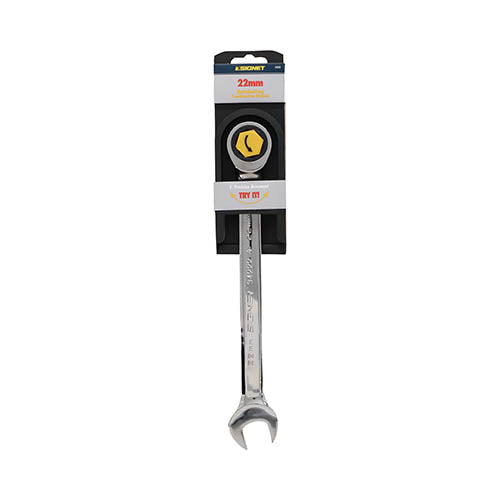

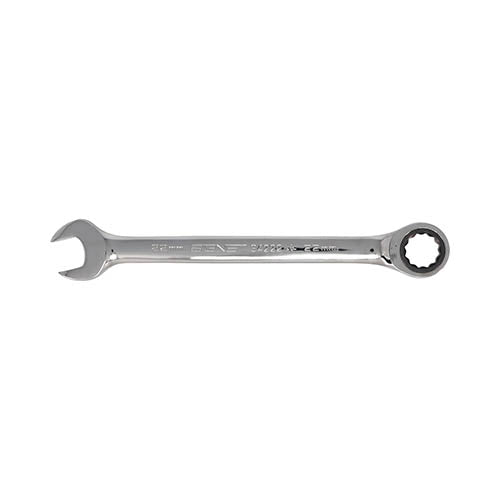

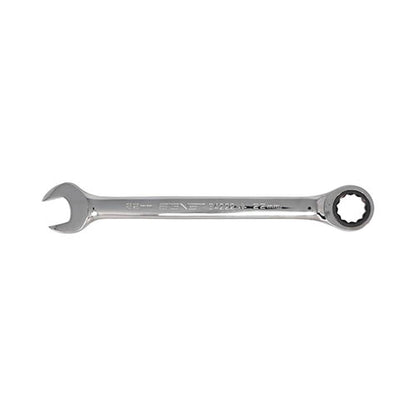

34222 22 72 292 46.8 / 10.4 43.1 / 13.2
34224 24 72 333 53.0 / 11.2 50.1 / 14.7

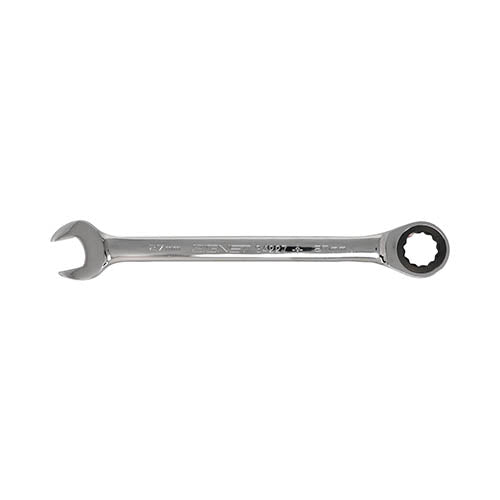

34227 27 72 359 57.2 / 11.8 54.2 / 15.7

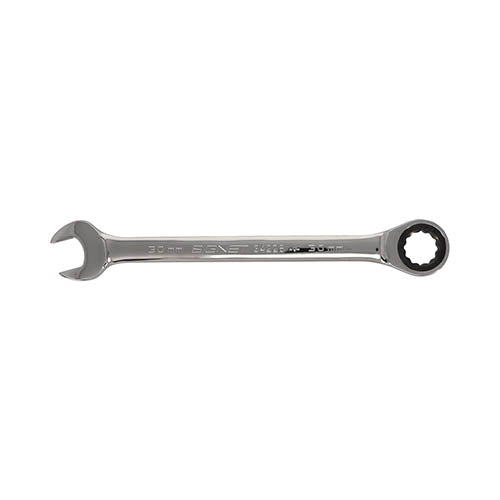

34228 30 72 402 63.5 / 12.8 60.2 / 17.2

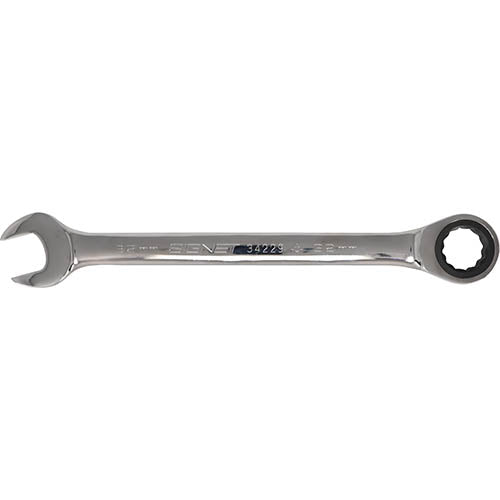

34229 32 72 425 67.6 / 13.2 63.6 / 17.7

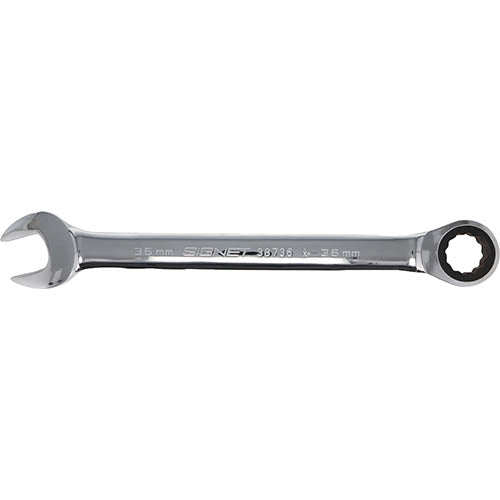

38736 36 60 500 79.9 / 17.0 70.6 / 20.7

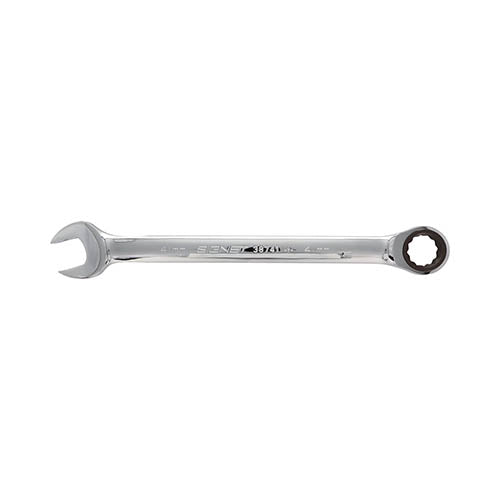

38741 41 60 575 87.4 / 18.6 74.8 / 22.2

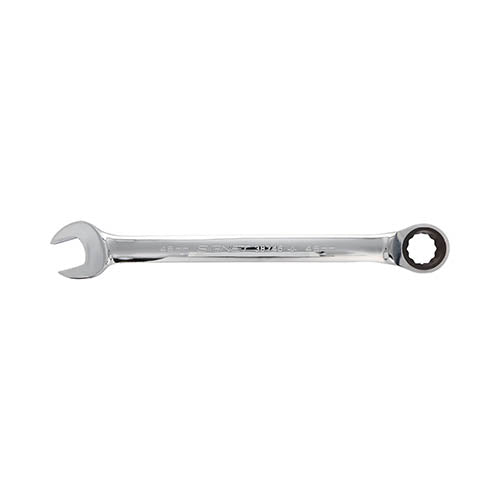

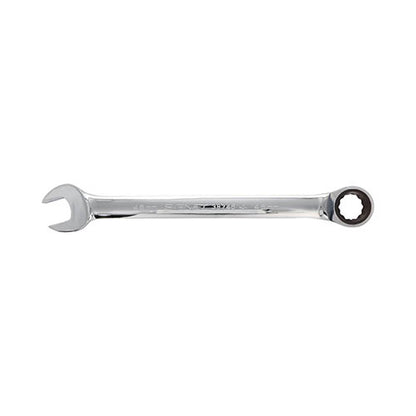

38746 46 60 645 98.6 / 21.8 83.4 / 25.2


Remarks :
- Beautiful mirror-chrome finish
- Combination wrench with patented ratchet gear mechanism in the ring end
- Excellent durability — smooth operation without slipping thanks to the 60-tooth gear design
- Capable of Final Tightening — Despite having a ratchet mechanism, the SIGNET wrench is built strong enough to meet the standard torque requirements of conventional ring wrenches, allowing for full (final) tightening just like a standard wrench.

The wide variety of SIGNET wrenches makes them one of the brand’s most representative products.
In fact, SIGNET was the first company to introduce and popularize this type of wrench in Japan.
Although equipped with a ratchet mechanism, SIGNET wrenches are built strong enough to meet the standard torque requirements of regular ring wrenches, allowing for full tightening just like conventional tools.
As modern vehicles are increasingly designed with limited engine space to maximize cabin room, mechanics often struggle with tight working areas.
In such situations, SIGNET wrenches make the job much easier and faster — their ultra-fine 120-tooth ratchet mechanism ensures smooth and efficient operation even in confined spaces.
What is a SIGNET wrench?
A SIGNET wrench is a ring-end wrench equipped with a ratchet mechanism inside the ring.
