KBL MACHINERY VIETNAM LTD.

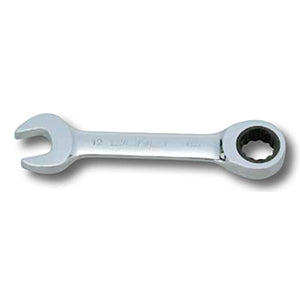

SIGNET - 60~75 Gear Stabby SIGNET Wrench (mm)

SIGNET - 60~75 Gear Stabby SIGNET Wrench (mm)

Regular price 0₫
Regular price Sale price 0₫
Sale Sold out
Tax included. Shipping calculated at checkout.

Wide range of available as Japanese high quality products

Equipment : 60~75 Gear Stabby SIGNET Wrench (mm)
KMVL P/N : Below

Parts
number
SIZE
(mm)
Gear
number
Overall Length
(mm)
Wrench
Width / Thickness
(mm)
Ring end
Width / Thickness
(mm)
34275 5.5 60 80 15.2 / 5.8 17.6 / 6.7
34276 6 60 80 15.2 / 5.8 17.6 / 6.7
34277 7 60 88 17.1 / 6.3 18.2 / 6.7
34241 8 60 88 20.3 / 6.3 18.6 / 7.1
34231 10 72 94 22.7 / 6.9 22.1 / 7.9
34232 11 72 102 25.0 / 7.1 24.0 / 8.4
34233 12 72 105 27.4 / 8.0 25.3 / 8.8
34234 13 72 107 29.9 / 8.9 27.4 / 8.8
34235 14 72 114 32.0 / 8.9 28.0 / 9.6
34236 15 72 118 34.5 / 8.9 31.8 / 10.1
34237 16 72 122 35.3 / 9.6 33.3 / 10.5
34238 17 72 126 38.7 / 9.8 35.1 / 10.9
34239 18 72 130 41.0 / 10.0 36.0 / 11.4
34240 19 75 138 42.1 / 10.3 36.8 / 11.4


Remarks :
- Beautiful mirror-chrome finish
- Combination wrench featuring a patented ratchet gear mechanism in the ring end
- Short-type Signet wrench ideal for work in confined spaces
- Capable of Final Tightening — Despite having a ratchet mechanism, the SIGNET wrench is built strong enough to meet the standard torque requirements of conventional ring wrenches, allowing for full (final) tightening just like a standard wrench.

The wide variety of SIGNET wrenches makes them one of the brand’s most representative products.
In fact, SIGNET was the first company to introduce and popularize this type of wrench in Japan.
Although equipped with a ratchet mechanism, SIGNET wrenches are built strong enough to meet the standard torque requirements of regular ring wrenches, allowing for full tightening just like conventional tools.
As modern vehicles are increasingly designed with limited engine space to maximize cabin room, mechanics often struggle with tight working areas.
In such situations, SIGNET wrenches make the job much easier and faster — their ultra-fine 120-tooth ratchet mechanism ensures smooth and efficient operation even in confined spaces.
What is a SIGNET wrench?
A SIGNET wrench is a ring-end wrench equipped with a ratchet mechanism inside the ring.
