KBL MACHINERY VIETNAM LTD.

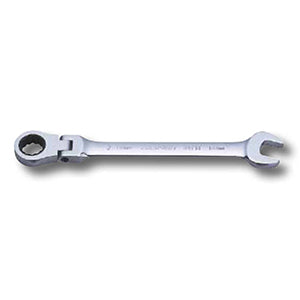

SIGNET - 60~72 Gear Swing SIGNET Wrench (Inch)

SIGNET - 60~72 Gear Swing SIGNET Wrench (Inch)

Regular price 0₫
Regular price Sale price 0₫
Sale Sold out
Tax included. Shipping calculated at checkout.

Wide range of available as Japanese high quality products

Equipment : 60~72 Gear Swing SIGNET Wrench (Inch)
KMVL P/N : Below

Parts
number
SIZE
(mm)
Gear
number
Overall Length
(mm)
Wrench
Width / Thickness
(mm)
Ring end
Width / Thickness
(mm)
34760 5/16 60 140 20.3 / 6.3 18.6 / 7.1
34762 3/8 72 159 22.7 / 6.9 22.1 / 7.9
34763 7/16 72 165 25.0 / 7.1 24.0 / 8.4
34764 1/2 72 178 29.9 / 8.9 27.4 / 8.8
34765 9/16 72 191 32.0 / 8.9 28.0 / 9.6
34766 5/8 72 208 35.3 / 9.6 33.3 / 10.5
34767 11/16 72 226 38.7 / 9.8 35.1 / 10.9
34768 3/4 72 248 42.1 / 10.3 36.8 / 11.4


Remarks :
- Beautiful mirror-chrome finish

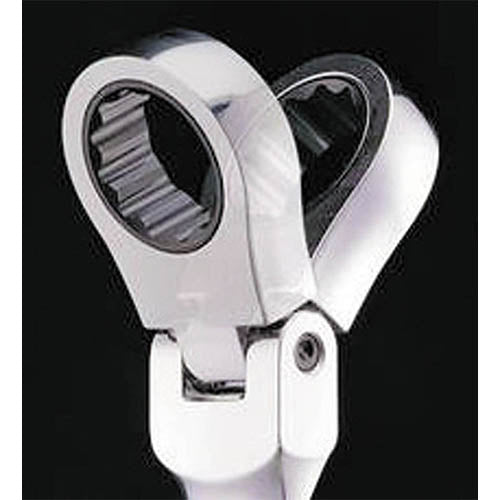

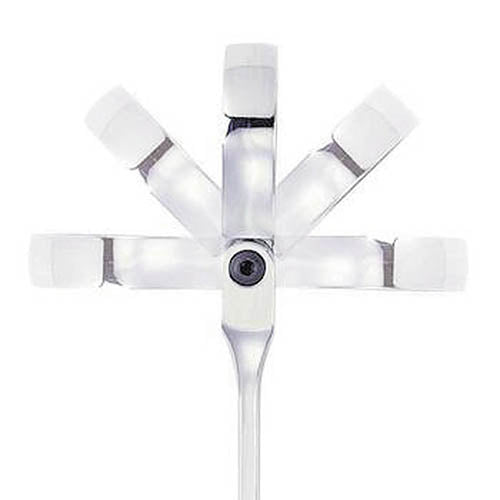

- Equipped with a flexible (pivoting) head
- Capable of Final Tightening — Despite having a ratchet mechanism, the SIGNET wrench is built strong enough to meet the standard torque requirements of conventional ring wrenches, allowing for full (final) tightening just like a standard wrench.

The wide variety of SIGNET wrenches makes them one of the brand’s most representative products.
In fact, SIGNET was the first company to introduce and popularize this type of wrench in Japan.
Although equipped with a ratchet mechanism, SIGNET wrenches are built strong enough to meet the standard torque requirements of regular ring wrenches, allowing for full tightening just like conventional tools.
As modern vehicles are increasingly designed with limited engine space to maximize cabin room, mechanics often struggle with tight working areas.
In such situations, SIGNET wrenches make the job much easier and faster — their ultra-fine 120-tooth ratchet mechanism ensures smooth and efficient operation even in confined spaces.
What is a SIGNET wrench?
A SIGNET wrench is a ring-end wrench equipped with a ratchet mechanism inside the ring.
