◇ Designed with Farmers in Mind Making your job more efficient and safer. Lighter and easier to handle than steel plates.
◇ Product Overview ▶ Super Julight 48 A standard size resin board, ideal for construction and civil engineering projects. Surface: One side with 4mm convex pattern, making it slip-resistant and easy to walk on. Back: Flat surface, perfect for protecting asphalt and concrete. Weight: Approximately 40kg, lightweight but durable, flexible, and easy to handle compared to steel plates.

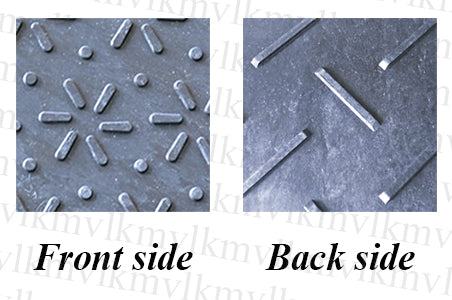

▶ Super Julight 48W A high-grade version based on Super Jurite 48, with a slip-resistant pattern on both sides. Surface: 4mm convex pattern for slip resistance, ideal for pedestrian and vehicle traffic. Back: 5mm convex pattern to improve grip on the ground, preventing slipping. Ideal for sites with heavy machinery and truck traffic.

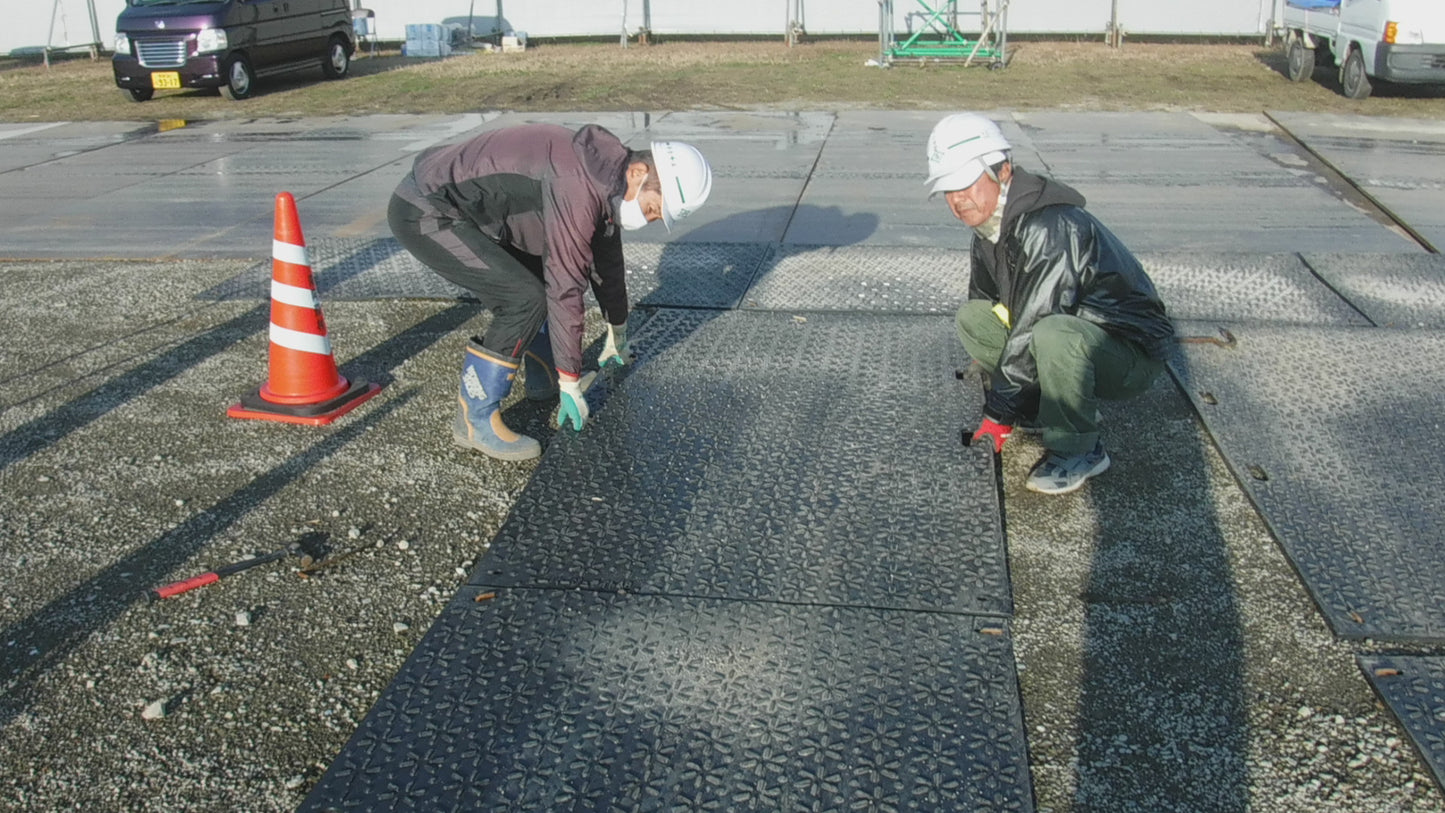

◇ Features & Benefits Lighter than steel plates (approximately 40kg), easy to install and remove. No need for cranes or heavy equipment; can be installed manually. Highly durable and weather-resistant, designed for repeated use. Slip-resistant coating for safe walking and vehicle traffic.

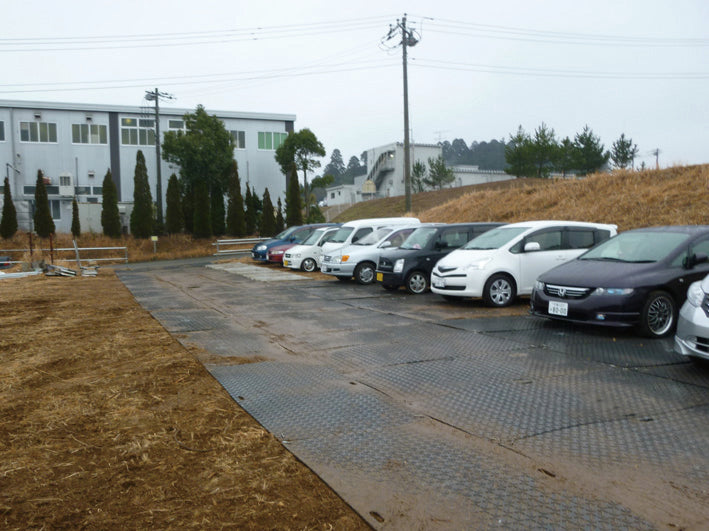

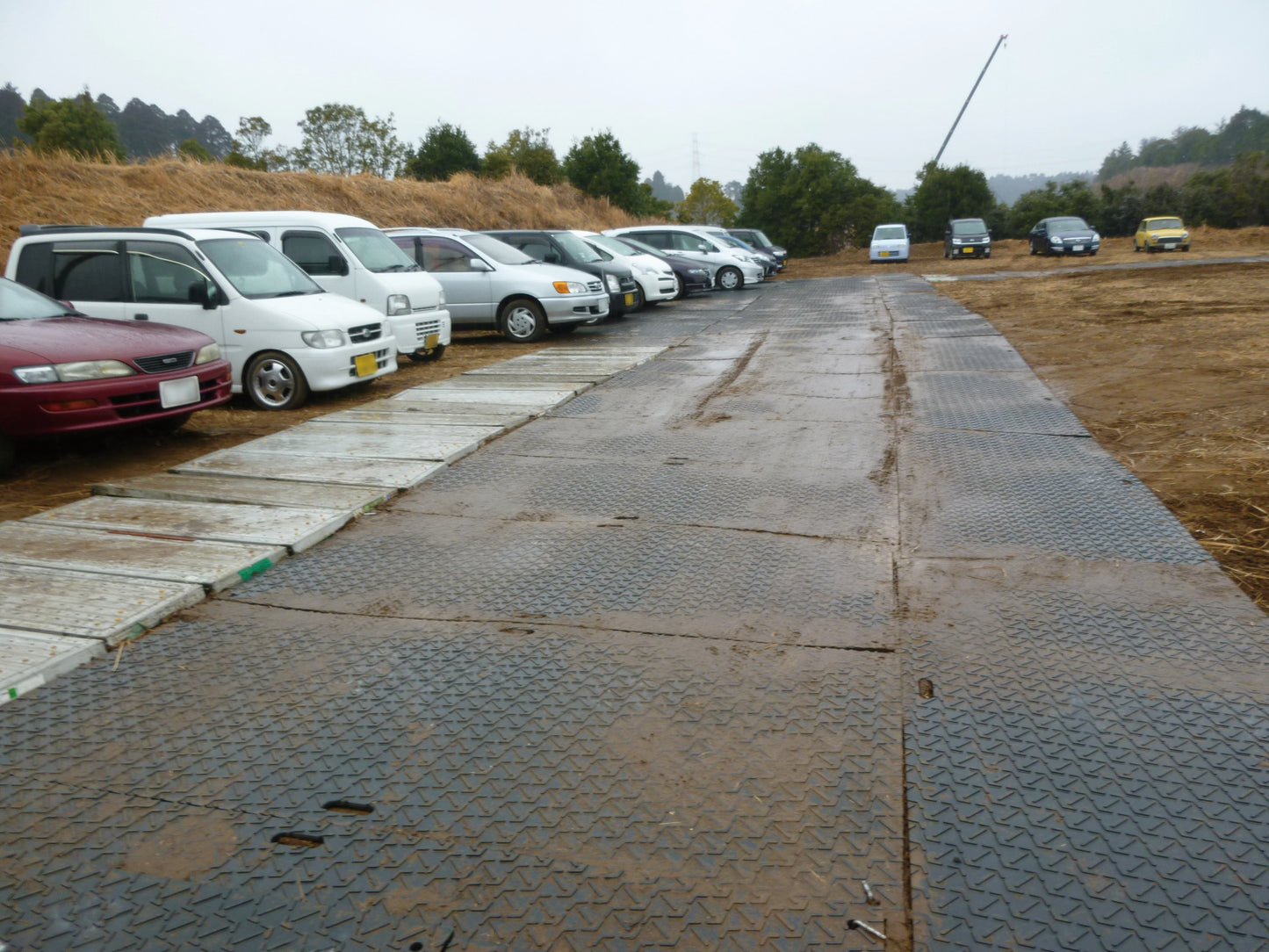

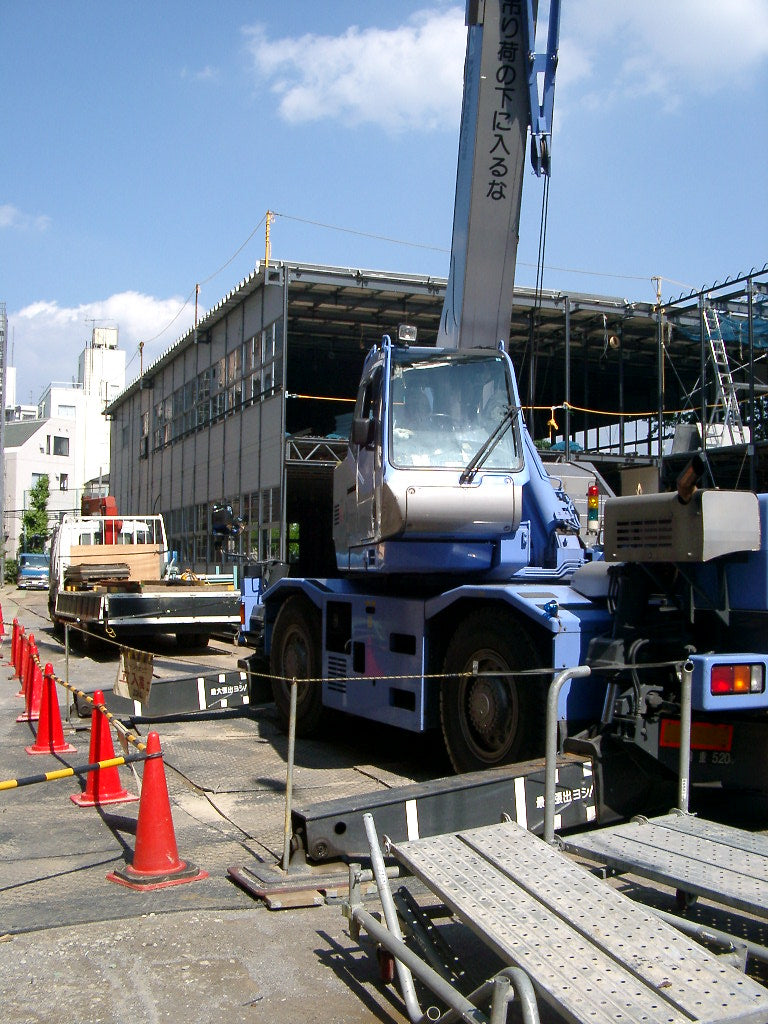

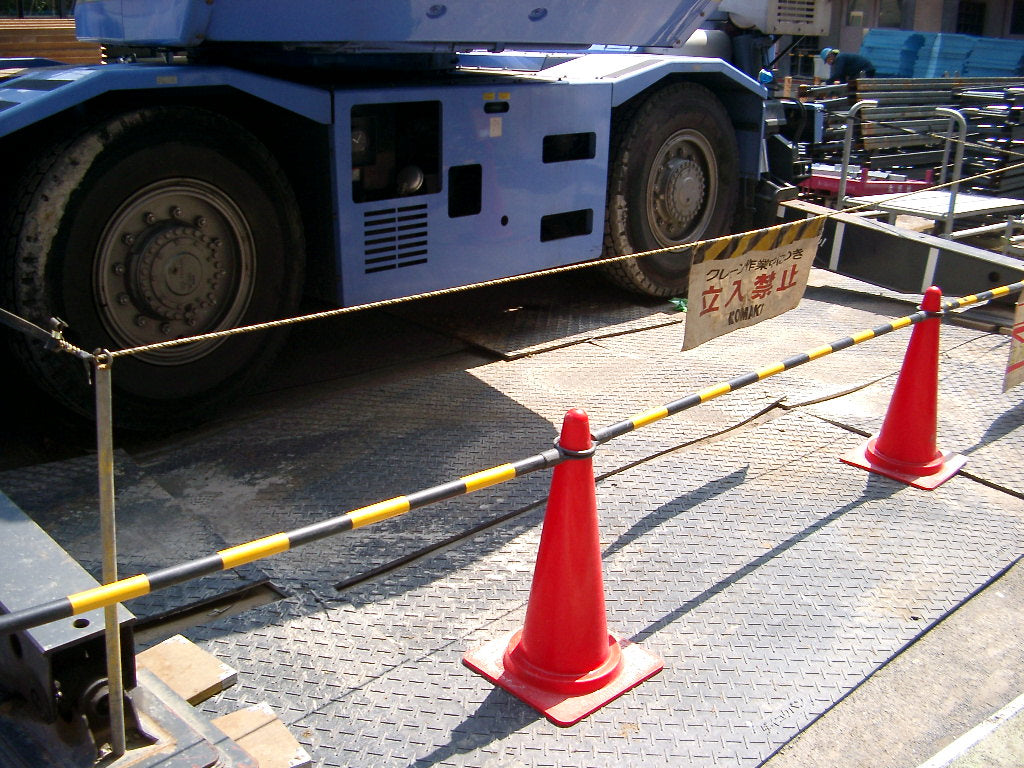

◇ Main Applications Protecting surfaces from heavy machinery and truck traffic in construction and civil engineering sites. Laying on top of steel plates for added safety in slippery locations. Temporary protection of asphalt and concrete surfaces. Ground protection for temporary parking lots, rented land, or construction sites. Providing safety for pedestrians and workers in muddy or wet areas during rainy weather. Used in disaster recovery sites (e.g., after typhoons or earthquakes) for temporary footbridges and worksite safety.

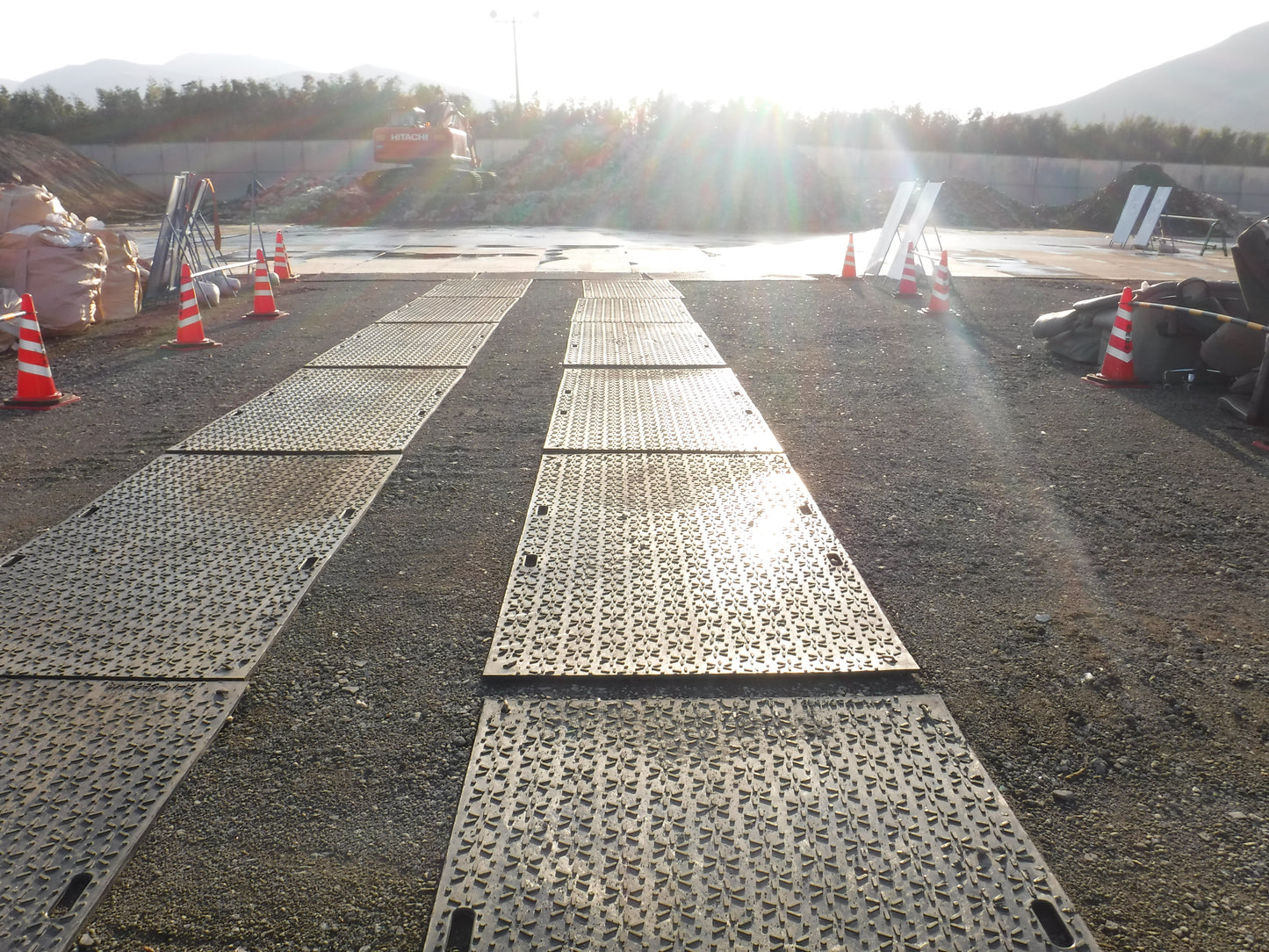

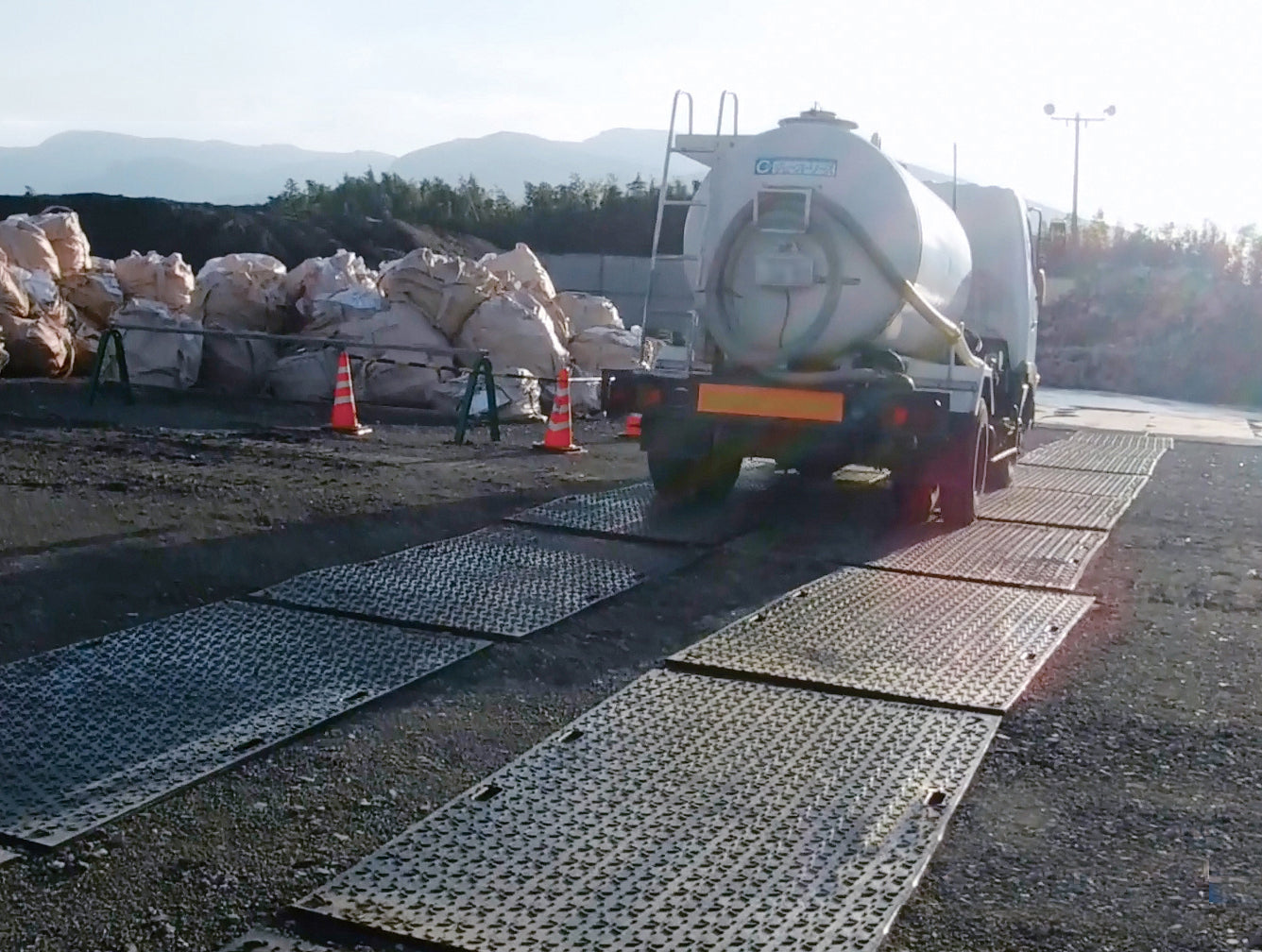

◇ Case Studies / Japan : Use in Kumamoto Earthquake Reconstruction After the 2016 Kumamoto Earthquake, Super Jurite 48 was introduced to assist in the recovery work in Minamiaso Village. In the disaster waste temporary storage areas, where locations and needs change daily, lightweight and portable Super Jurite 48 helped create a safer, more efficient work environment. It has been widely used in disaster recovery efforts after typhoons, floods, and other natural disasters.
◇ Products code and size
Code
W x L (mm)
A (mm)
B+C+D (mm)
Kgs
Joint holes

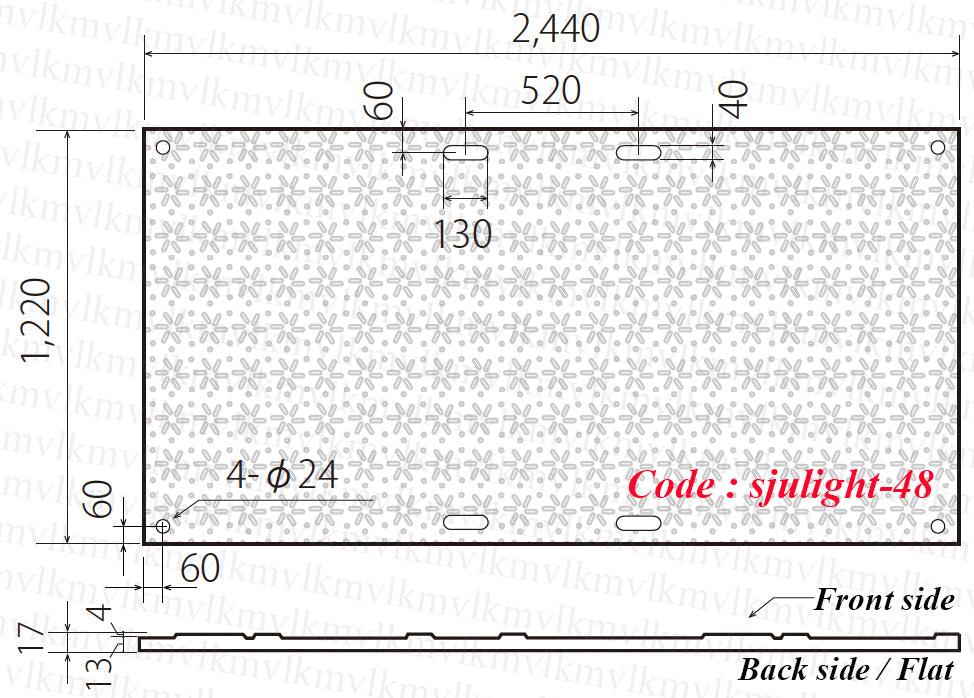

sjulight-48
1220 x 2440
17mm
13 + 4 + 0mm
40.0
4-φ24

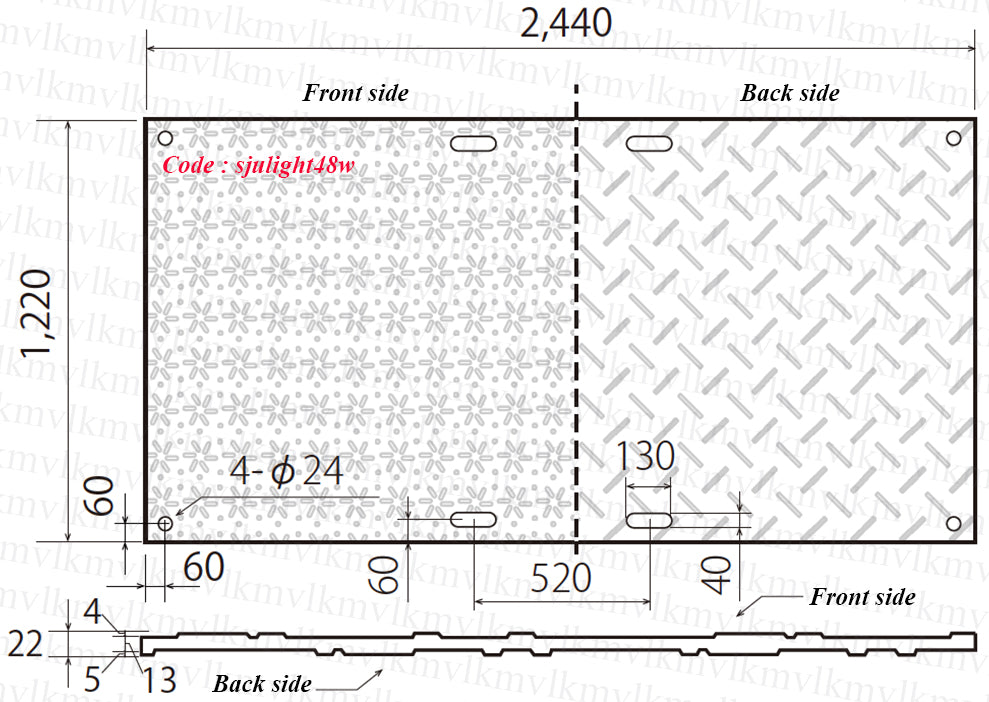

sjulight-48w
1220 x 2440
22mm
13 + 4 + 5mm
40.0
4-φ24
A : Total Thickness (Including anti-slip height) B : Base Thickness C : Anti-Slip Height(Front side) D : Anti-Slip Height(Back side)
◇ Eco-Conscious Choice Manufactured from recycled polyethylene, Super Julight 48 / 48W combines sustainability with durability—perfect for construction and civil engineering projects.
