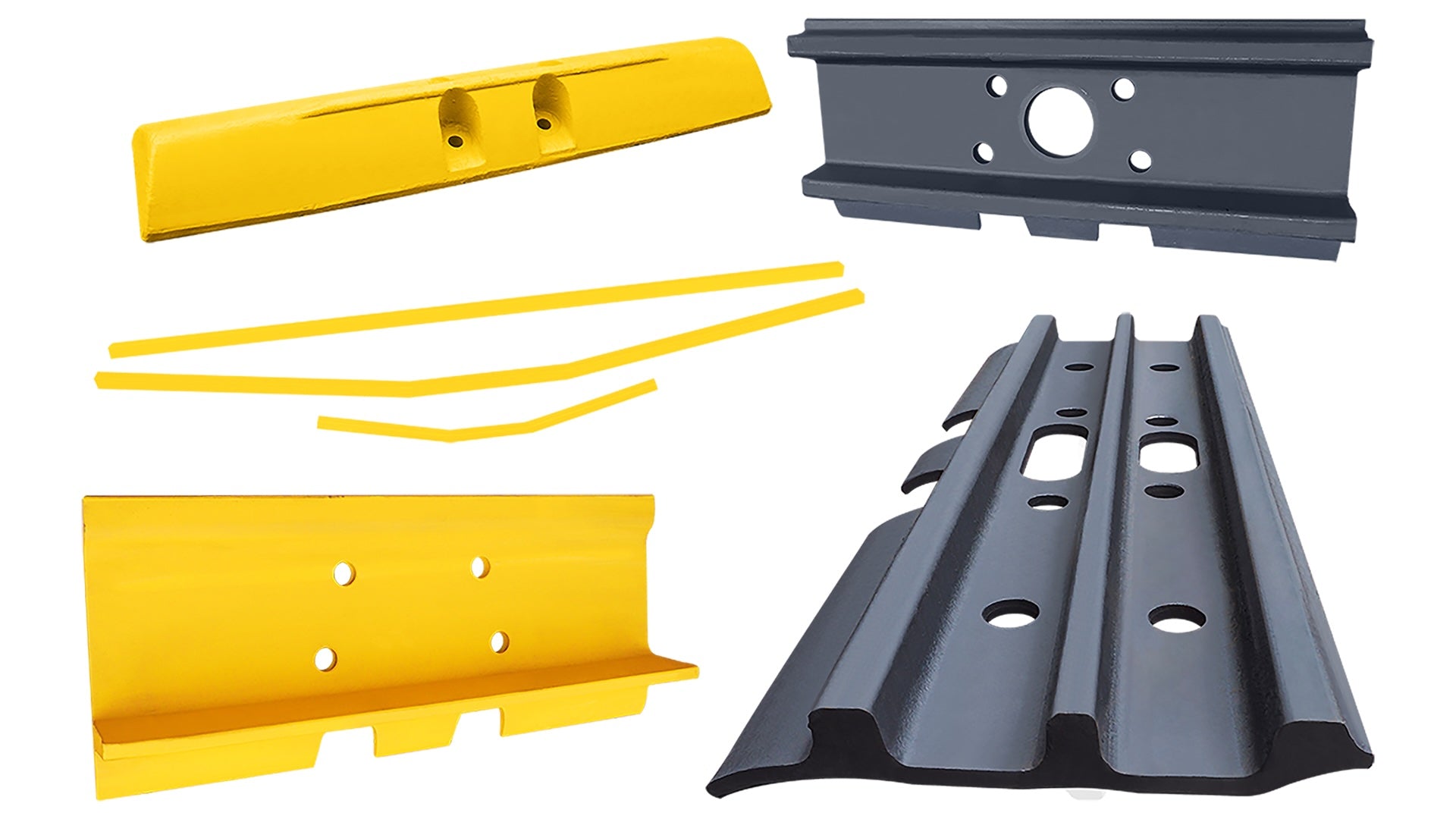

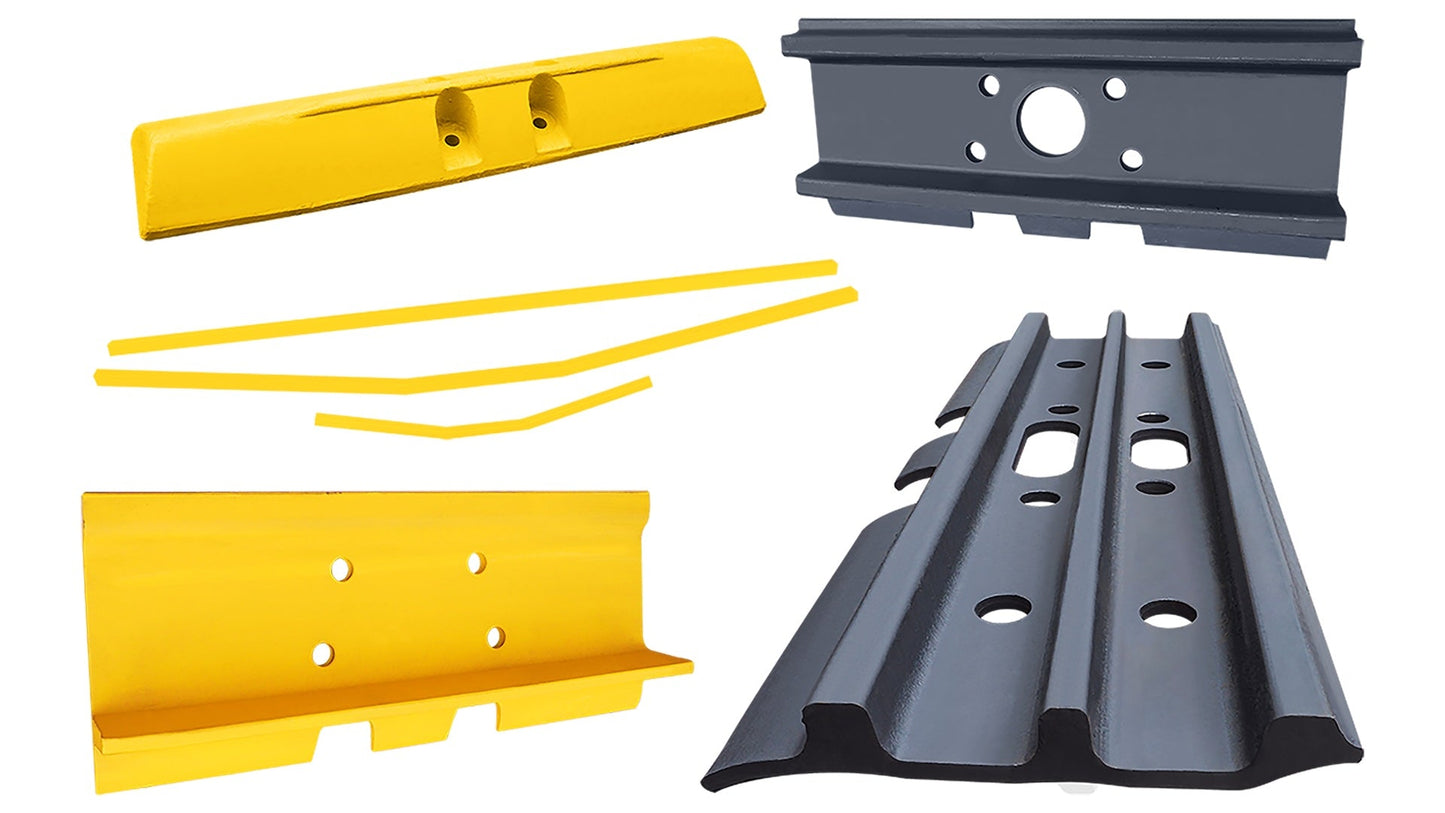

TRACK SHOE, TRIPLE - CAT EX-XL 40.0 ton~ / P215.9

Wide range of available as Japanese high quality products

Equipment : Excavator
KMVL P/N :
600mm : EX-CAT-TS216/022-600T
750mm : EX-CAT-TS216/022-750T
900mm : EX-CAT-TS216/022-900T
Manufacturer : Caterpillar MITSUBISHI
Model : 345B/345C/345D/349E
Parts number :
600mm : 150-4764
750mm : 150-4766
900mm : 150-4767
Weight :
600mm : 25.1 KGS
750mm : 31.38 KGS
900mm : 37.65 KGS

Remarks :
Length : 600mm / 750mm / 900mm
LINK PITCH : 215.9mm
Thickness : 13mm
MUD hole : YES
Bolt hole : φ24.3
Pad hole : NO
Berco :
600mm : CR6604/600
750mm : CR6604/750
900mm : CR6604/900
USCO :
ITM :
600mm : Z7640300N0600V
750mm : Z7640300N0750V
900mm : Z7640300N0900V

We will propose and provide the best way for the machine. Also, we are possible to provide our products as OEM, ODM and private brand.
If you have any questions, please do not hesitate to contact us!
