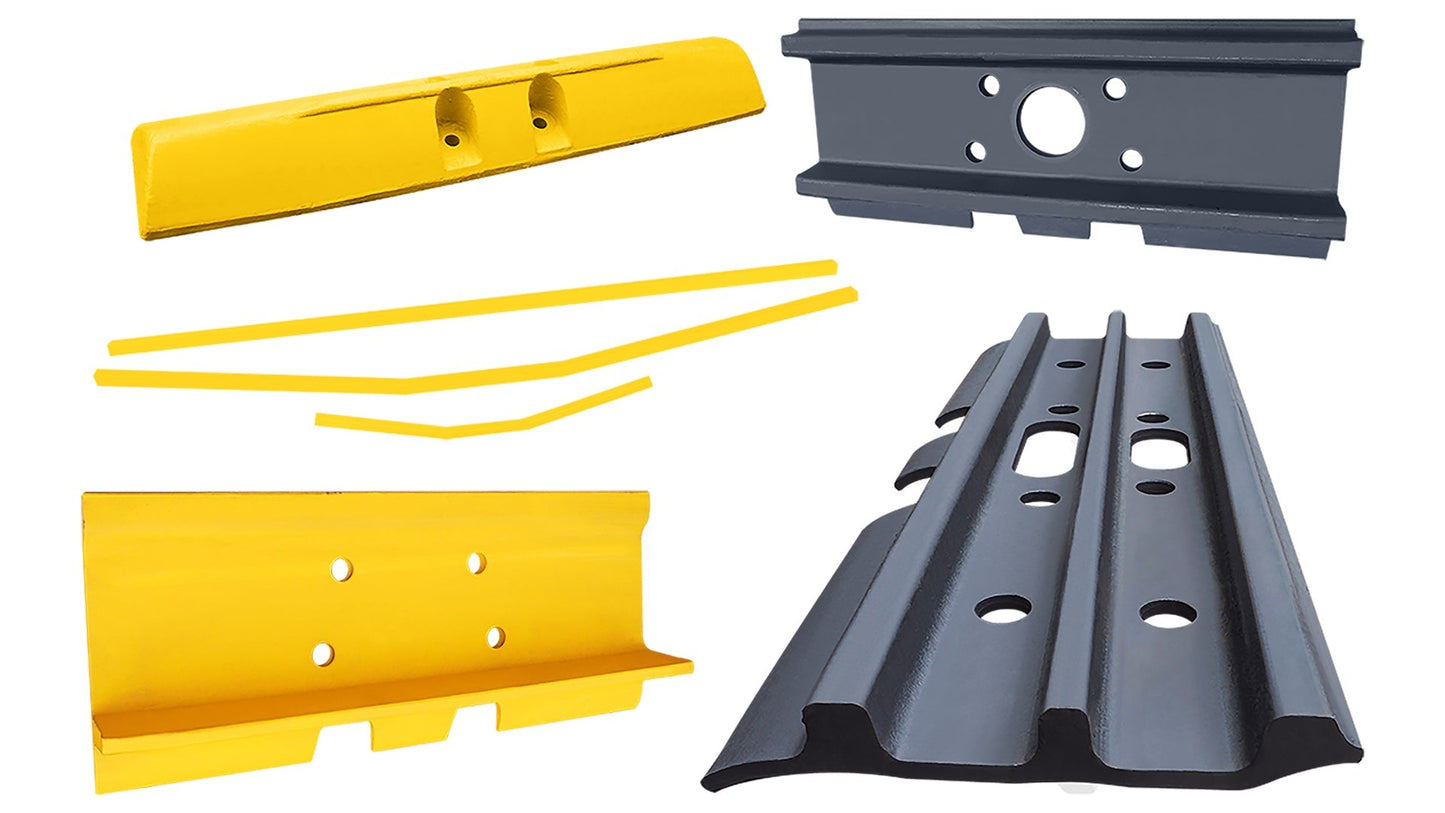

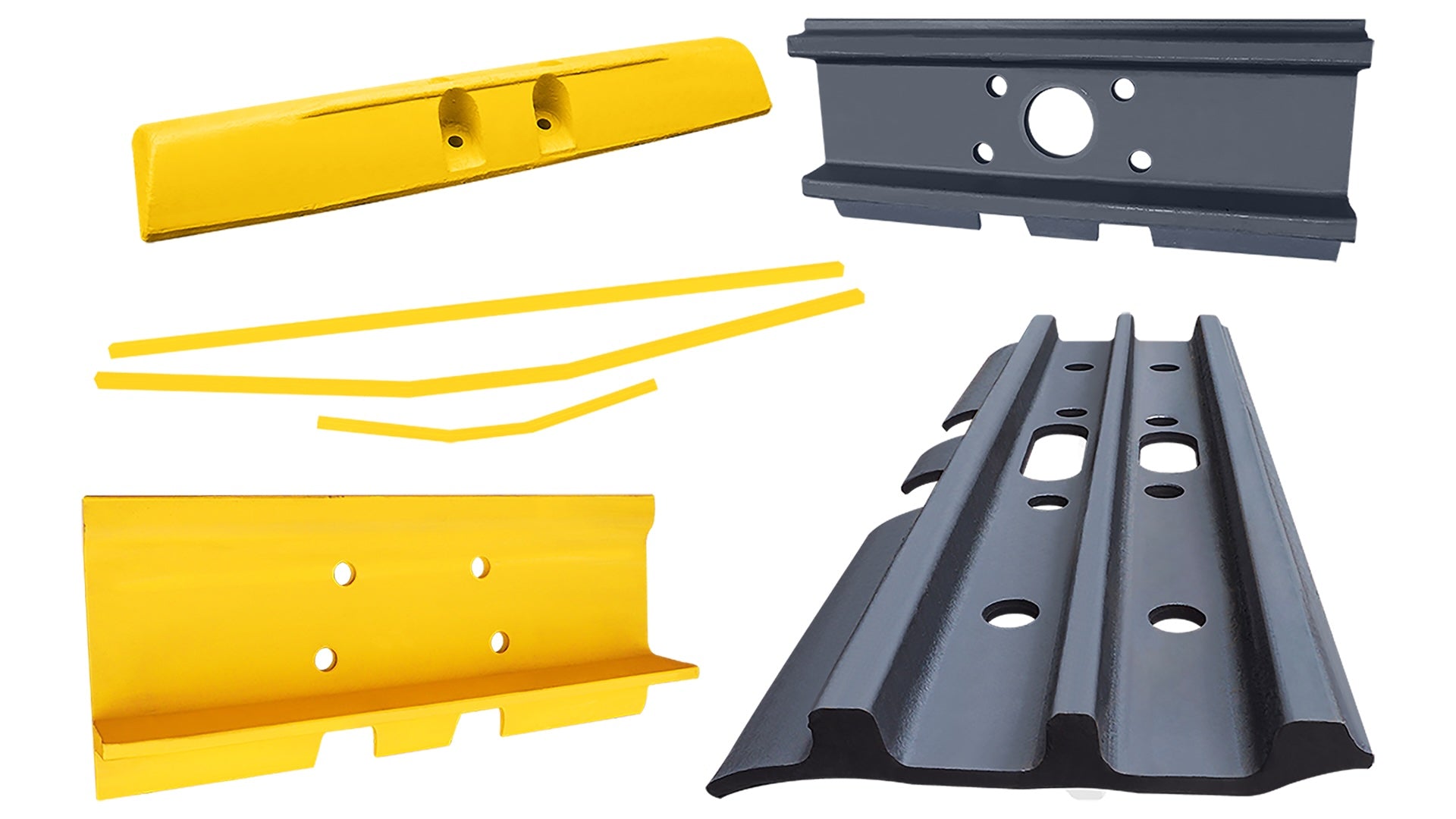

TRACK SHOE, TRIPLE [OLD] - HITACHI EX-L 20.0 tons ~ / P190

Wide range of available as Japanese high quality products

Equipment : Excavator
KMVL P/N :
500mm : EX-HIT-TS190/081-500T
600mm : EX-HIT-TS190/081-600T
700mm : EX-HIT-TS190/081-700T
800mm : EX-HIT-TS190/081-800T
Manufacturer : Hitachi
Model : EX150LC-5/EX200-2.3.5/ZX160/ZX180LC/ZX185USR/ZX200
Parts number :
500mm : 2038825
600mm : 2027982/6012582
700mm : 2037789
800mm : 2037790
Weight :
500mm : 13.0 KGS
600mm : 15.6 KGS
700mm : 18.2 KGS
800mm : 20.8 KGS

Remarks :
Length : 500mm / 600mm / 700mm / 800mm
LINK PITCH : 190mm
Thickness : 8.5mm
MUD hole : YES
Bolt hole : φ18.5
Pad hole : YES
Berco :
500mm : HT298/500
600mm : HT298/600
700mm : HT298/700
800mm : HT298/800
USCO :
ITM :
500mm : Z32123A1N0500V
600mm : Z32123A1N0600V
700mm : Z32123A1N0700V
800mm : Z32123A1N0800V

We will propose and provide the best way for the machine. Also, we are possible to provide our products as OEM, ODM and private brand.
