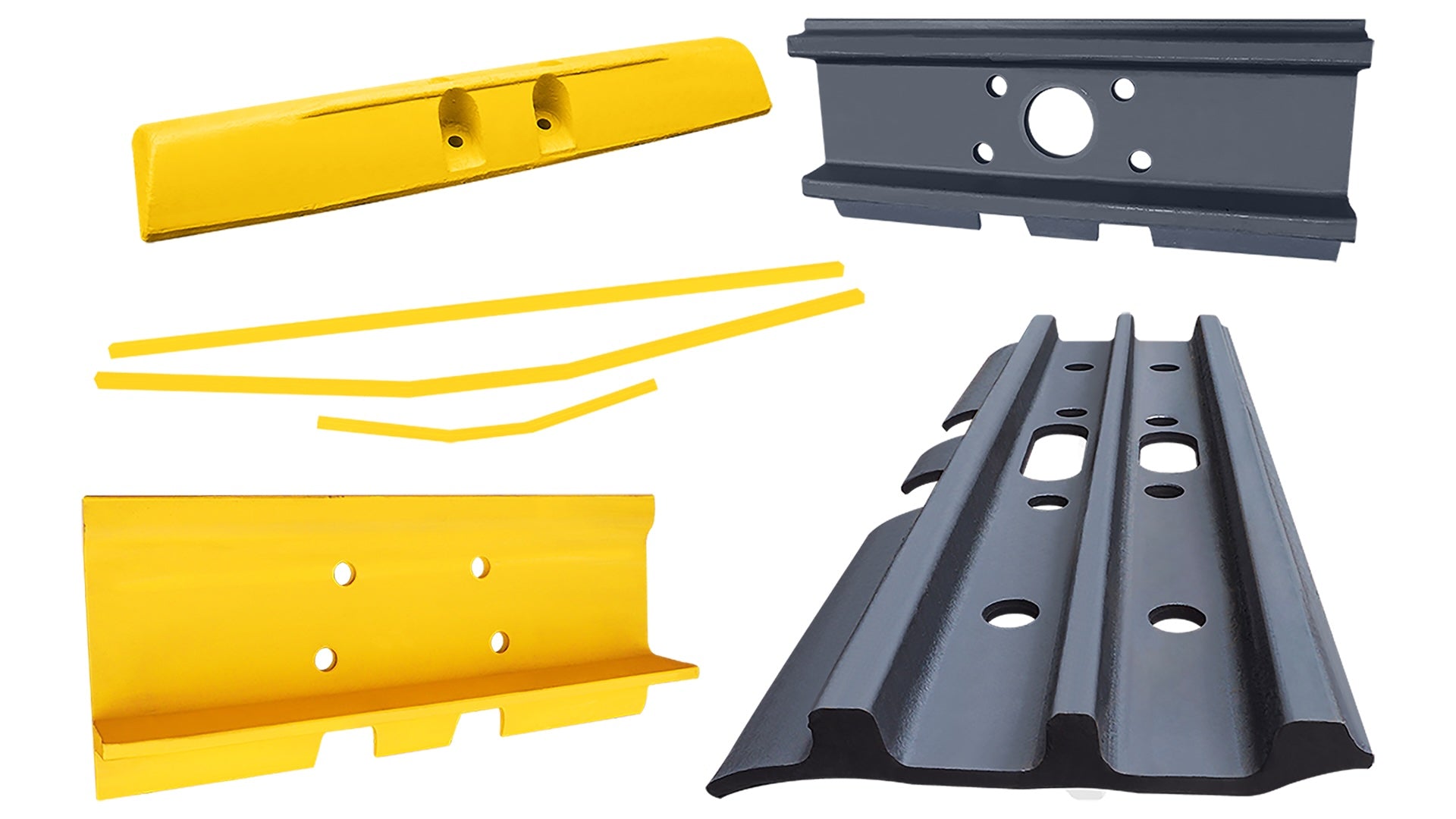

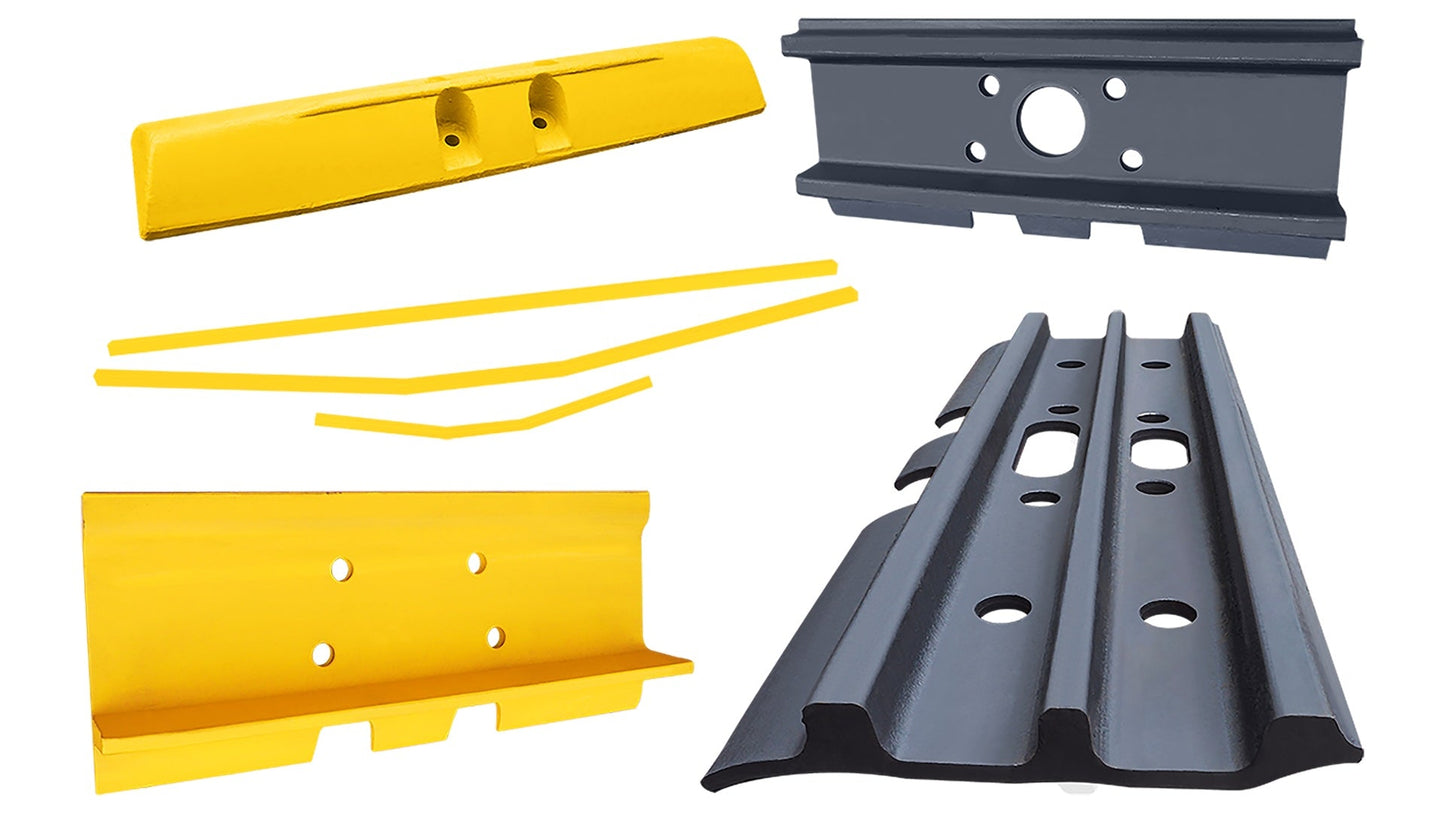

TRACK SHOE, TRIPLE - KOBELCO EX-MD 10.0 tons ~ / P171.45

Wide range of available as Japanese high quality products

Equipment : Excavator
KMVL P/N :
500mm : EX-KOB-TS171/041-500T
600mm : EX-KOB-TS171/041-600T
700mm : EX-KOB-TS171/041-700T
Manufacturer : Kobelco
Model :
[Excavator]
SK100-1.2.3/SK115SR/SK120-1.2.3/SK130-8/SK125SR/SK130UR-1.2.3/SK135SR-1.2.3
Parts number :
500mm : 2424N104D1/YW60D00004P1
600mm : 2424N104D2/2424N240
700mm : 2424N240D2
Weight :
500mm : 8.84 KGS
600mm : 10.69 KGS
700mm : 12.6 KGS

Remarks :
Length : 500mm / 600mm / 700mm
LINK PITCH : 171.45mm
Thickness : 8mm
MUD hole : YES
Bolt hole : φ16.2
Pad hole : YES(500mm/600mm only)
Berco :
500mm : CR4835/500
600mm : CR4835/600
700mm : CR4835/700
USCO :
ITM :
500mm : Z15493A0N0500V
600mm : Z15493A0N0600V
700mm : Z15493A0N0700V

We will propose and provide the best way for the machine. Also, we are possible to provide our products as OEM, ODM and private brand.
If you have any questions, please do not hesitate to contact us!
