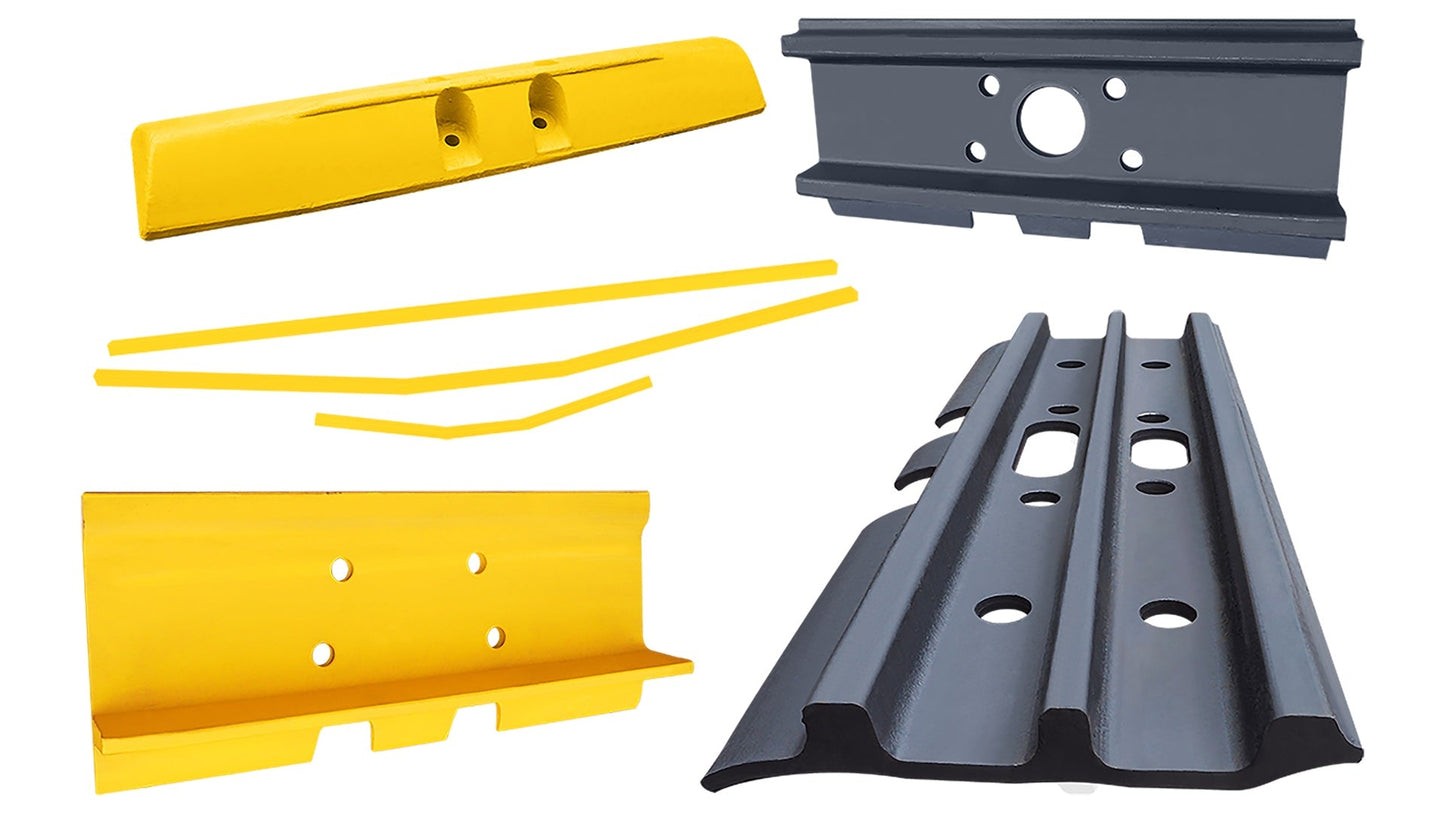

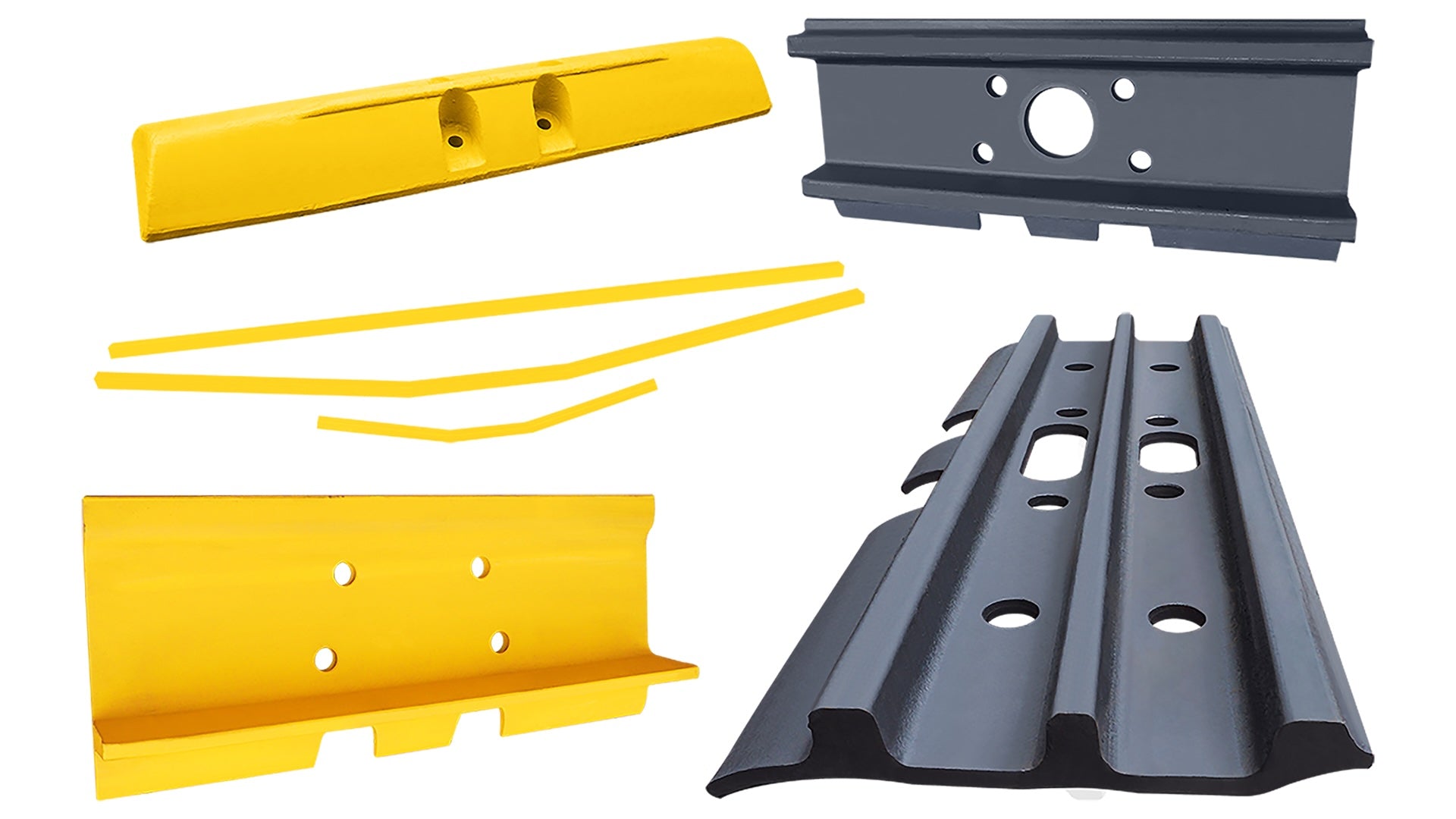

TRACK SHOE, TRIPLE [NEW] - KOMATSU EX-MD 10.0 tons ~ / P175

Wide range of available as Japanese high quality products

Equipment : Excavator / Others
KMVL P/N :
500mm : EX-KOM-TS175/041-500TN
600mm : EX-KOM-TS175/041-600TN
700mm :
Manufacturer : Komatsu
Model :
[Excavator]
PC100-6/PC120-6.8.11/PC128US-2.8/PC128UU-2.8/PC130-6.8.11/PC138US-2.8
[Others]
BR200T-1.2.3/BZ210-1.3
Parts number :
500mm : 203-32-51540/203-32-51461
600mm : 203-32-51470/203-32-51310
700mm : 203-32-51480
Weight :
500mm : 9.9 KGS
600mm : 12 KGS
700mm : 14.15 KGS

Remarks :
Length : 500mm / 600mm / 700mm
LINK PITCH : 175mm
Thickness : 9.5mm
MUD hole : YES
Bolt hole : φ16.3
Pad hole : YES
Berco :
USCO :
ITM :

We will propose and provide the best way for the machine. Also, we are possible to provide our products as OEM, ODM and private brand.
If you have any questions, please do not hesitate to contact us!
