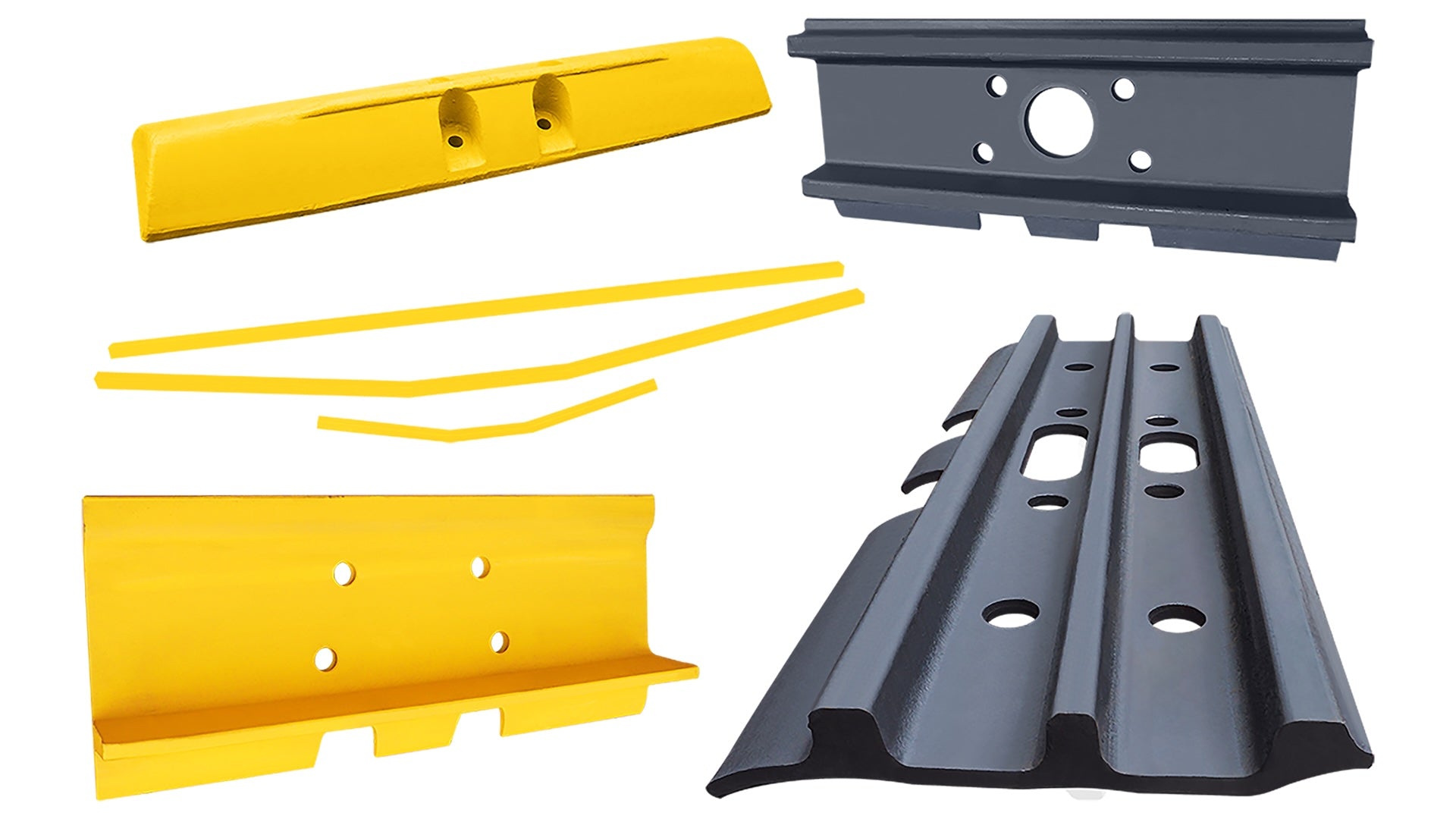

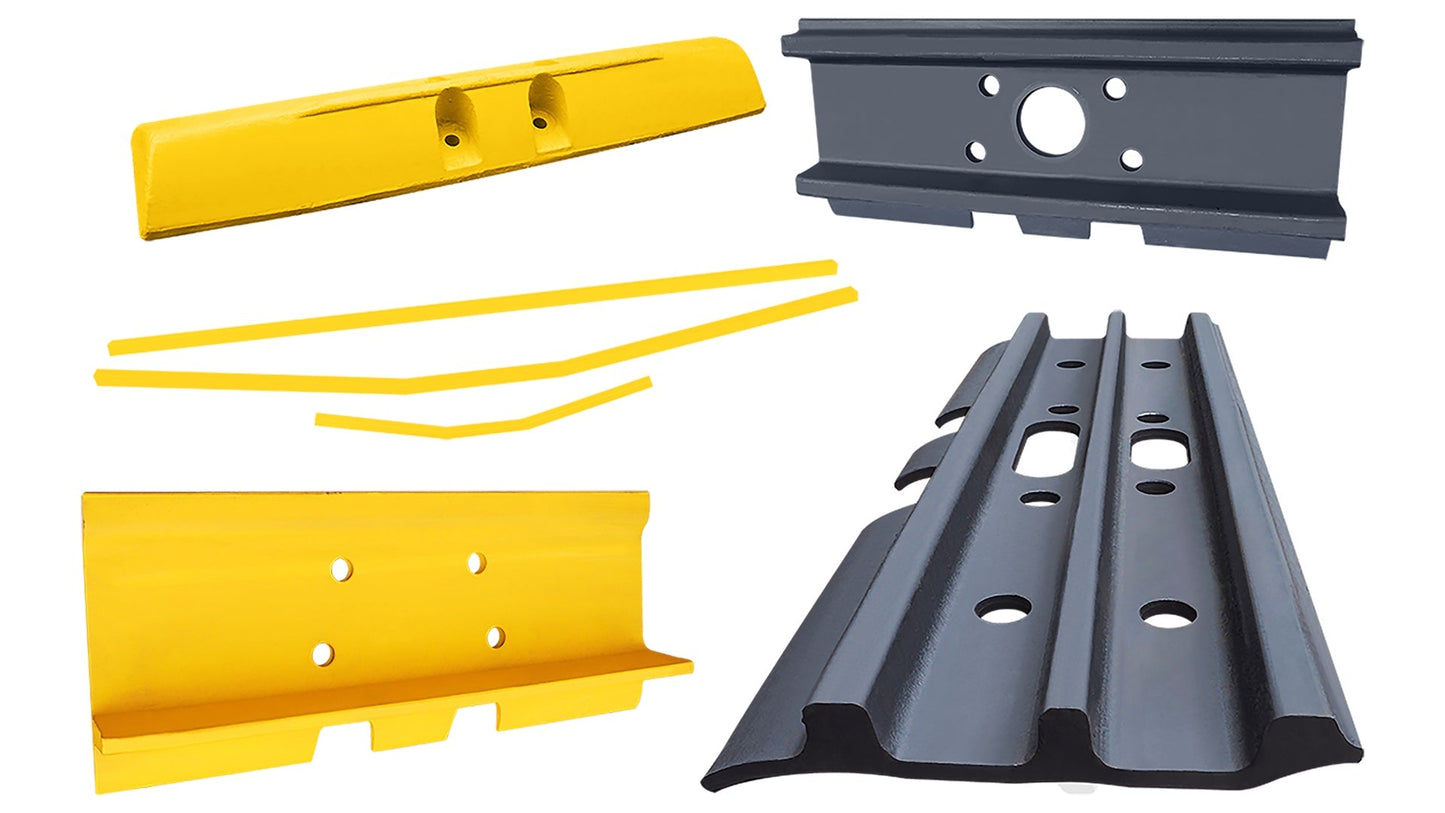

TRACK SHOE, TRIPLE [OLD] - KOMATSU EX-MD 10.0 tons ~ / P175

Wide range of available as Japanese high quality products

Equipment : Excavator / Others
KMVL P/N :
500mm : EX-KOM-TS175/051-500TO
600mm : EX-KOM-TS175/051-600TO
700mm : EX-KOM-TS175/051-700TO
Manufacturer : Komatsu
Model :
[Excavator]
PC100-5/PC120-5/PC128US-1.2/PC128UU-1.2/PC130-6/PC138US-2
[Others]
BR200T-1.2/BR210JG-1/BM020C-1/BZ200-1/BZ210-1/CL60-2/CS210-1
Parts number :
500mm : 203-32-51110
600mm : 203-32-51310
700mm : 203-32-51320
Weight :
500mm : 9.9 KGS
600mm : 12 KGS
700mm : 14.15 KGS

Remarks :
Length : 500mm / 600mm / 700mm
LINK PITCH : 175mm
Thickness : 8mm
MUD hole : YES
Bolt hole : φ16.3
Pad hole : YES
Berco :
500mm : KM1263/500
600mm : KM1263/600
700mm : KM1263/700
USCO :
ITM :
500mm : Z4012300N0500V
600mm : Z4012300N0600V
700mm : Z4012300N0700V

We will propose and provide the best way for the machine. Also, we are possible to provide our products as OEM, ODM and private brand.
If you have any questions, please do not hesitate to contact us!
