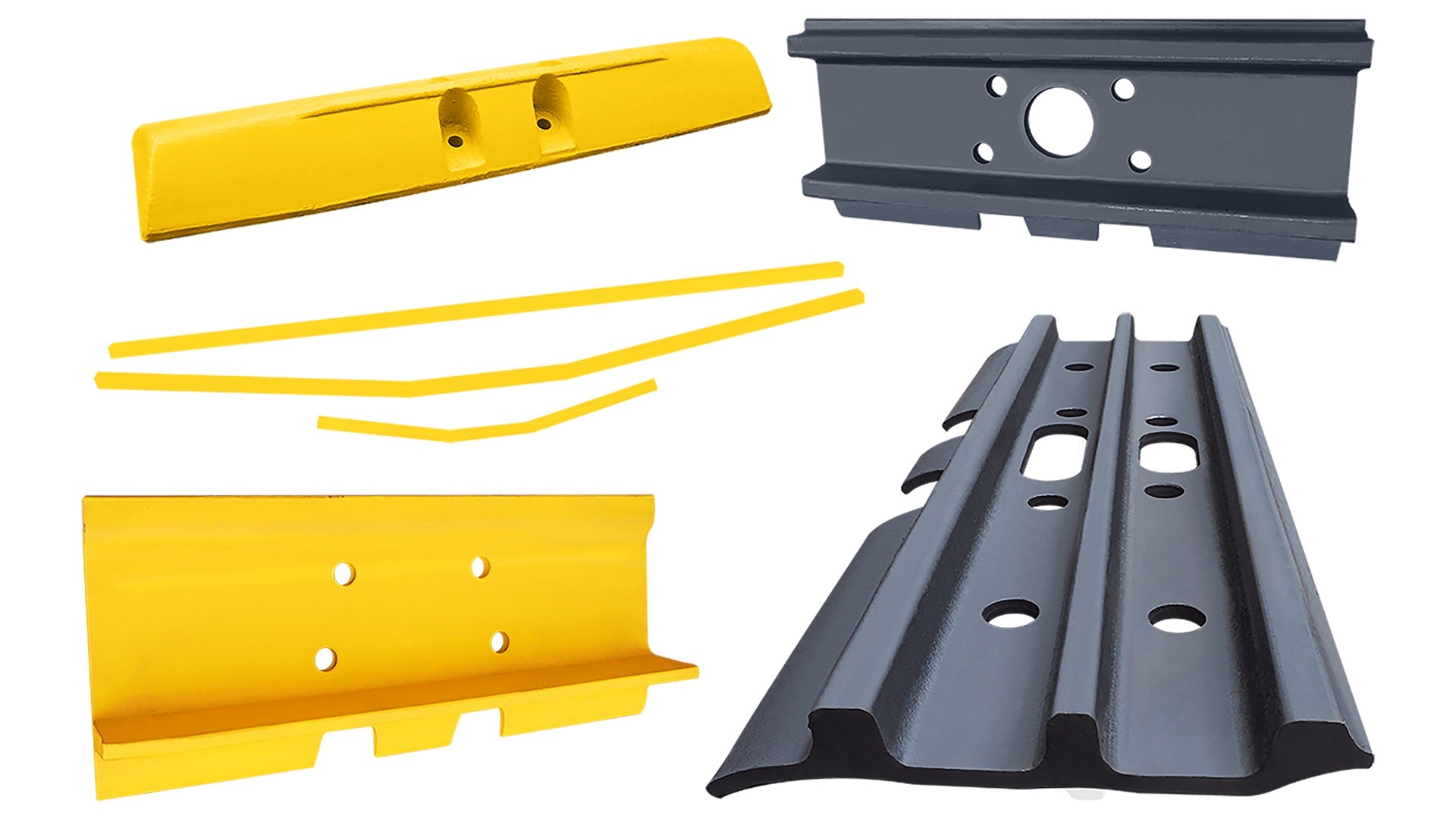

TRACK SHOE, TRIPLE [H/D] - KOMATSU EX-L 20.0 tons ~ / P190

Wide range of available as Japanese high quality products

Equipment : Excavator
KMVL P/N :
600mm : EX-KOM-TS190/121-600T-HD
700mm : EX-KOM-TS190/121-700T-HD
800mm : EX-KOM-TS190/121-800T-HD
Manufacturer : Komatsu
Model : PC160LC-7.8/PC170LC-11/PC200-6.7.8.10/PC210-6.7.8.10/PC220-6.7.8.10/PC220-6.7.8.10/PC228US-2.3.8.10/PC230-7.8.10/HB205-1.2.3/HB215-2.3
Parts number :
600mm : 20Y-32-61110
700mm : 20Y-32-31310
800mm : 20Y-32-31320
Weight :
600mm : 16.54 KGS
700mm : 19.3 KGS
800mm : 22.05 KGS

Remarks :
Length : 600mm / 700mm / 800mm
LINK PITCH : 190mm
Thickness : 10mm
MUD hole : YES
Bolt hole : φ20.3
Pad hole : NO
Berco :
USCO :
ITM :

We will propose and provide the best way for the machine. Also, we are possible to provide our products as OEM, ODM and private brand.
If you have any questions, please do not hesitate to contact us!
