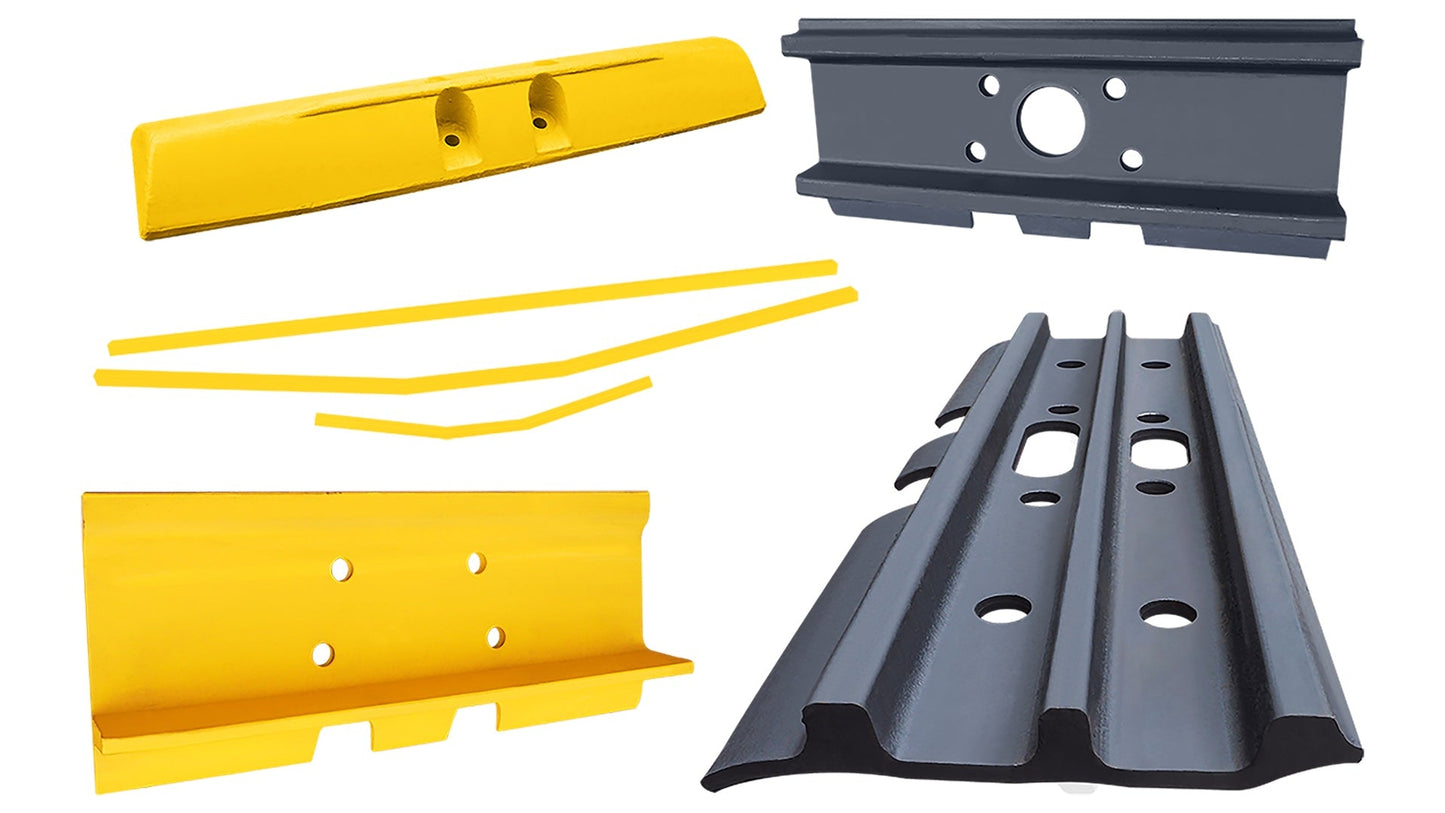

TRACK SHOE, TRIPLE [OLD] - KOMATSU EX-XL 40.0 tons~ / P215.9

Wide range of available as Japanese high quality products

Equipment : Excavator
KMVL P/N :
600mm : EX-KOM-TS216/022-600T
700mm : EX-KOM-TS216/022-700T
750mm : EX-KOM-TS216/022-750T
800mm : EX-KOM-TS216/022-800T
900mm : EX-KOM-TS216/022-900T
Manufacturer : Komatsu
Model : PC400-3.5/PC400LC-3.5/PC410-5/PC410LC-5
Parts number :
600mm : 208-32-51111/208-32-51112
700mm : 208-32-51311/208-32-51312
750mm : 208-32-51340/208-32-51341
800mm : 208-32-51320/208-32-51321
900mm : 208-32-51330/208-32-51331
Weight :
600mm : 25.1 KGS
700mm : 29.28 KGS
750mm : 31.38 KGS
800mm : 33.47 KGS
900mm : 37.65 KGS

Remarks :
Length : 600mm / 700mm / 750mm / 800mm / 900mm
LINK PITCH : 215.9mm
Thickness : 13mm
MUD hole : YES
Bolt hole : φ24.3
Pad hole : NO
Berco :
600mm : CR6604/600
700mm : CR6604/700
750mm : CR6604/750
800mm : CR6604/800
900mm : CR6604/900
USCO :
ITM :
600mm : Z7640300N0600V
700mm : Z7640300N0700V
750mm : Z7640300N0750V
800mm : Z7640300N0800V
900mm : Z7640300N0900V

We will propose and provide the best way for the machine. Also, we are possible to provide our products as OEM, ODM and private brand.
If you have any questions, please do not hesitate to contact us!
