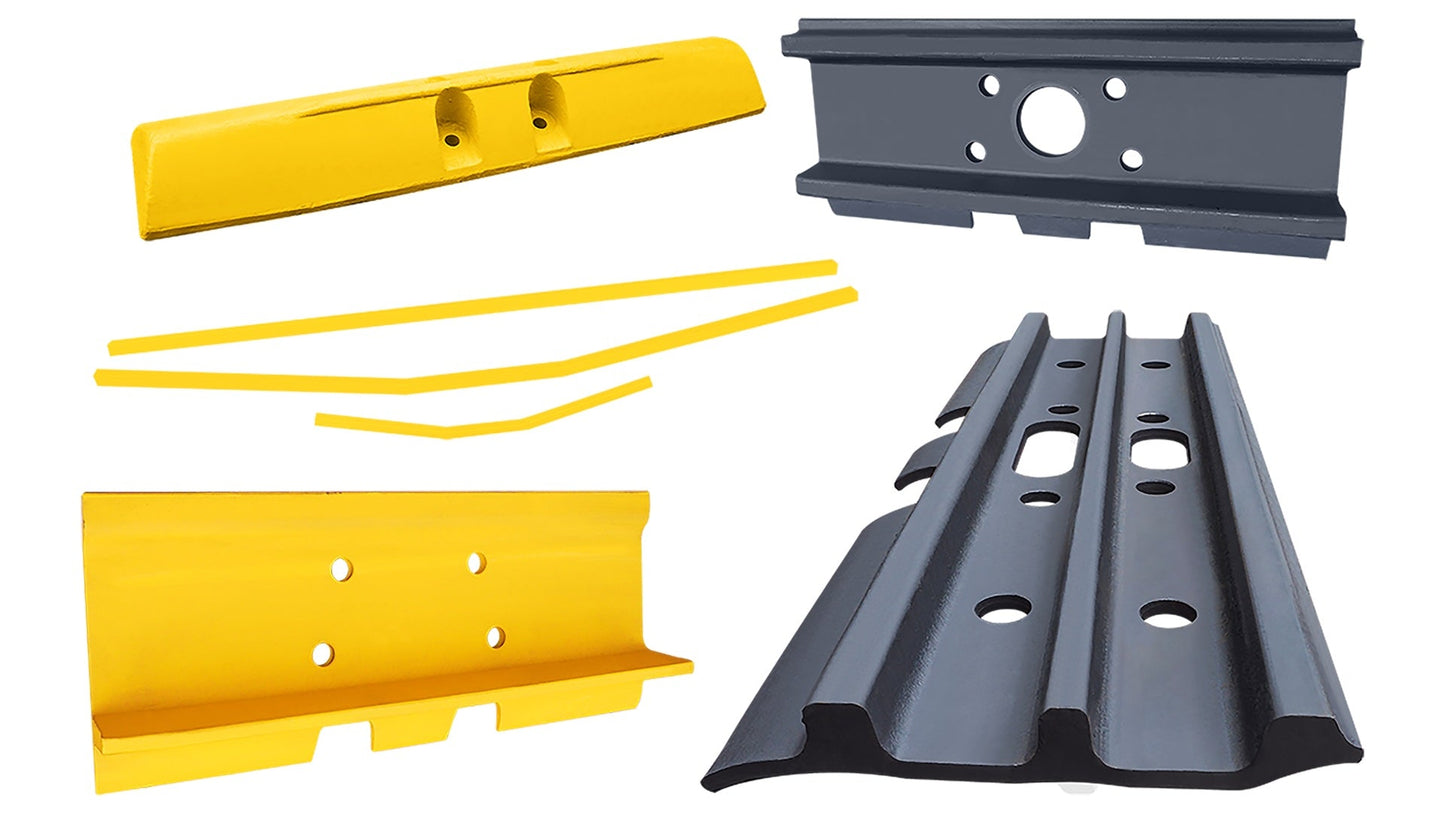

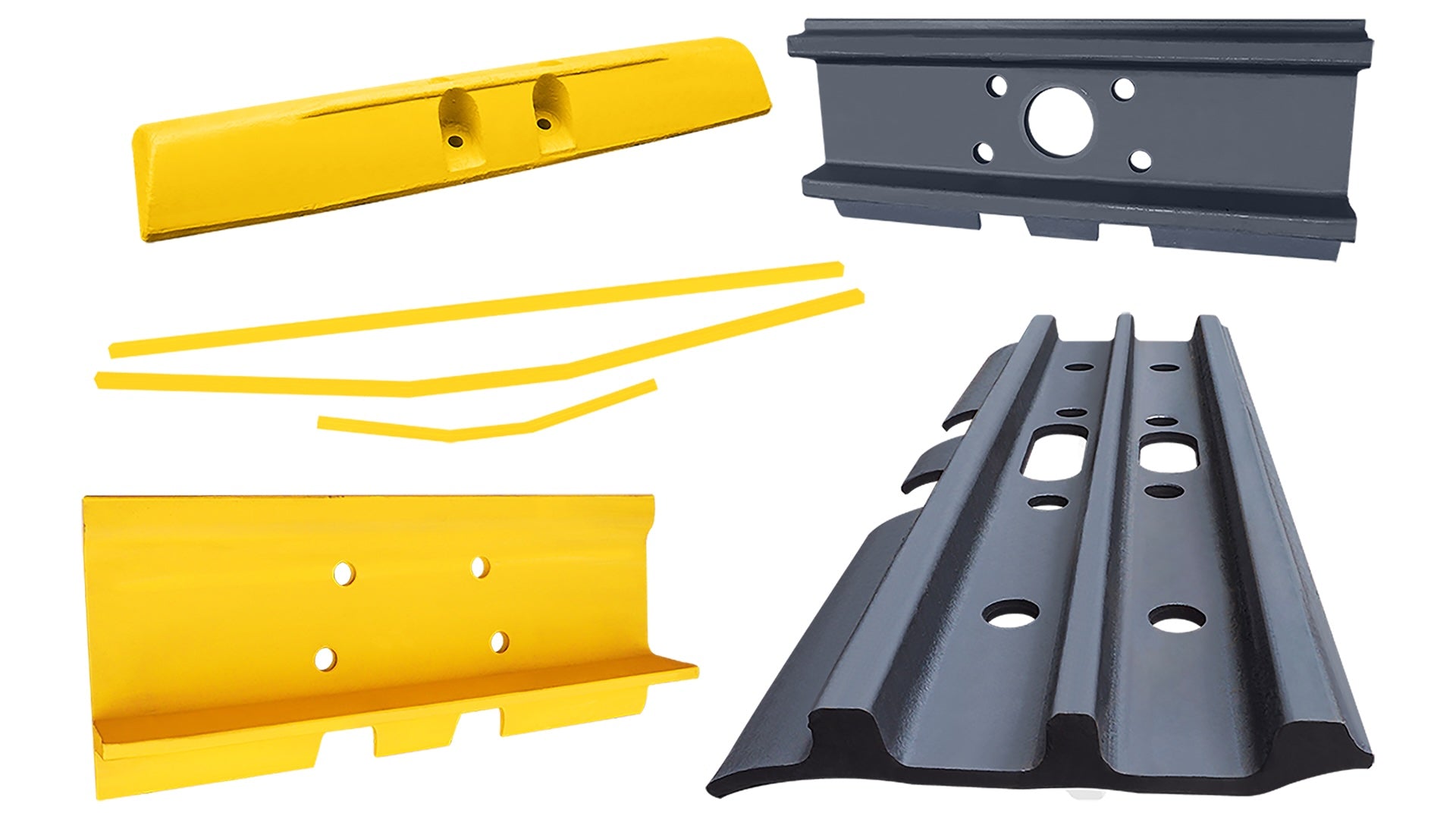

TRACK SHOE, TRIPLE [NEW] - KOMATSU EX-XL 30.0 tons ~ / P215.9

Wide range of available as Japanese high quality products

Equipment : Excavator
KMVL P/N :
600mm : EX-KOM-TS216/061-600T
700mm : EX-KOM-TS216/061-700T
800mm : EX-KOM-TS216/061-800T
Manufacturer : Komatsu
Model : PC270-7/PC300-6.7.8.10/PC350-7.8.10/HB335-3/HB365-3
Parts number :
600mm : 207-32-61110/207-32-62100
700mm : 207-32-61310
800mm : 207-32-61320
Weight :
600mm : 21.03 KGS
700mm : 24.15 KGS
800mm : 30.9 KGS

Remarks :
Length : 600mm / 700mm / 800mm
LINK PITCH : 215.9mm
Thickness : 11mm
MUD hole : YES
Bolt hole : φ22.3
Pad hole : NO
Berco :
600mm : KM2118/600
700mm : KM2118/700
800mm : KM2118/800
USCO :
ITM :
600mm : Z40303M0N0600V
700mm : Z40303M0N0700V
800mm : Z40303M0N0800V

We will propose and provide the best way for the machine. Also, we are possible to provide our products as OEM, ODM and private brand.
